Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 16 illustrations

Illustrations

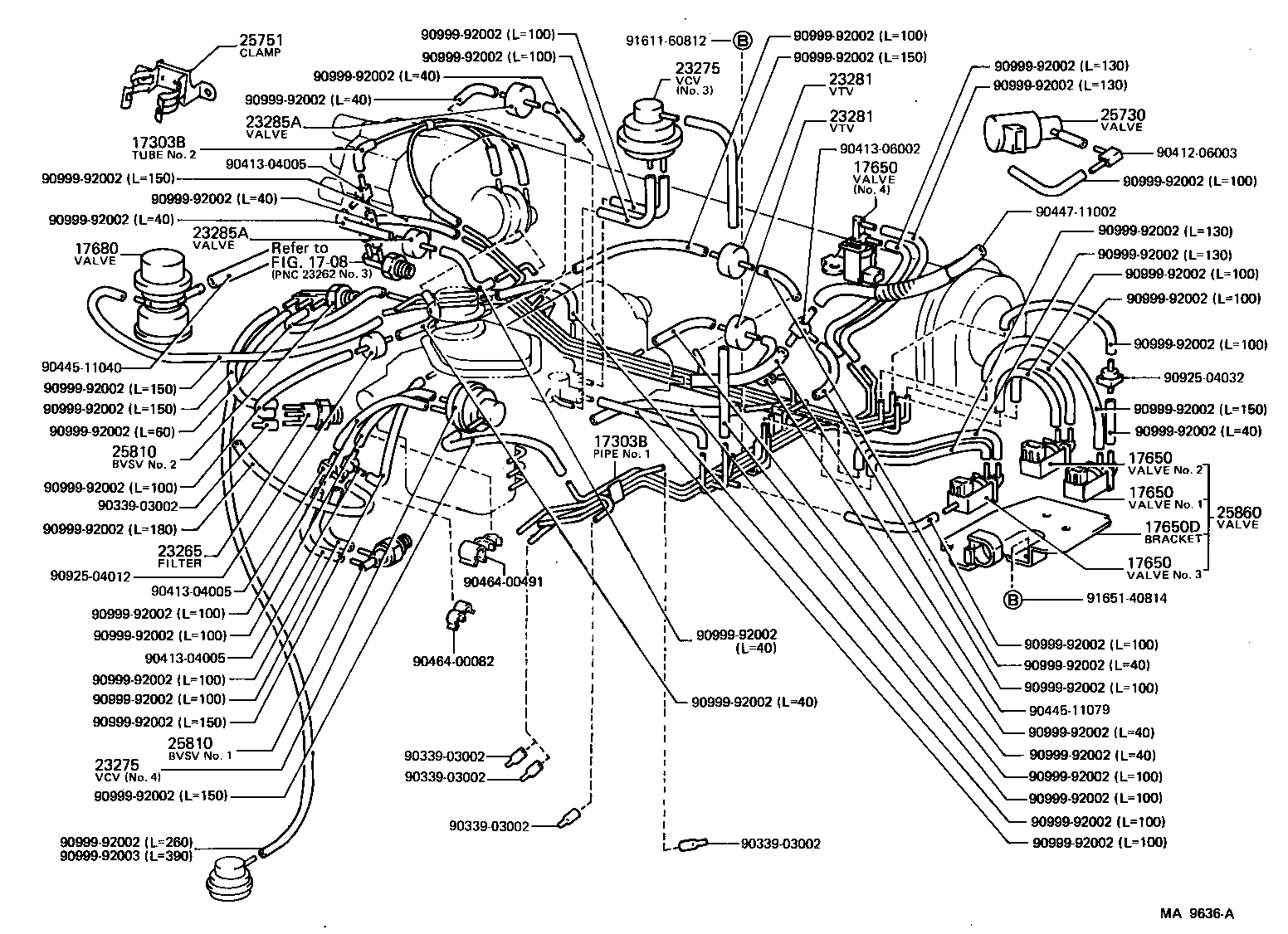

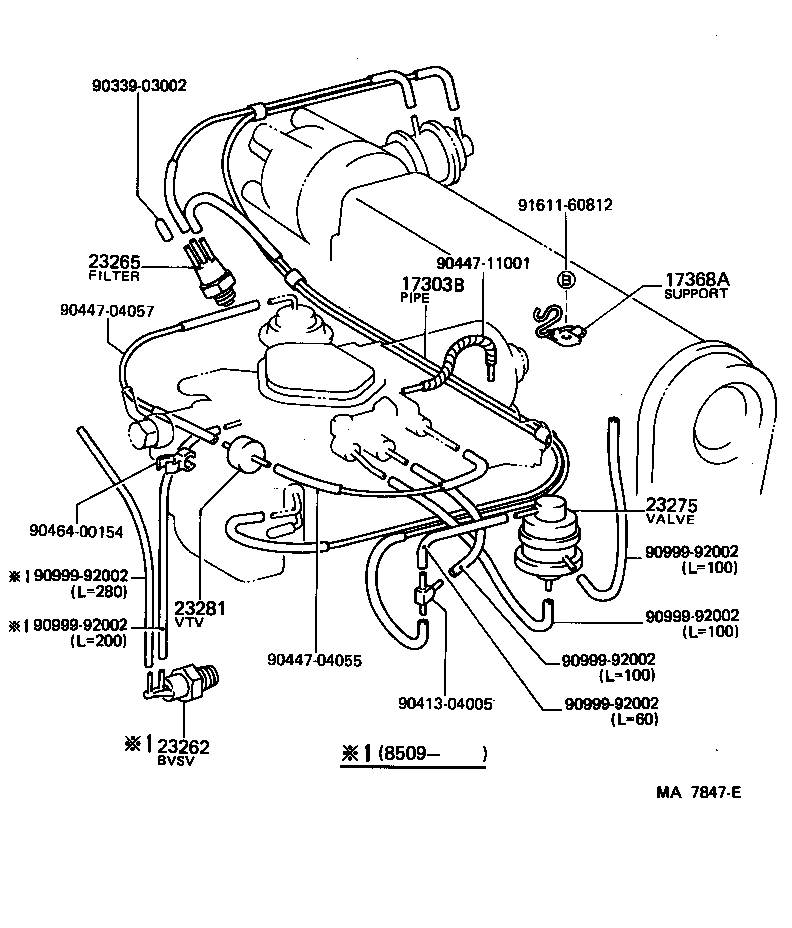

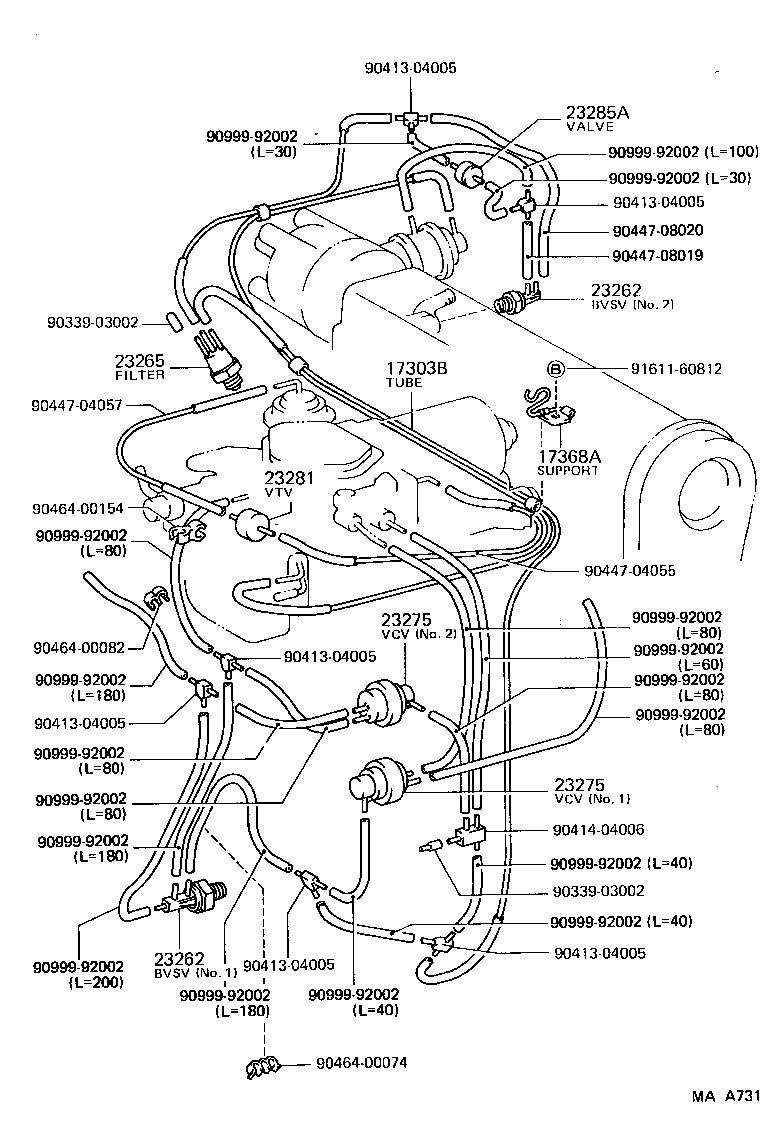

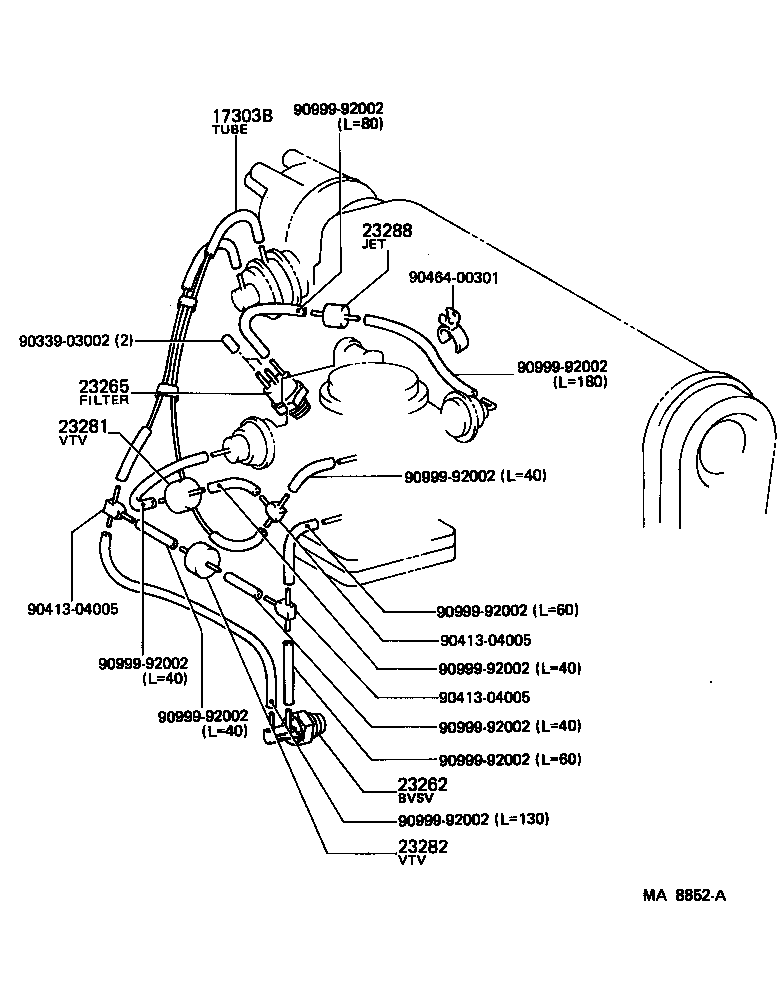

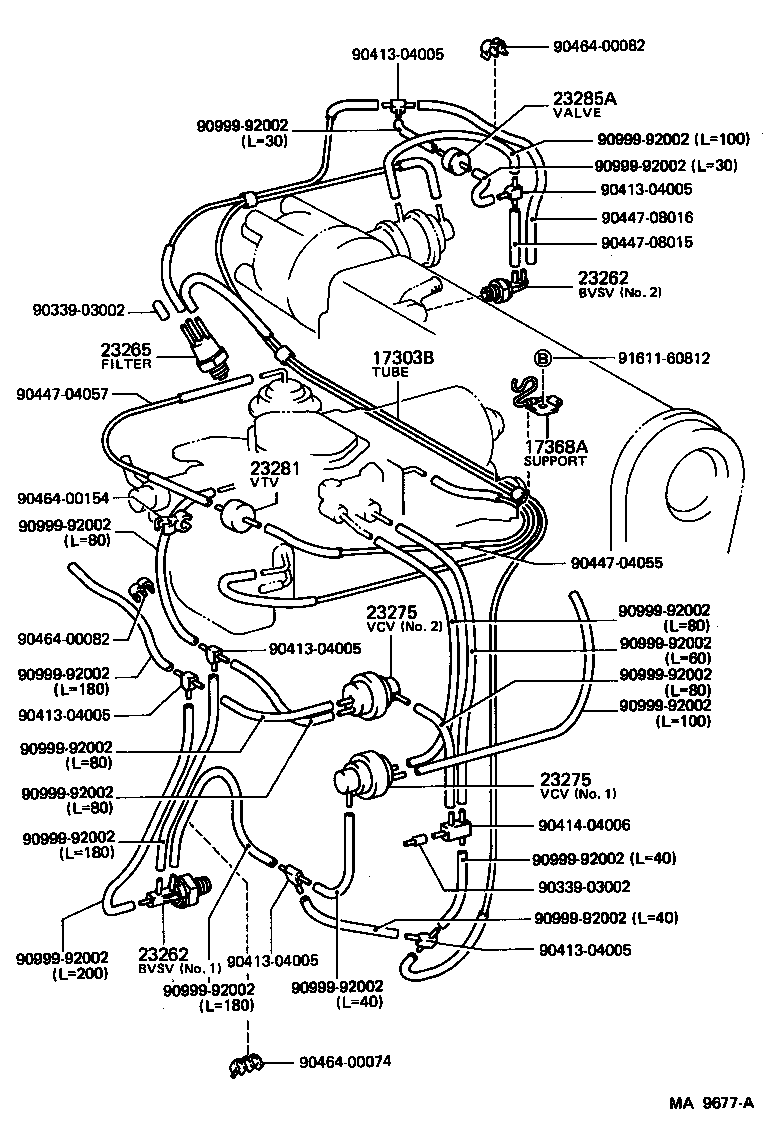

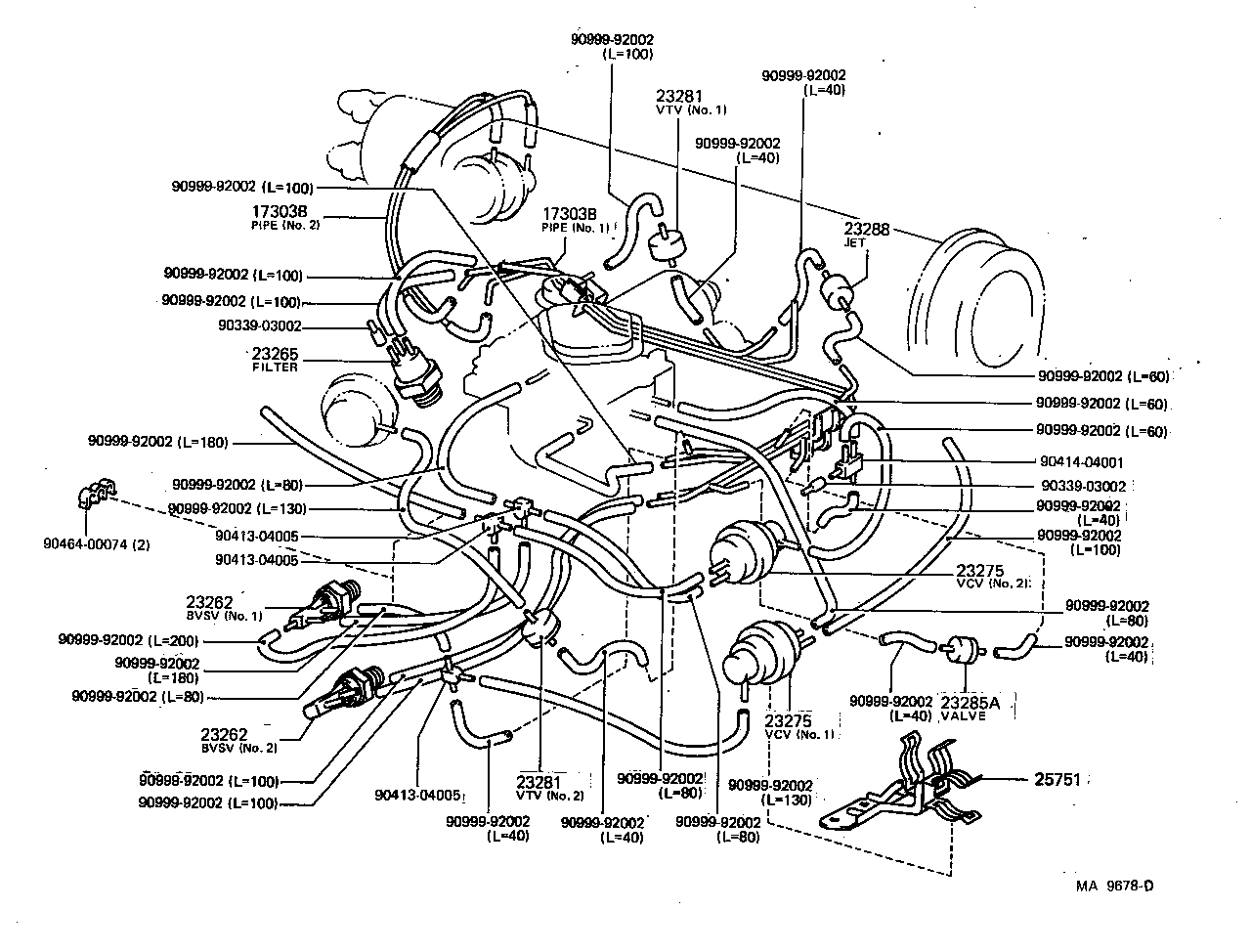

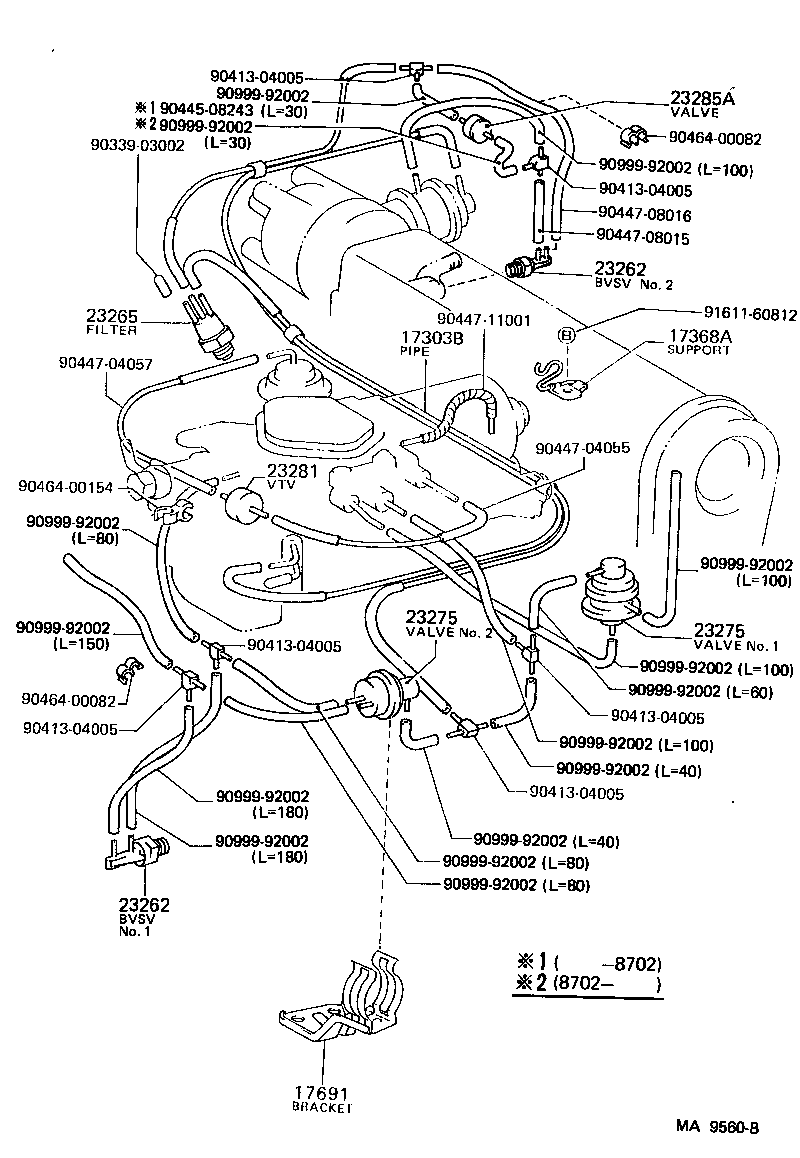

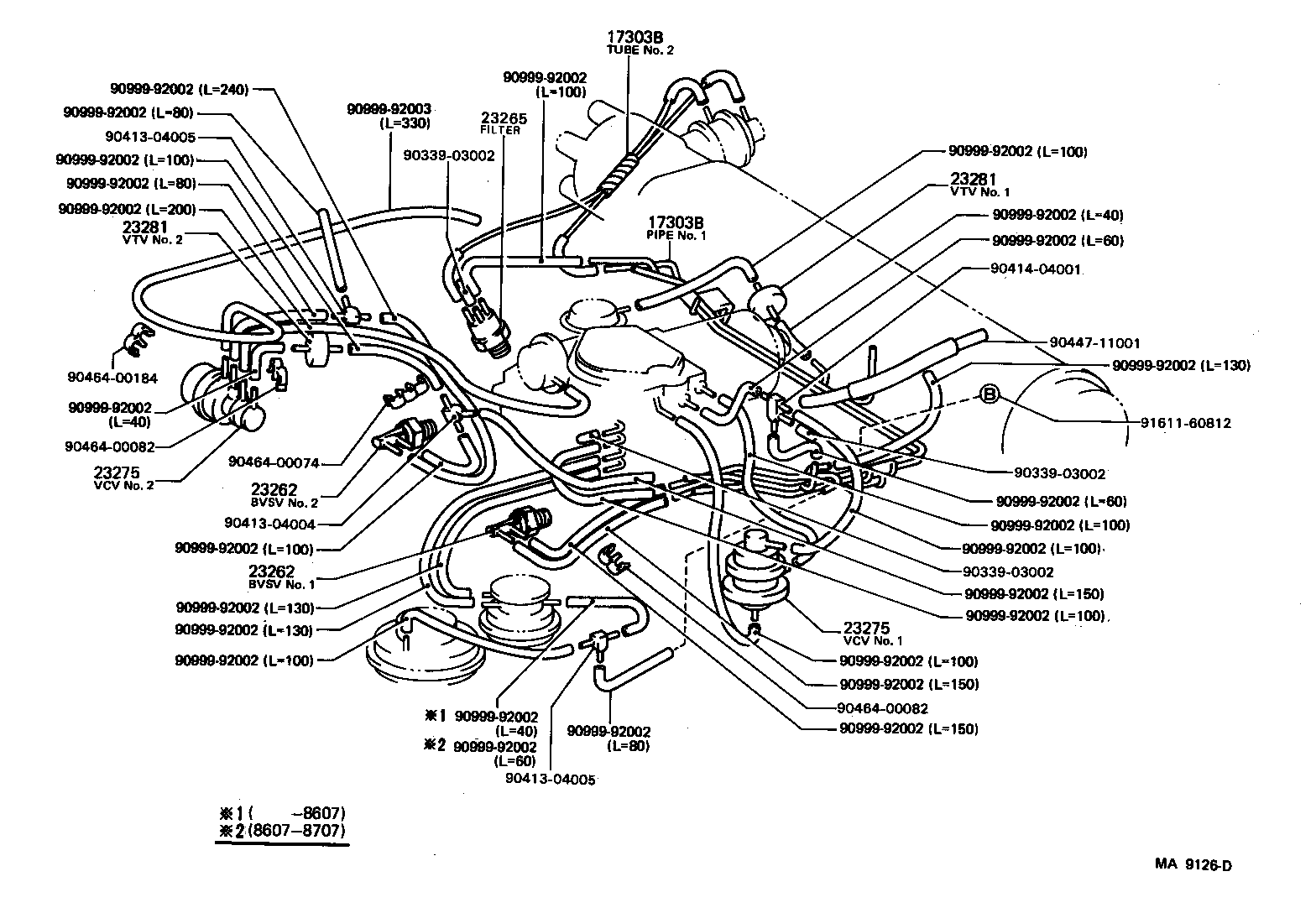

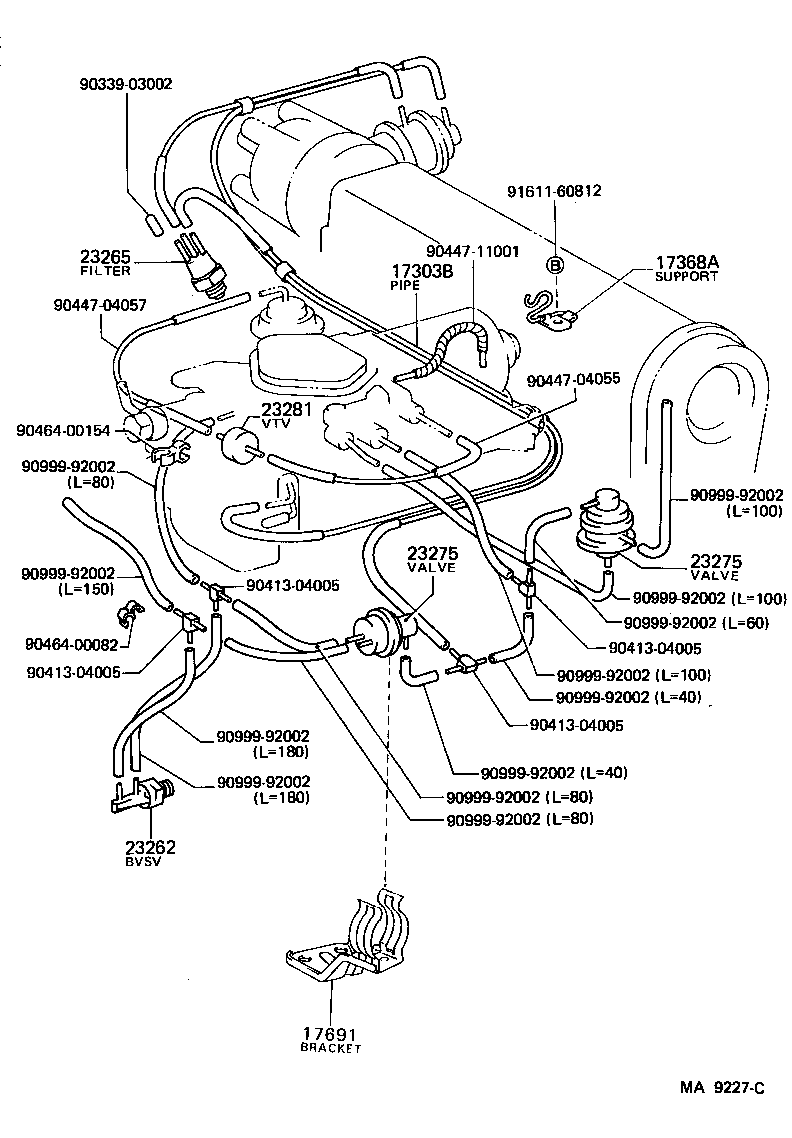

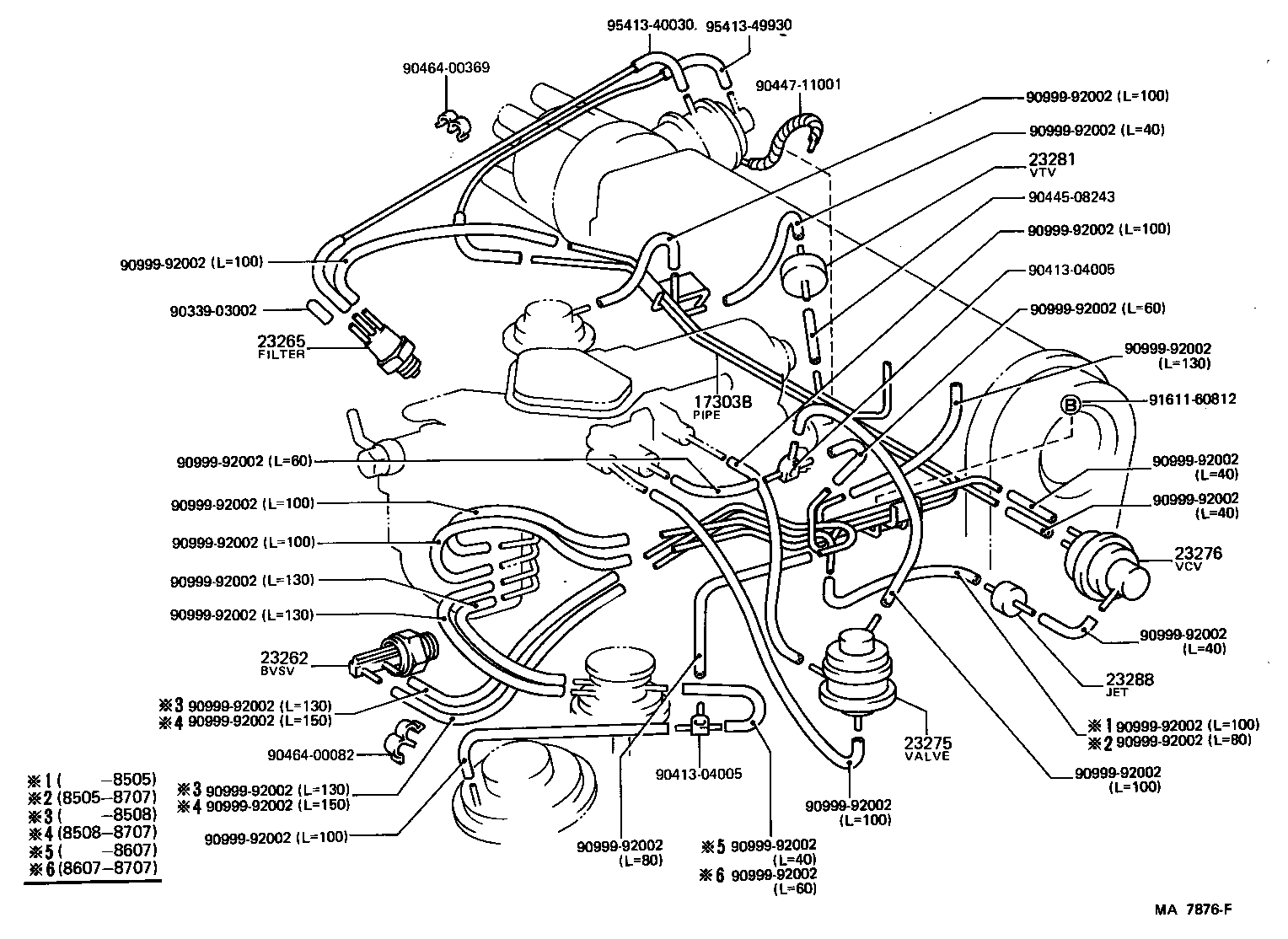

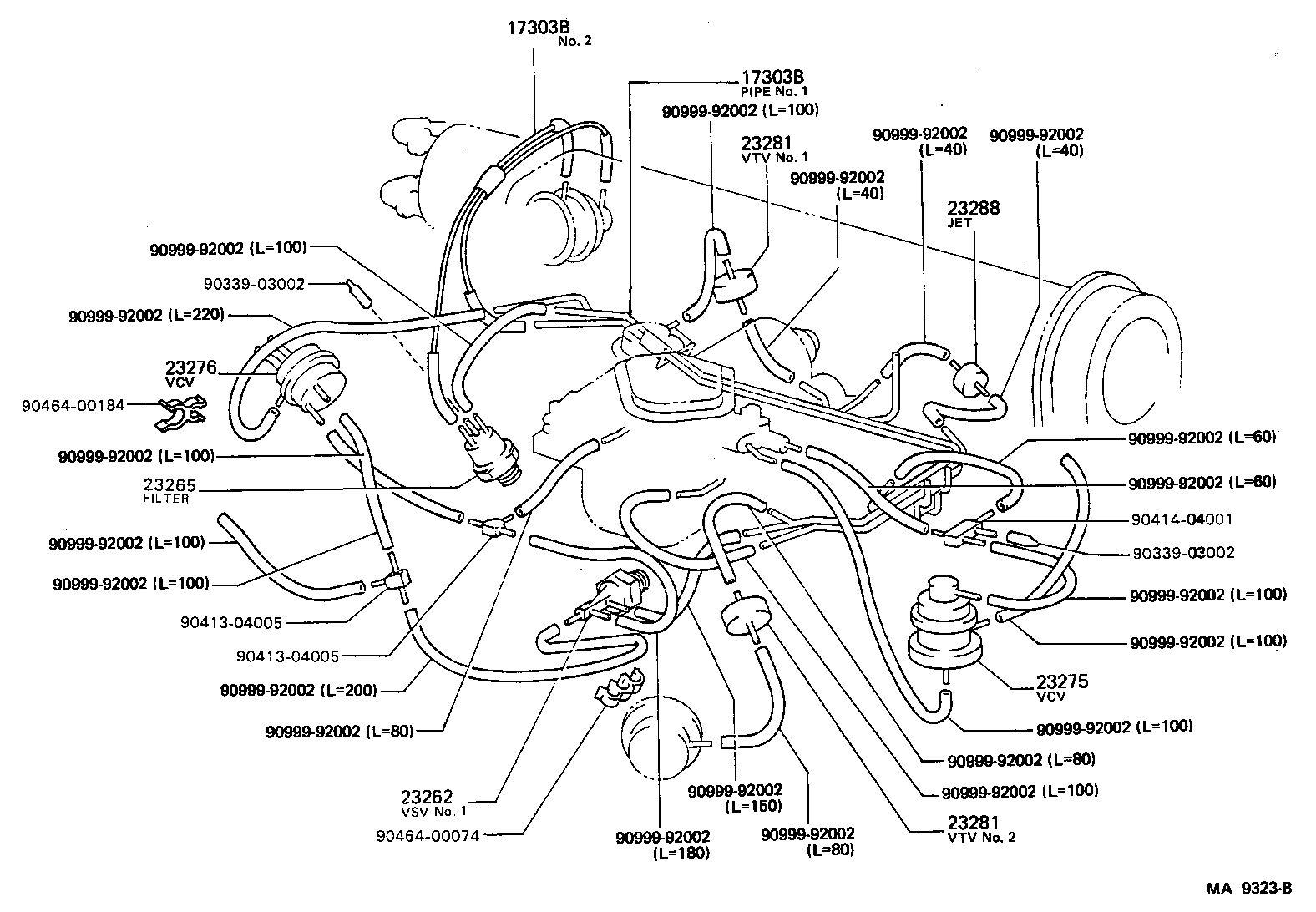

Figure MA9504B MA9504B 1984-10 → — Figure MA7881D MA7881D 1984-10 → — Figure MA8852A MA8852A 1985-12 → — Figure MA7847E MA7847E 1984-10 → 1986-05 Figure MA9227C MA9227C 1986-05 → 1986-10 Figure MA9560B MA9560B 1986-10 → 1987-05 Figure MA9677A MA9677A 1987-05 → 1987-11 Figure MAA731 MAA731 1987-11 → — Figure MA7876F MA7876F 1984-10 → 1986-08 Figure MA7876F MA7876F 1986-08 → 1987-07 Figure MA9126D MA9126D 1986-08 → 1987-07 Figure MA9636A MA9636A 1987-07 → — Figure MA9323B MA9323B 1986-05 → 1987-05 Figure MA9678D MA9678D 1987-05 → — Figure MA9504B MA9504B 1984-10 → — Figure MA7876F MA7876F 1986-08 → 1987-07

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17368A Support, Air Tube
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17680 Valve Assy, Mixture Control
17691 Bracket, Vacuum Control Valve, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
25730 Valve Assy, Electric Bleed Air Control
25751 Clamp, Vacuum Control Valve, NO.1
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
