Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe
Discontinued model
Data version 1990-07

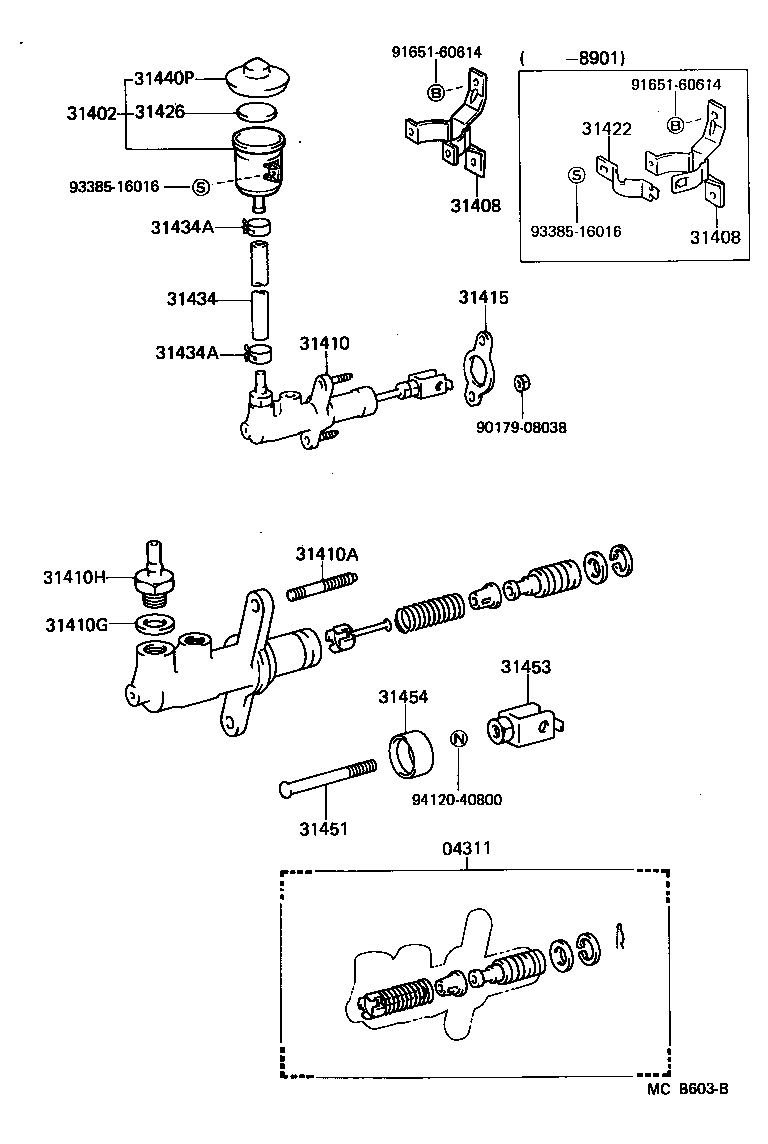

Clutch Master Cylinder
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31402 | Reservoir Sub-assy, Clutch Master Cylinder |
| 31408 | Holder Sub-assy, Clutch Reservoir |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31410G | Gasket(FOR CLUTCH MASTER CYLINDER UNION) |
| 31410H | Union(FOR CLUTCH MASTER CYLINDER) |
| 31415 | Gasket, Clutch Master Cylinder |
| 31416 | Union, Clutch Master Cylinder Inlet |
| 31417 | Grommet, Clutch Reservoir |
| 31422 | Bracket, Clutch Reservoir |
| 31426 | Float, Clutch Master Cylinder Reservoir |
| 31431 | Bolt, Clutch Master Cylinder Reservoir Set |
| 31432 | Washer, Clutch Reservoir Set Bolt |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
| 31440P | Cap Assy, Clutch Master Cylinder Reservoir Filler |
| 31451 | Rod, Clutch Master Cylinder Push |
| 31453 | Clevis, Clutch Master Cylinder Push Rod |
| 31454 | Boot, Clutch Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
