Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe
Discontinued model
Data version 1990-07

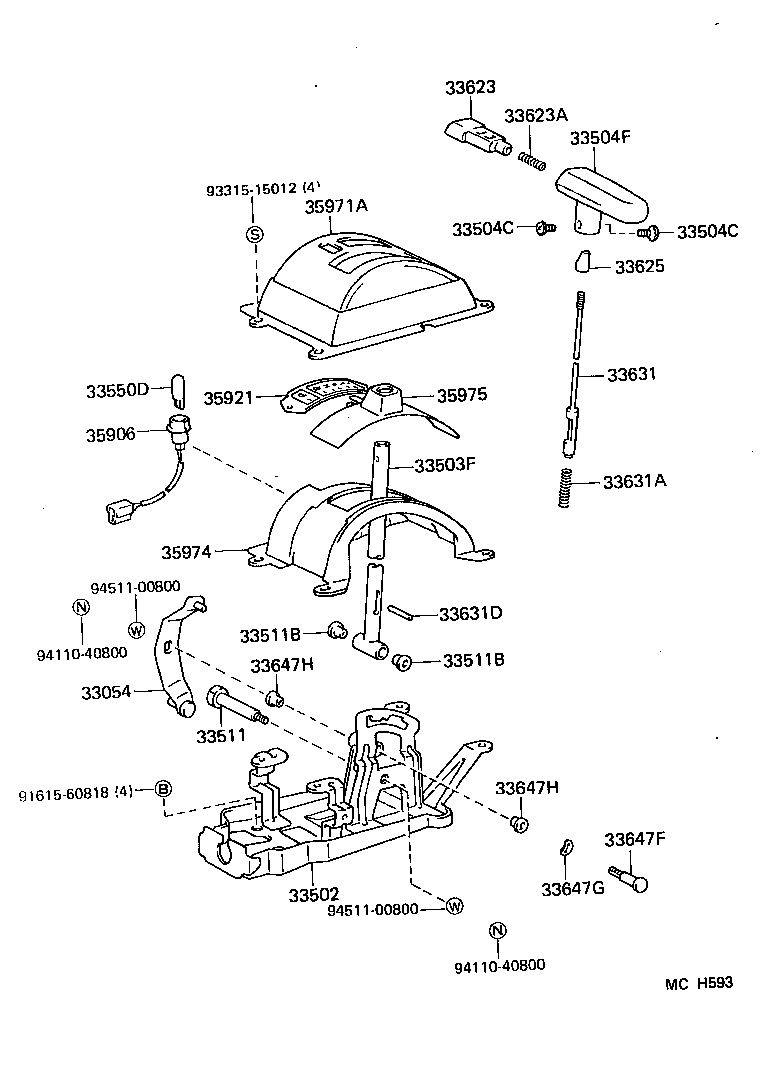

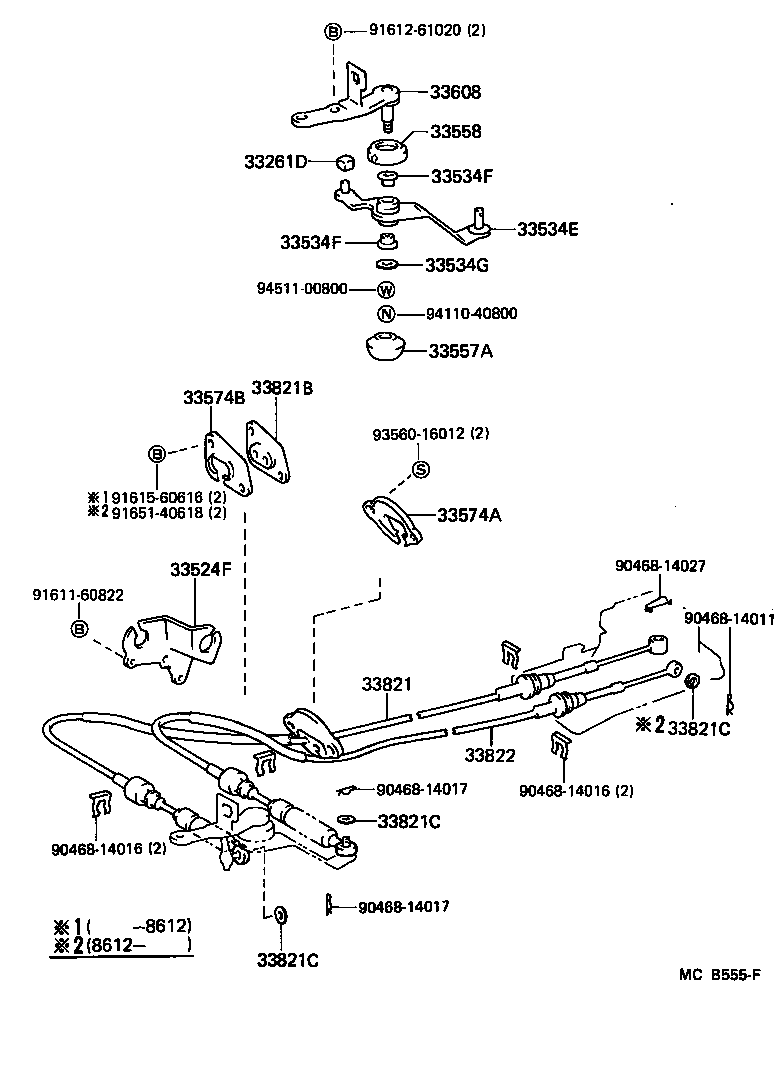

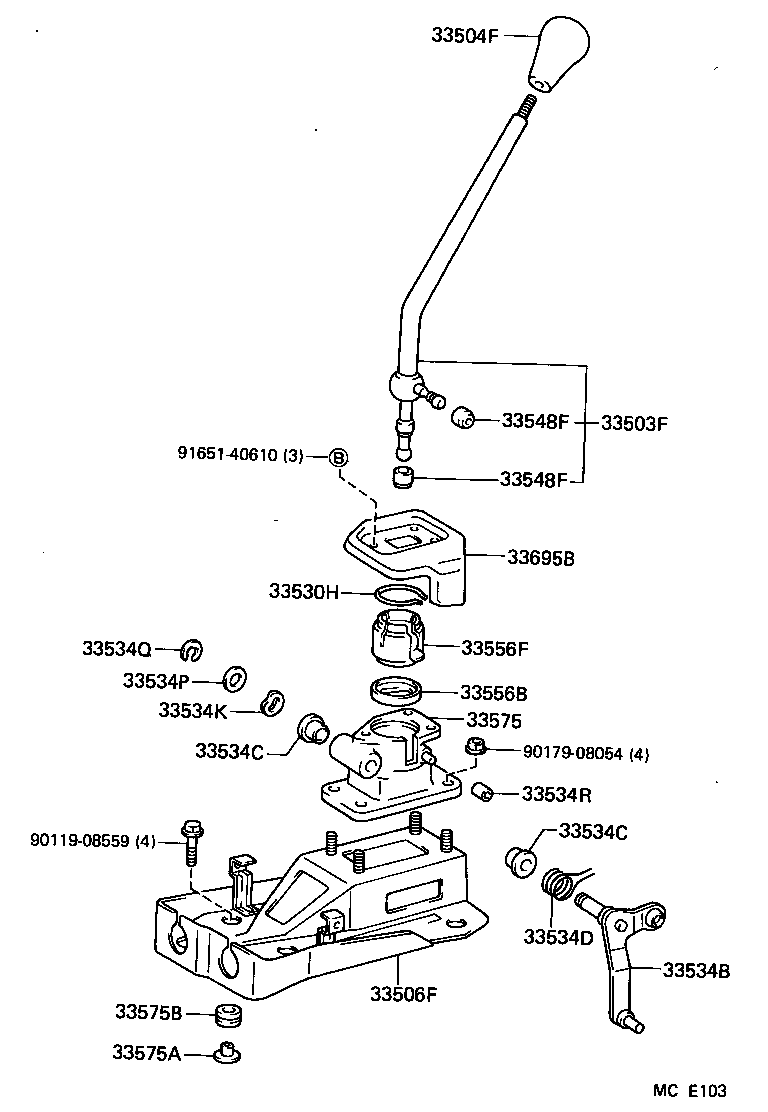

Shift Lever & Retainer
62 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33054 | Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT) |
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33530H | Ring, Snap (FOR SHIFT LEVER) |
| 33534B | Crank, Selecting Bell, NO.1 |
| 33534C | Bush (FOR SELECTING BELLCRANK NO.1) |
| 33534D | Spring, Torsion (FOR SELECTING BELLCRANK NO.1) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33534K | Washer, Wave (FOR SELECTING BELLCRANK NO.1) |
| 33534P | Washer, Plate (FOR SELECTING BELLCRANK NO.1) |
| 33534Q | Ring, E (FOR SELECTING BELLCRANK NO.1) |
| 33534R | Cushion (FOR SELECTING BELLCRANK NO.1) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33554 | Cap, Shift Lever |
| 33556B | Bush (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33556G | Spring (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556H | Shim (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33574B | Retainer, Shift Cable Grommet, NO.2 |
| 33575 | Retainer, Control Shift Lever (FOR FLOOR SHIFT) |
| 33575A | Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33575B | Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) |
| 33593F | Holder, Spring (FOR FLOOR SHIFT) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33618 | Support, Selecting Bellcrank, NO.1 |
| 33618A | Bolt (FOR SELECTING BELLCRANK SUPPORT) |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33647F | Shaft, Control Link (FOR FLOOR SHIFT) |
| 33647G | Washer, Wave (FOR CONTROL LINK SHAFT) |
| 33647H | Bush (FOR CONTROL LINK SHAFT) |
| 33695B | Cover, Selecting Spring (FOR FLOOR SHIFT) |
| 33723Q | Nut (FOR CONNECTING ROD SWIVEL) |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
