Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 3 illustrations

Illustrations

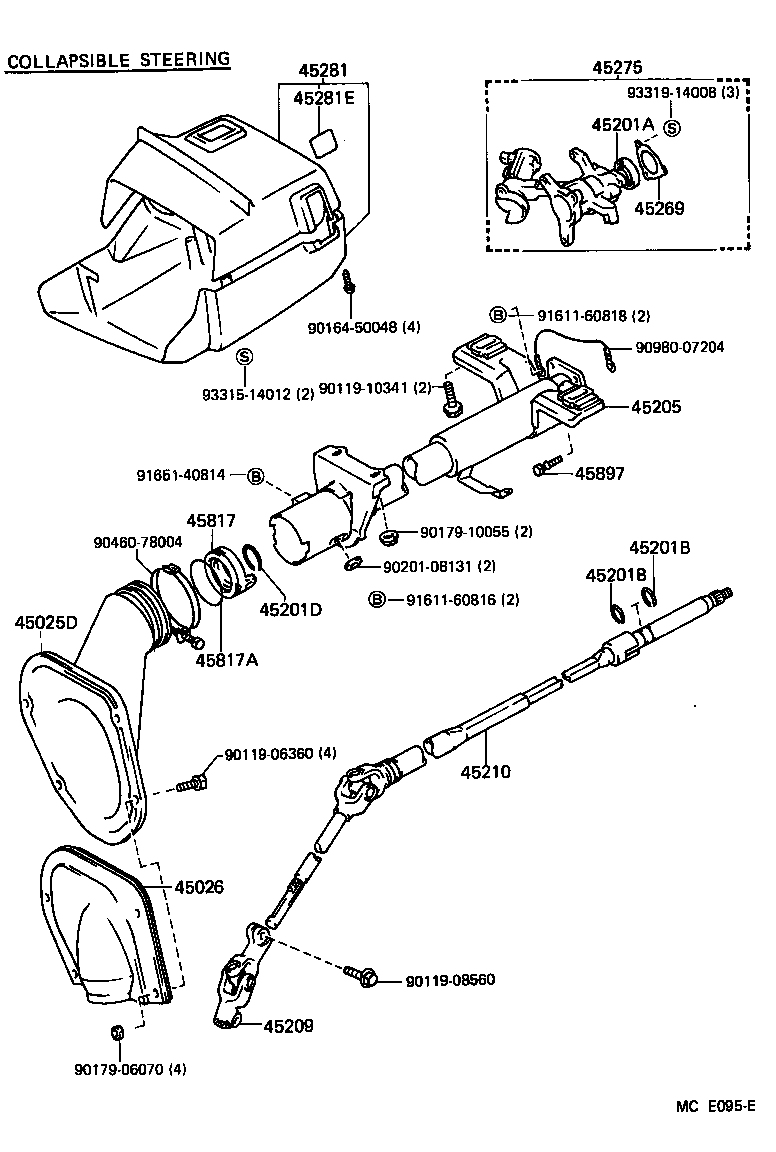

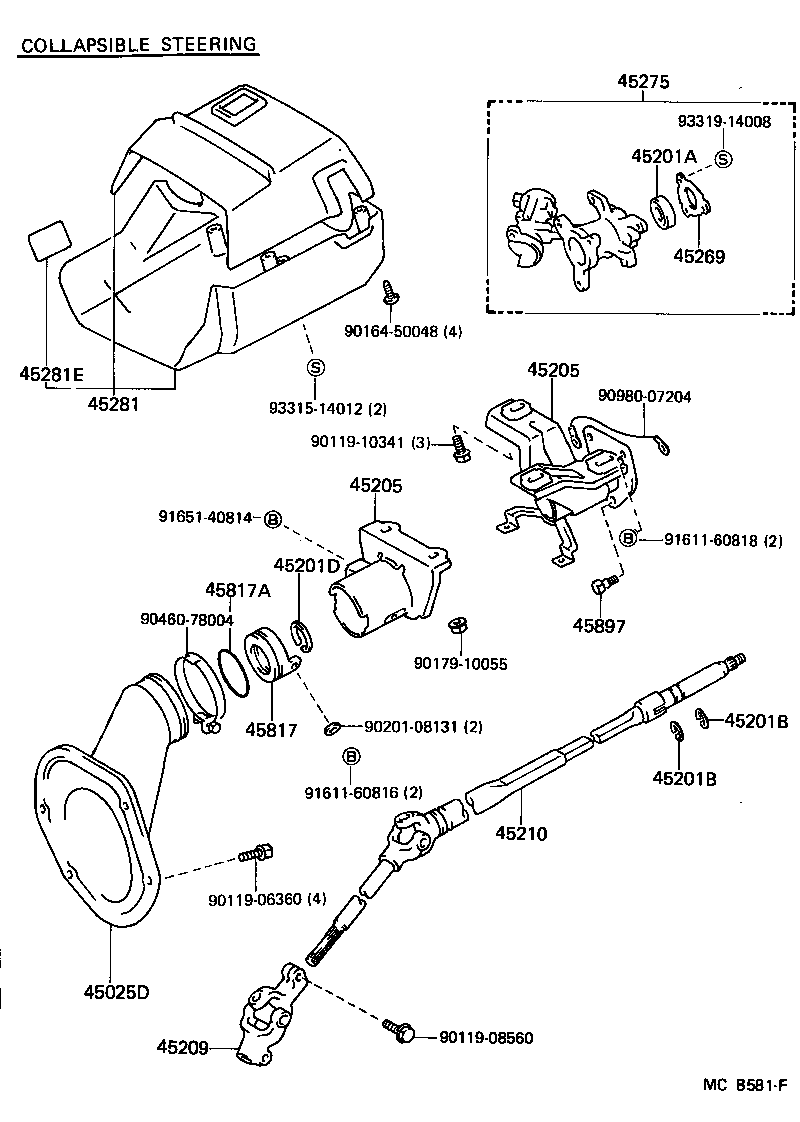

Figure MCB580G MCB580G 1984-10 → — Figure MCB581F MCB581F 1984-10 → — Figure MCE095E MCE095E 1986-12 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
