Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

22 part groups · 4 illustrations

Illustrations

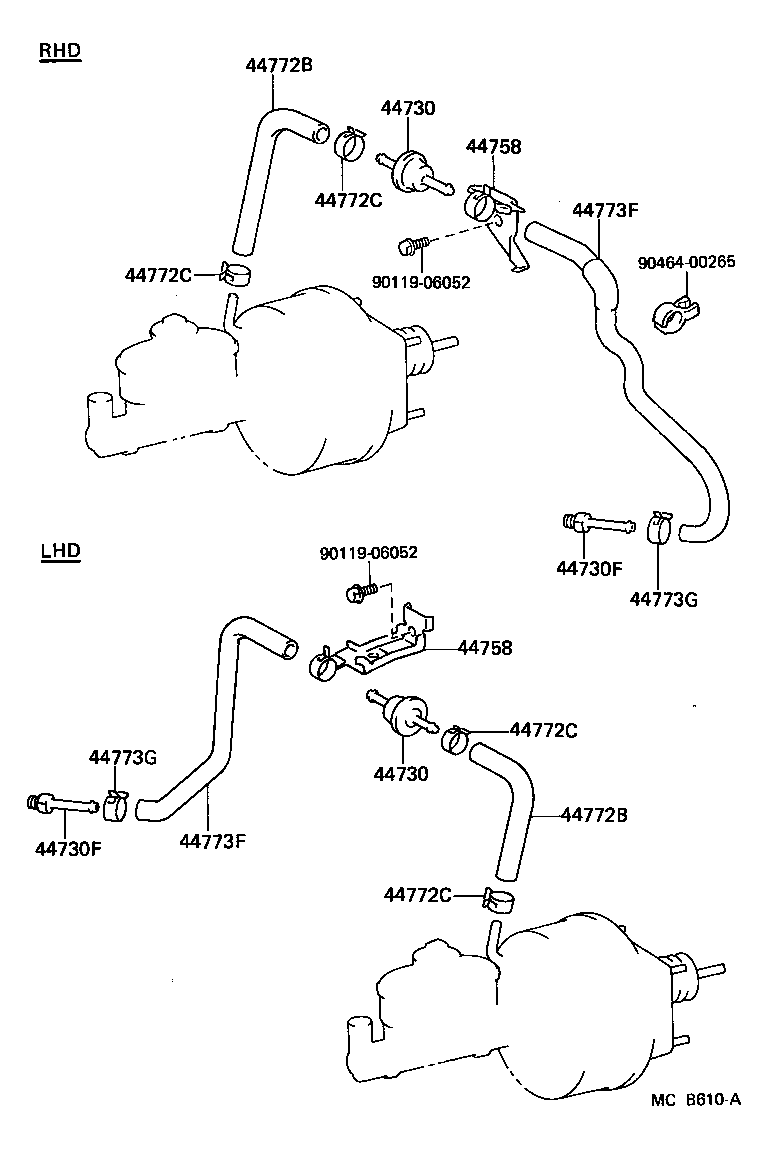

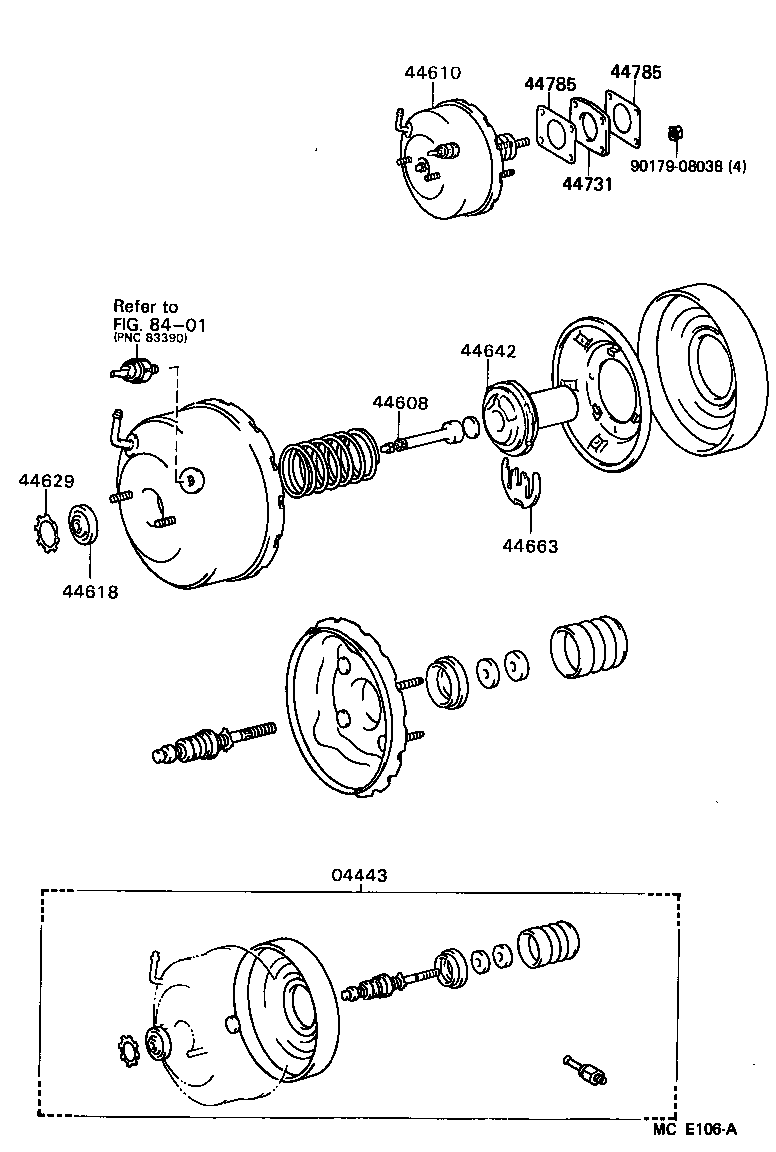

Figure MCB620A MCB620A 1984-10 → — Figure MCE106A MCE106A 1986-12 → — Figure MCB610A MCB610A 1984-10 → — Figure MCE107 MCE107 1986-12 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44629 Ring, Circular Internal
44642 Piston, Brake Booster
44663 Key, Valve Stopper
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730T Union(FOR VACUUM CHECK VALVE)
44731 Bracket, Brake Booster, Front
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
