Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

10 part groups · 2 illustrations

Illustrations

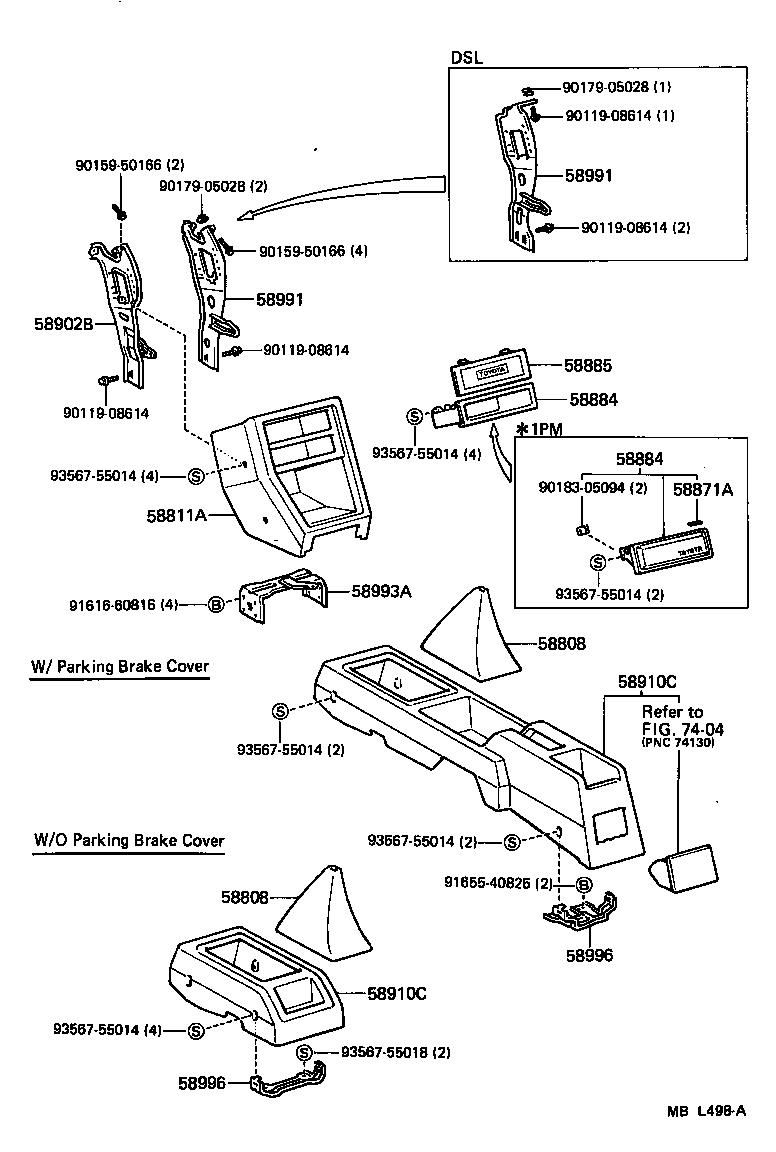

Figure MBH176 MBH176 1984-10 → 1986-12 Figure MBL498A MBL498A 1986-12 → —

Part groups

PNCDescription
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58871A Cushion, Console Box, NO.2
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58910C Box Assy, Console, Rear
58991 Bracket, Console Box Mounting, Upper
58993A Bracket, Console Box Mounting, Lower
58996 Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
