Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe
Discontinued model
Data version 1990-07

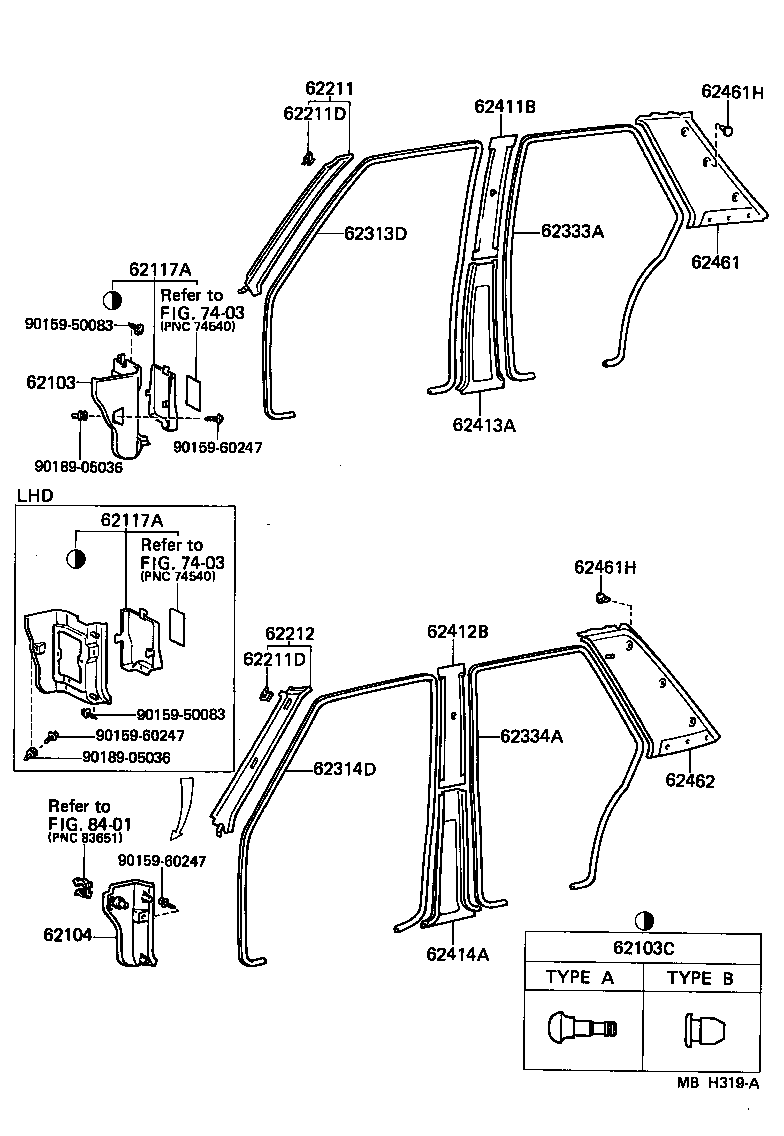

Inside Trim Board & Door Opening Trim Moulding
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62462 | Garnish, Roof Side Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
