Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe
Discontinued model
Data version 1990-07

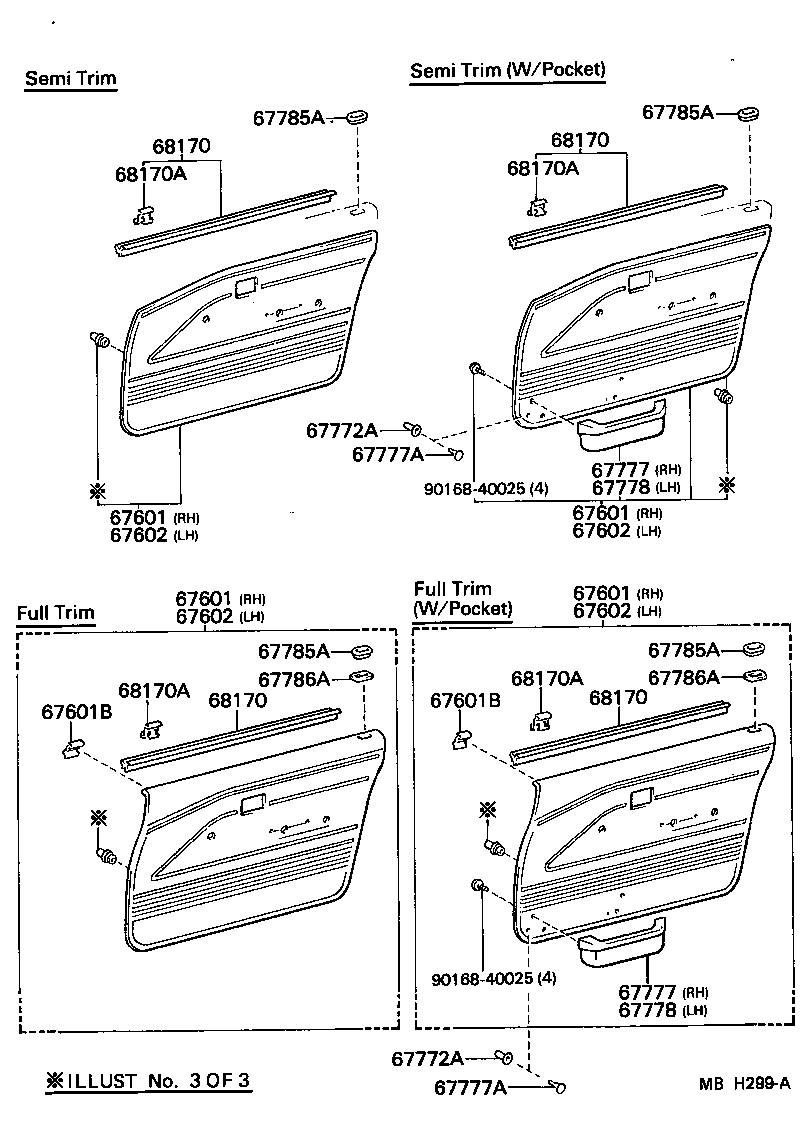

Front Door Panel & Glass
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67121J | Reinforcement, Front Door Outside Panel, RH |
| 67122J | Reinforcement, Front Door Outside Panel, LH |
| 67407 | Frame Sub-assy, Front Door, Rear Lower RH |
| 67408 | Frame Sub-assy, Front Door, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495 | Cover, Front Door Front Lower Frame, Upper |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67772A | Cap, Front Door Trim Retainer |
| 67777 | Pocket, Front Door Trim, RH |
| 67777A | Clip, Front Door Pocket |
| 67778 | Pocket, Front Door Trim, LH |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67786A | Retainer, Door Locking Button Collar(FOR FRONT DOOR) |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 68041 | Run Sub-assy, Front Door Glass |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68141B | Clip, Door Glass Run |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68161A | Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68170A | Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) |
| 68610 | Check Assy, Front Door |
| 68610A | Pin(FOR FRONT DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
