Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

17 part groups · 3 illustrations

Illustrations

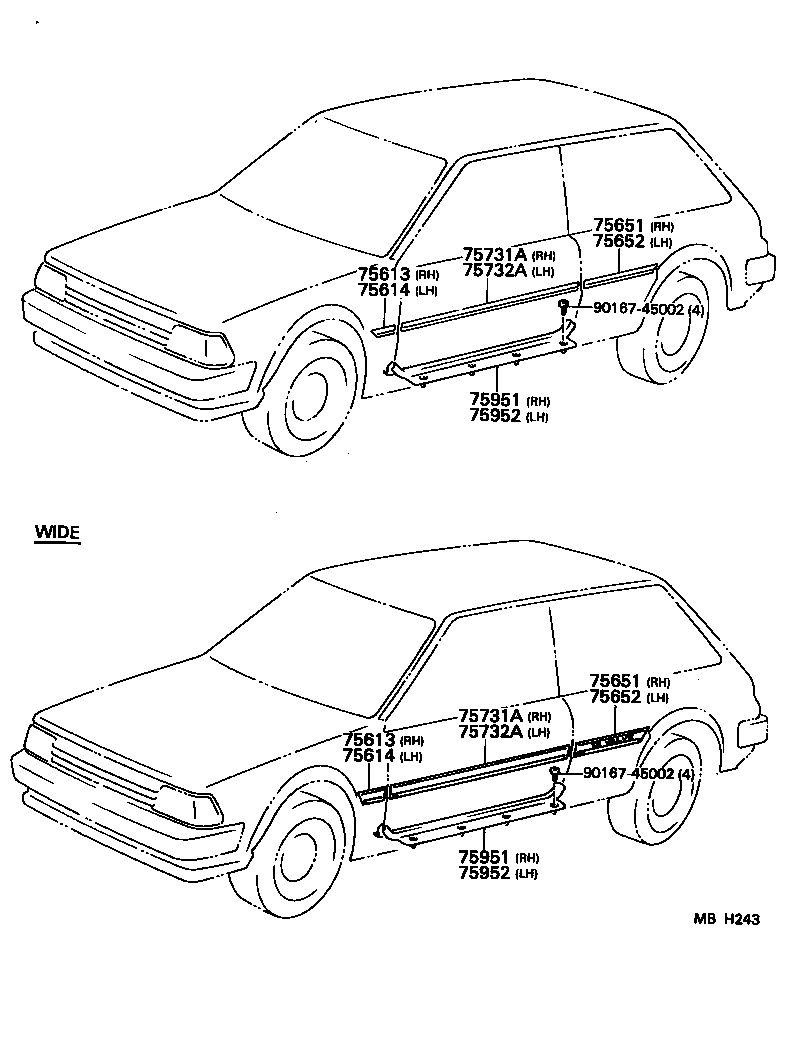

Figure MBH355 MBH355 1984-10 → — Figure MBH243 MBH243 1984-10 → — Figure MBH245 MBH245 1984-10 → —

Part groups

PNCDescription
75549B Fastener, Windshield Outside Moulding, NO.2
75551A Clip, Roof Drip Moulding, NO.1
75551B Clip, Roof Drip Moulding, NO.2
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
