Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07

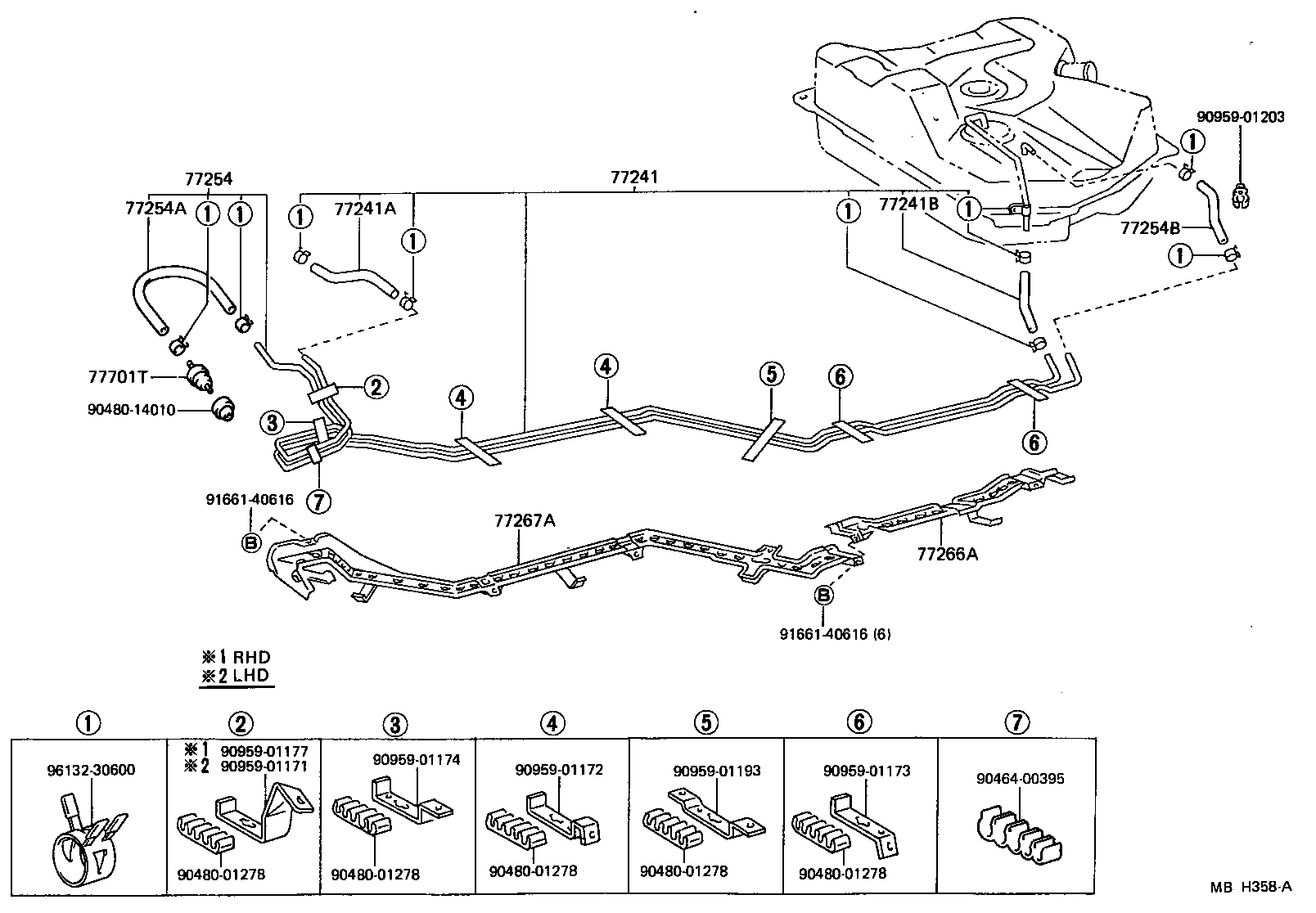

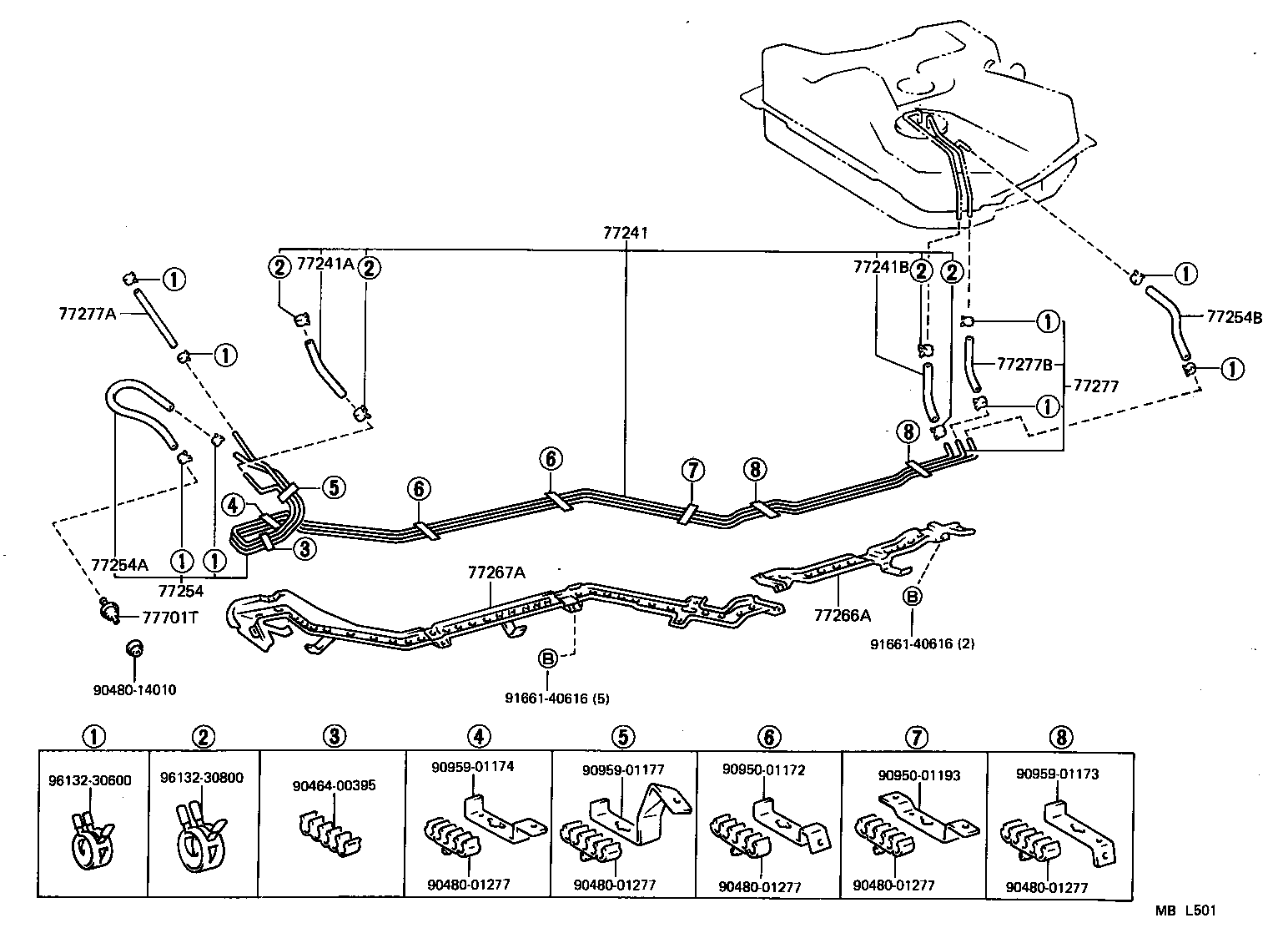

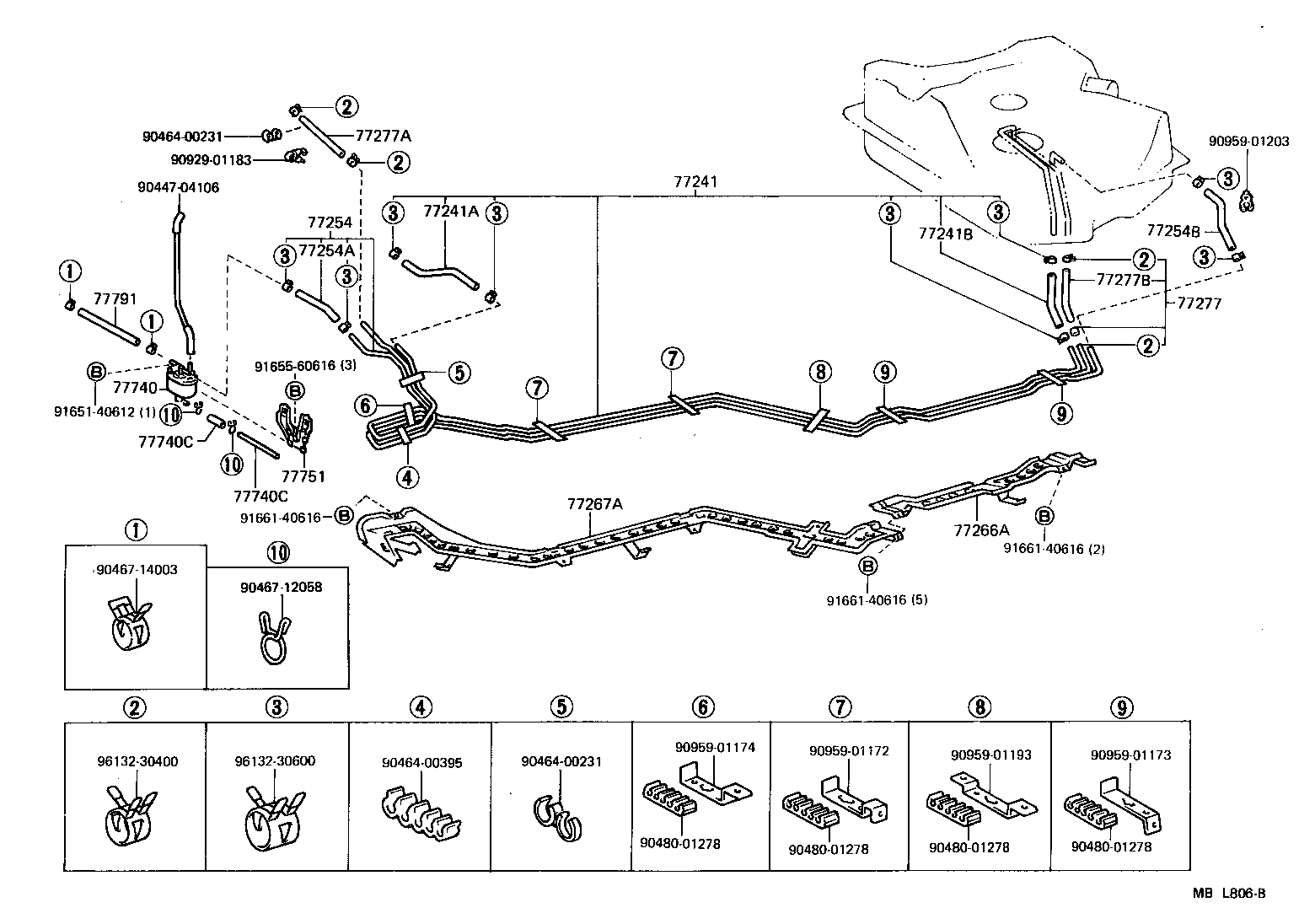

Fuel Tank & Tube

41 part groups · 4 illustrations

PNC	Description
77017	Tube Sub-assy, Fuel And Evaporation Vent
77017A	Gasket, Fuel Tank Vent
77023	Filter Sub-assy, Fuel Suction Tube
77031	Cap Assy, Fuel Tank
77031B	Gasket (FOR FUEL TANK CAP)
77035	Cable Sub-assy, Fuel Lid Lock Control
77037	Lock Sub-assy, Fuel Filler Opening Lid
77100	Tank Assy, Fuel
77100A	Plug(FOR FUEL TANK)
77100B	Gasket(FOR FUEL TANK)
77201	Pipe Sub-assy, Fuel Tank Inlet
77201A	Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77213	Hose, Fuel Tank Sub Inlet
77241	Tube, Fuel Main, NO.1
77241A	Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B	Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254	Tube, Fuel Emission, NO.1
77254A	Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B	Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77266A	Protector, Fuel Tube, NO.1
77267A	Protector, Fuel Tube, NO.2
77277	Tube, Fuel Return, NO.1
77277A	Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B	Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277P	Protector(FOR FUEL RETURN HOSE)
77290	Shield Assy, Fuel Tank Filler Pipe
77293A	Shield, Fuel Tank Filler Pipe, NO.3
77308	Cover Sub-assy, Fuel Inlet Box
77366	Spring, Fuel Filler Opening Lid Hinge
77367	Stopper, Fuel Filler Opening Lid
77377	Retainer, Fuel Filler Opening Lid Lock
77387	Ring, Fuel Inlet Box
77611	Band, Fuel Tank
77614	Seat, Fuel Tank Band
77652	Cushion, Fuel Tank, NO.1
77654	Cushion, Fuel Tank, NO.2
77701T	Valve, Check (FOR MAIN FUEL TANK)
77740	Canister Assy, Charcoal
77740C	Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77751	Bracket, Charcoal Canister Base
77791	Hose, Outer Vent Valve TO Carburetor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
