Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 4 illustrations

Illustrations

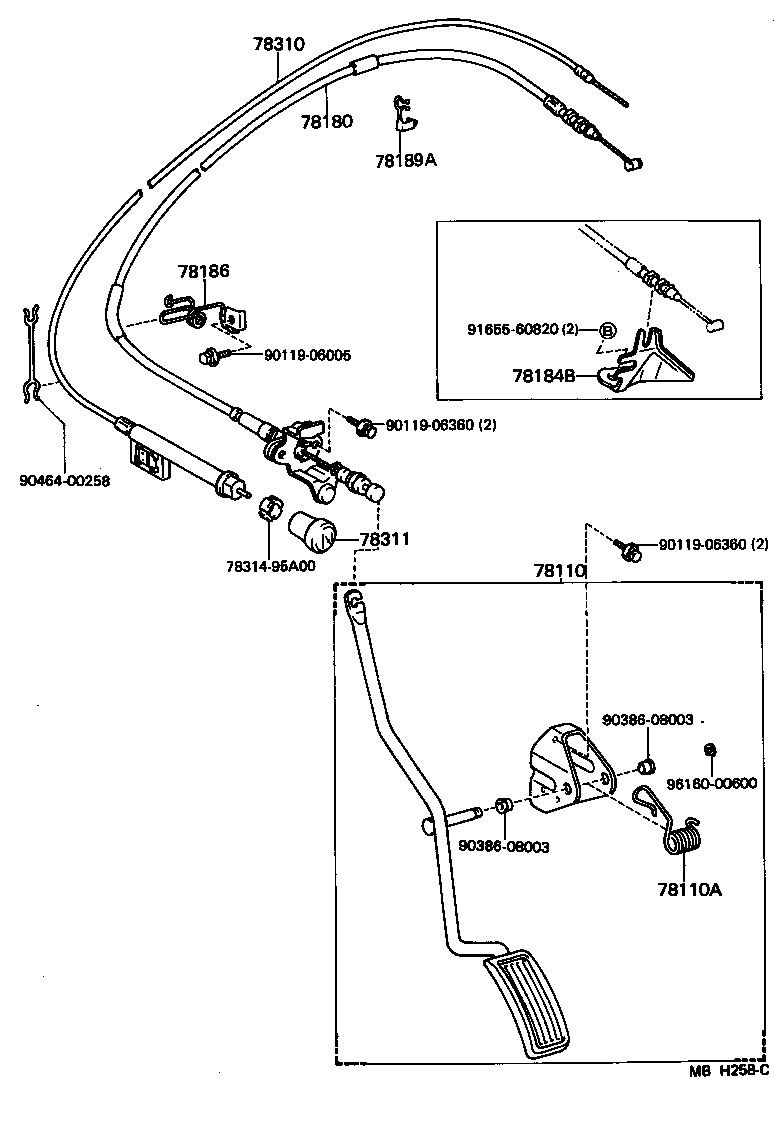

Figure MBH257C MBH257C 1984-10 → — Figure MBL486A MBL486A 1986-12 → 1988-11 Figure MBH258C MBH258C 1984-10 → — Figure MBL513A MBL513A 1986-12 → —

Part groups

PNCDescription
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189A Support, Accelerator Control Cable, NO.2
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
