Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 8 illustrations

Illustrations

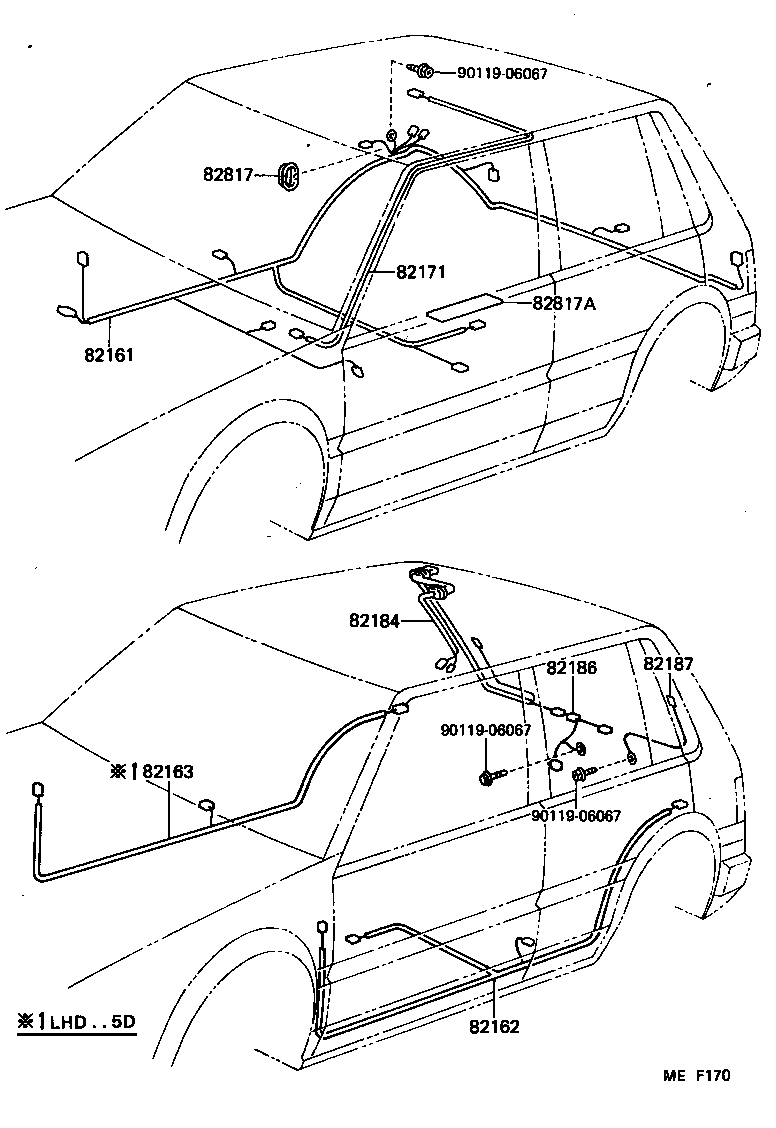

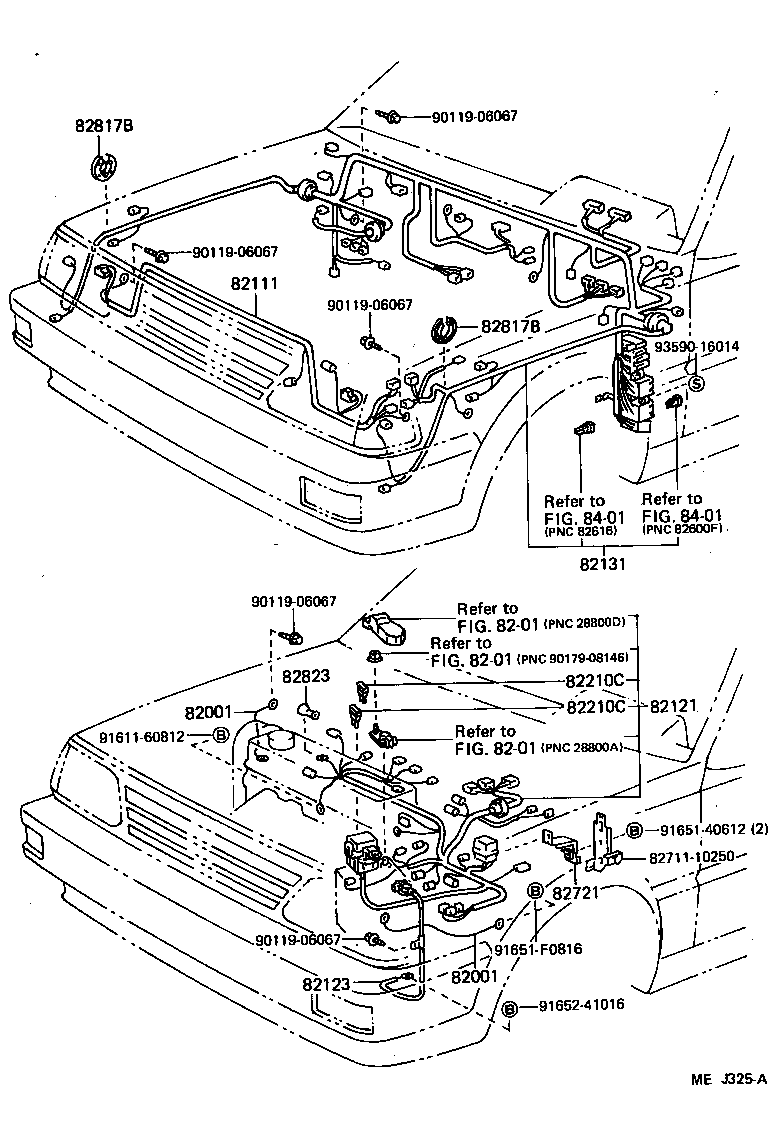

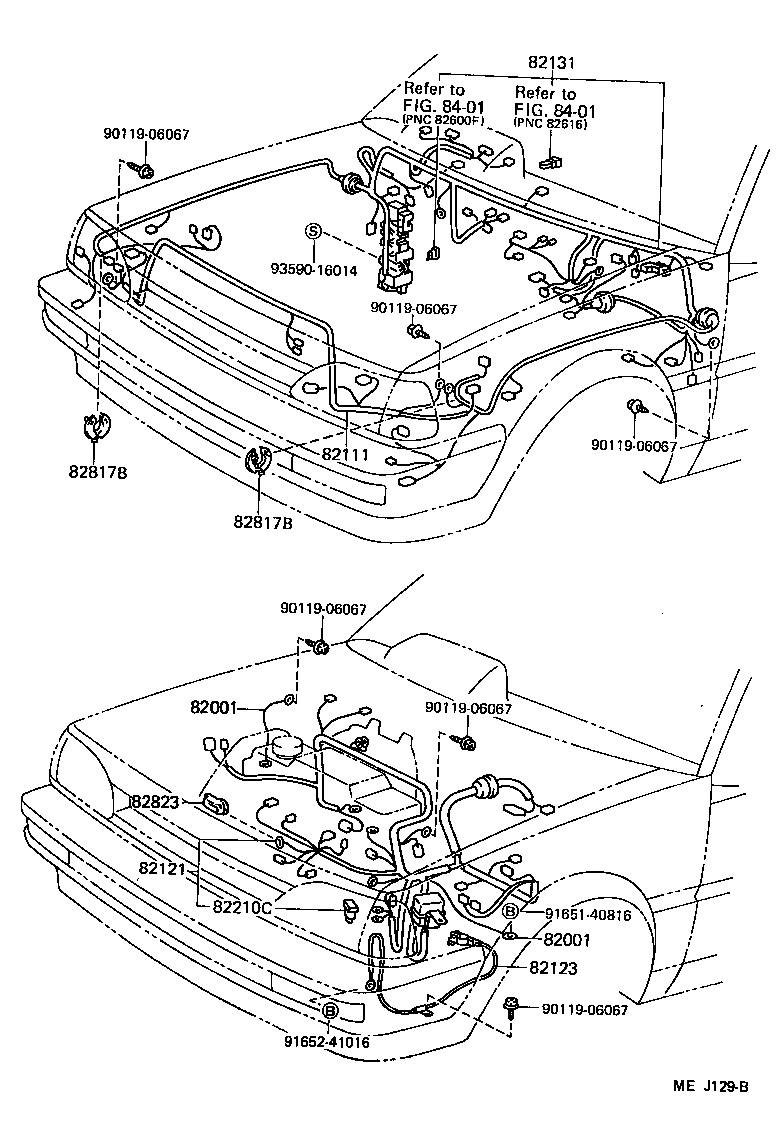

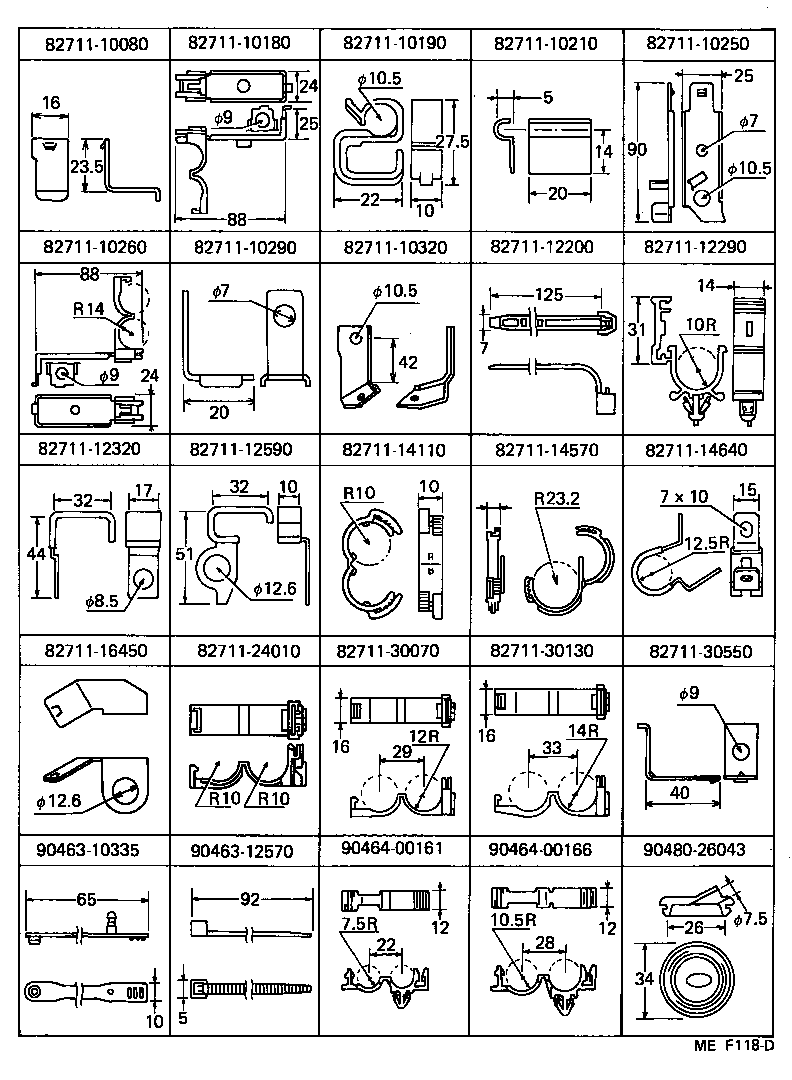

Figure MEJ147D MEJ147D 1984-10 → 1987-07 Figure MEJ147D MEJ147D 1987-07 → — Figure MEJ325A MEJ325A 1987-07 → — Figure MEJ129B MEJ129B 1986-12 → — Figure MEF170 MEF170 1984-10 → — Figure MEF118D MEF118D 1984-10 → — Figure MEJ328 MEJ328 1984-10 → — Figure MEF509B MEF509B 1984-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82721 Bracket, Wiring Harness, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823 Cap, Terminal, NO.1

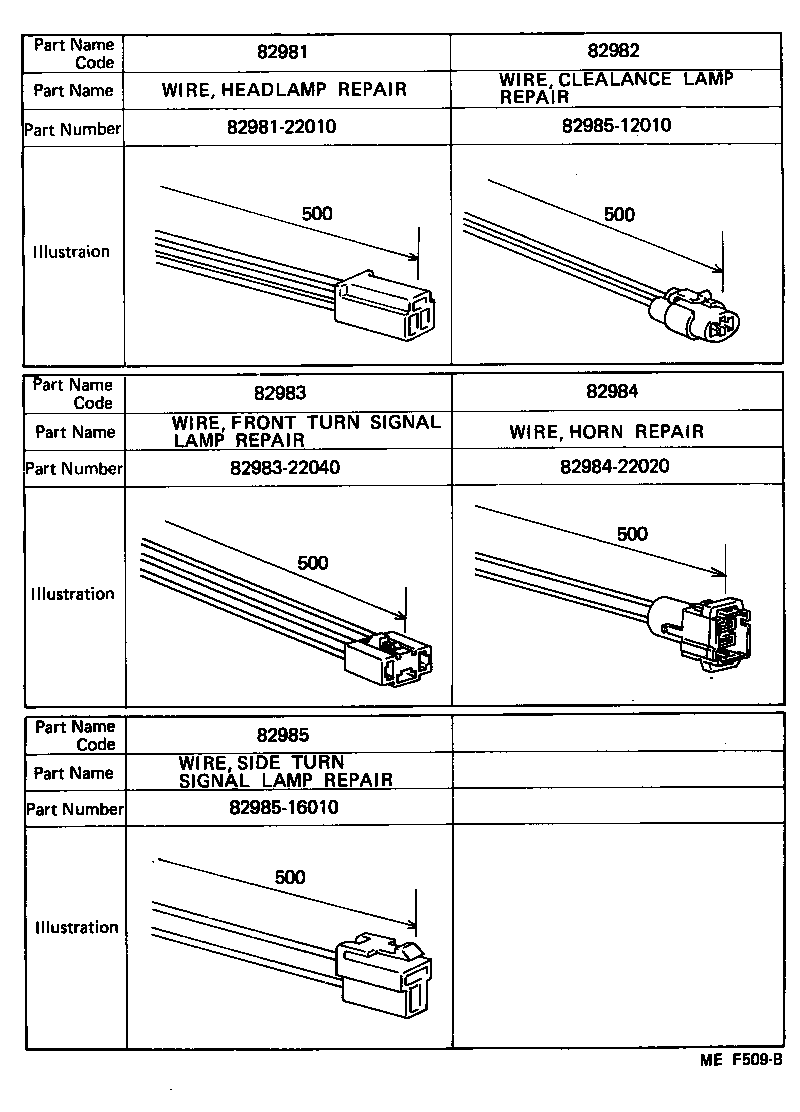

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
