Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

23 part groups · 6 illustrations

Illustrations

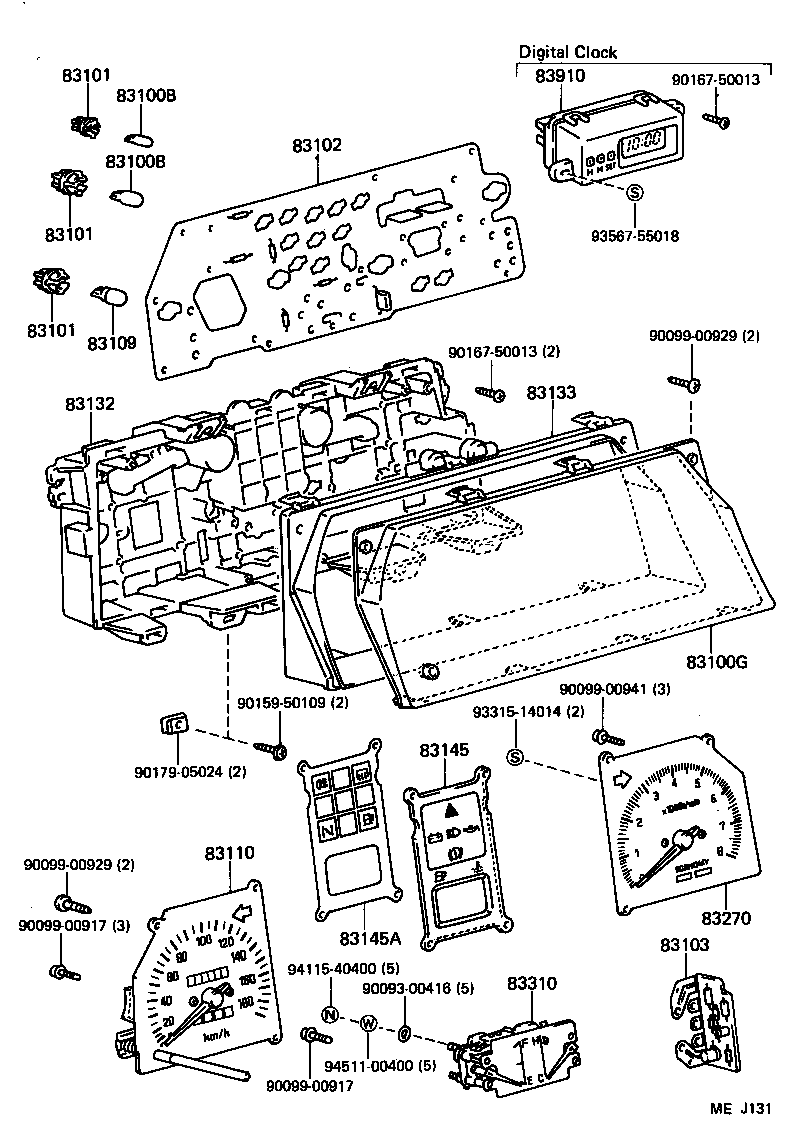

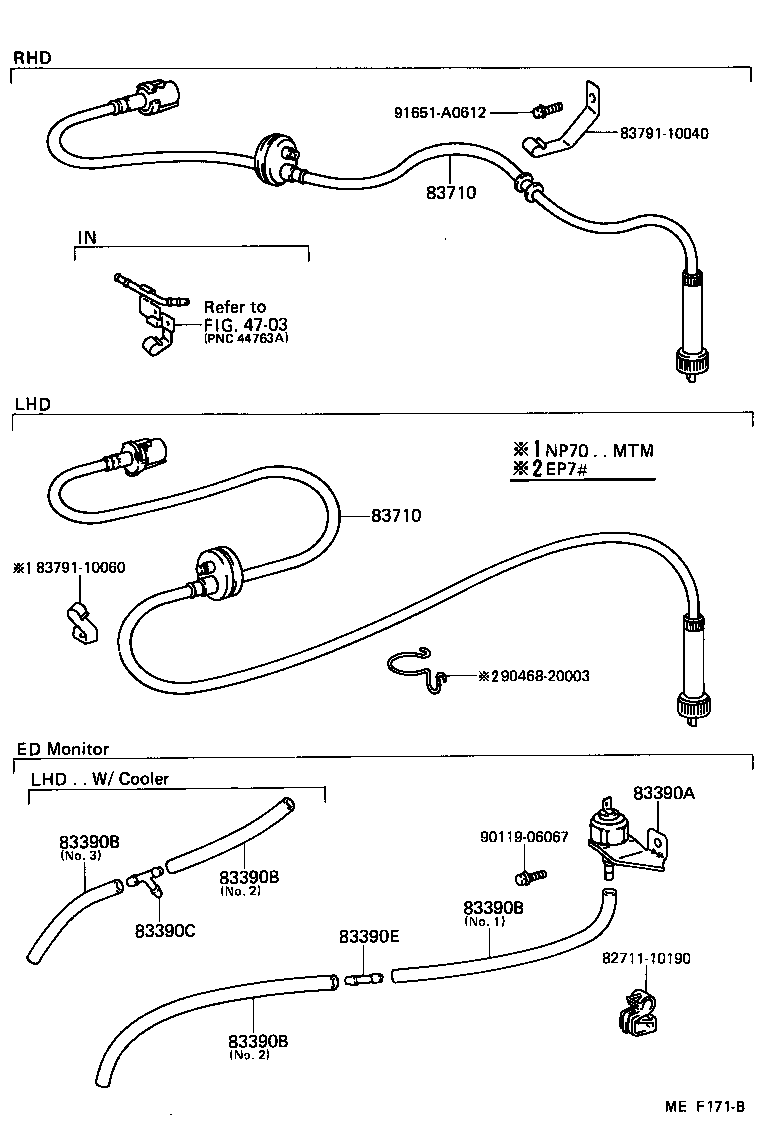

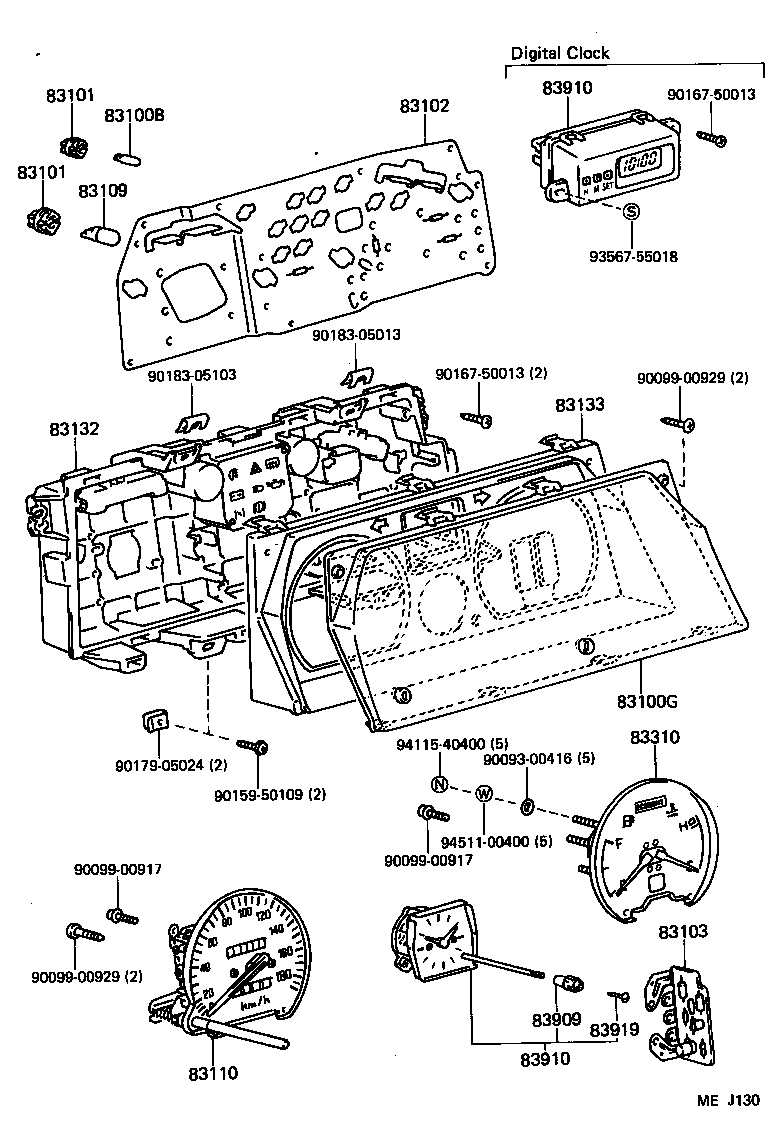

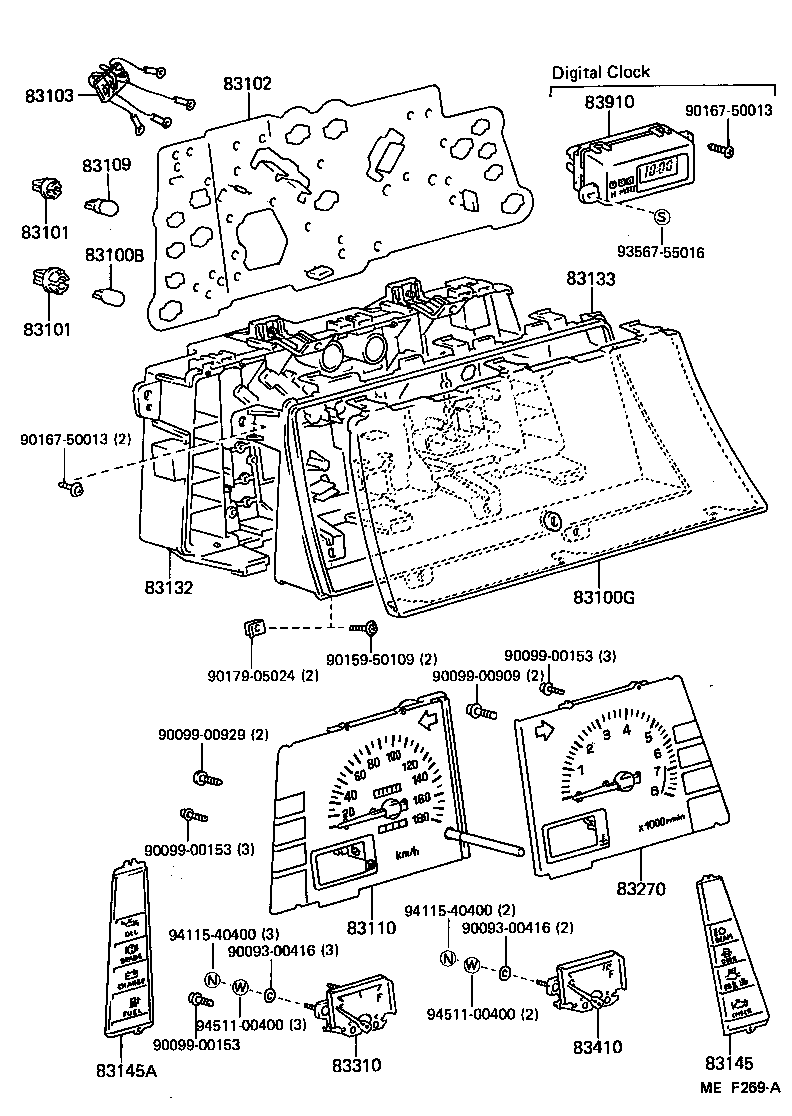

Figure MEF268A MEF268A 1984-10 → 1986-12 Figure MEJ130 MEJ130 1986-12 → — Figure MEF269A MEF269A 1984-10 → 1986-12 Figure MEJ131 MEJ131 1986-12 → — Figure MEF171B MEF171B 1984-10 → — Figure MEJ104 MEJ104 1986-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83180 Detector Assy, Revolution
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83390A Switch Assy, Vacuum(FOR ECONOMETER)
83390B Hose, Vacuum(FOR ECONOMETER)
83390C Union(FOR ECONOMETER)
83390E Way, 2
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
