Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121530 · Europe

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 3 illustrations

Illustrations

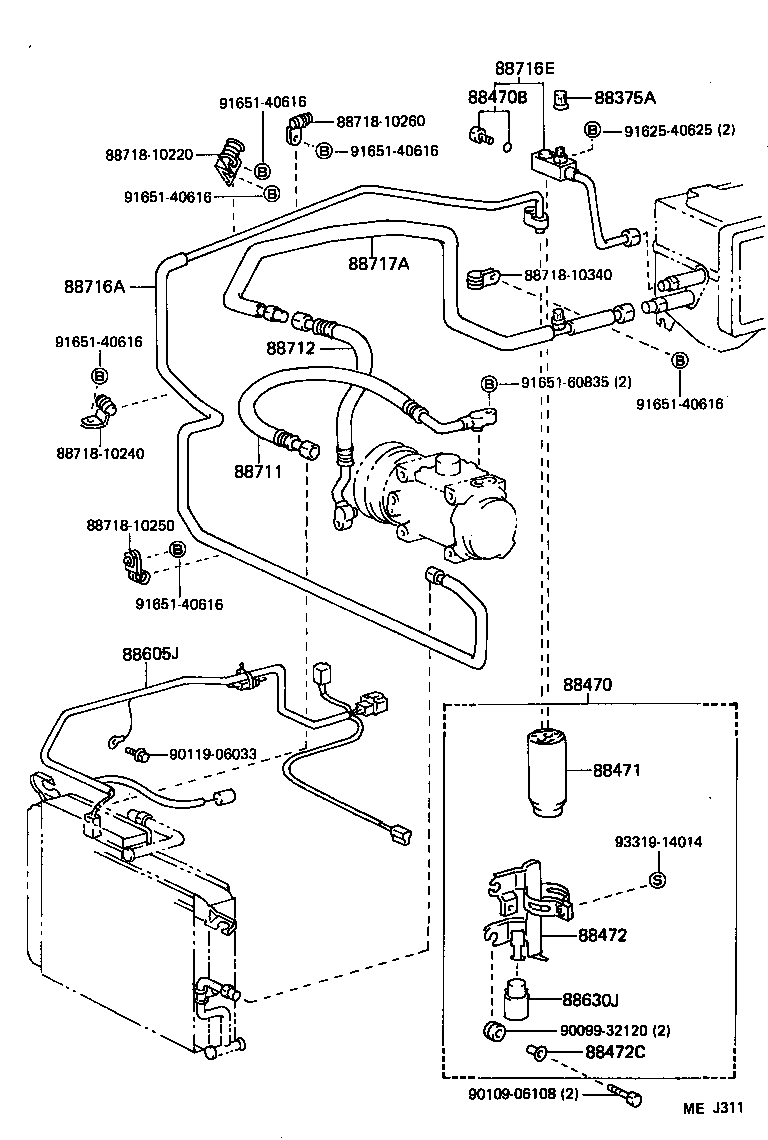

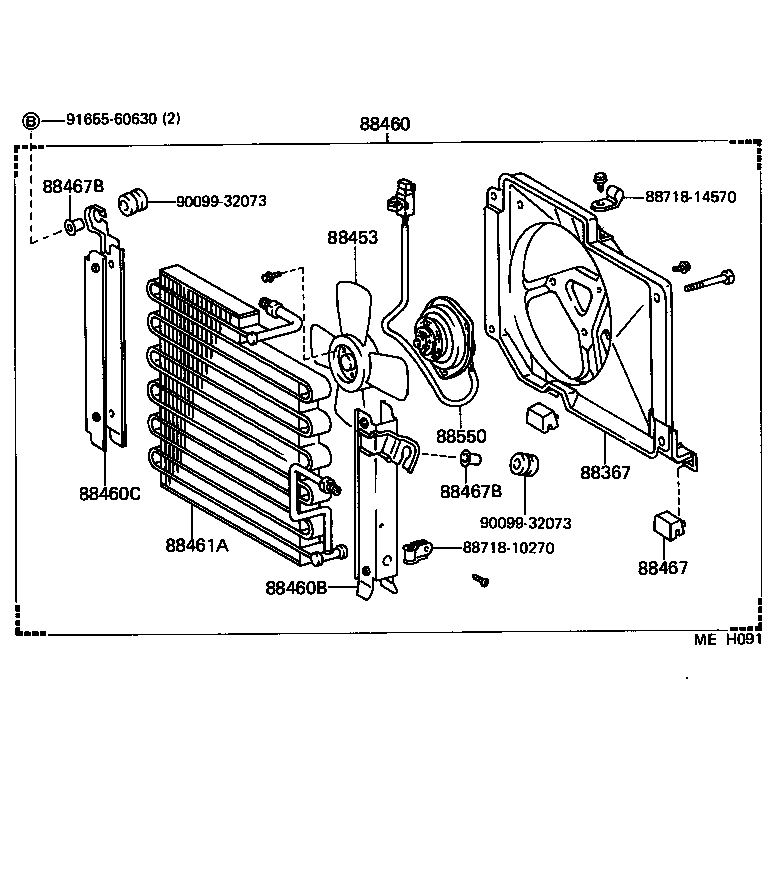

Figure MEH101 MEH101 1984-10 → 1986-12 Figure MEJ311 MEJ311 1986-12 → — Figure MEH091 MEH091 1984-10 → —

Part groups

PNCDescription
88367 Shroud, Cooler Blower Fan
88375A Cap, Service Valve (FOR COOLER PIPE)
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88472C Insulator, Receiver Bracket
88550 Motor Assy, Blower (FOR CONDENSER)
88605J Harness Sub-assy, Air Conditioner Wiring
88630J Relay Assy (FOR CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
