Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.

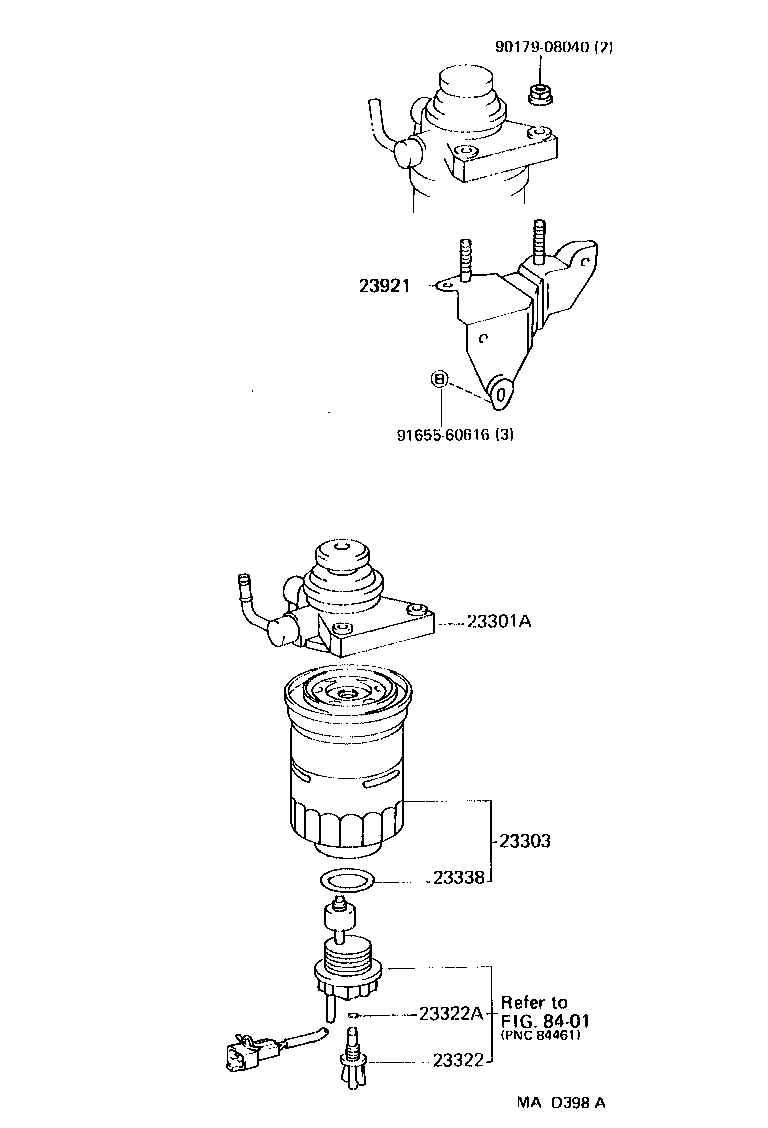

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23301A — Cap Assy, Fuel Filter | ||||
| 23301-55070 |
Cap Assy, Fuel Filter
1989-12 → 1996-01
ended
|
1N NP80 | — | |
| 23303 — Element Sub-assy, Fuel Filter | ||||
| 23303-64010 |
Element Sub-assy, Fuel Filter
1989-12 → 1996-01
ended
|
1N NP80 | — | |
| 23322 — Plug, Drain(FOR FUEL FILTER) | ||||
| 23322-64010 |
Plug, Drain(FOR FUEL FILTER)
1989-12 → 1996-01
ended
|
1N NP80 | — | |
| 23322A — Ring, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
Ring, O(FOR DRAIN PLUG)
1989-12 → 1996-01
ended
|
1N NP80 | — | |
| 23338 — Gasket(FOR WARNING SWITCH) | ||||
| 23344-64010 |
Gasket(FOR WARNING SWITCH)
1989-12 → 1996-01
ended
|
1N NP80 | — | |
| 23921 — Support, Fuel Filter | ||||
| 23264-10010 |
Support, Fuel Filter
1989-12 → 1992-09
ended
|
1E EP80 LHD | — | |
| 23264-11030 |
Support, Fuel Filter
1989-12 → 1992-09
ended
|
1E,2E EP8# RHD | — | |
| 23264-11050 |
Support, Fuel Filter
1989-12 → 1992-09
ended
|
2E EP81 LHD | — | |
| 23921-55050 |
Support, Fuel Filter
1989-12 → 1996-01
ended
|
1N NP80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
