Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11

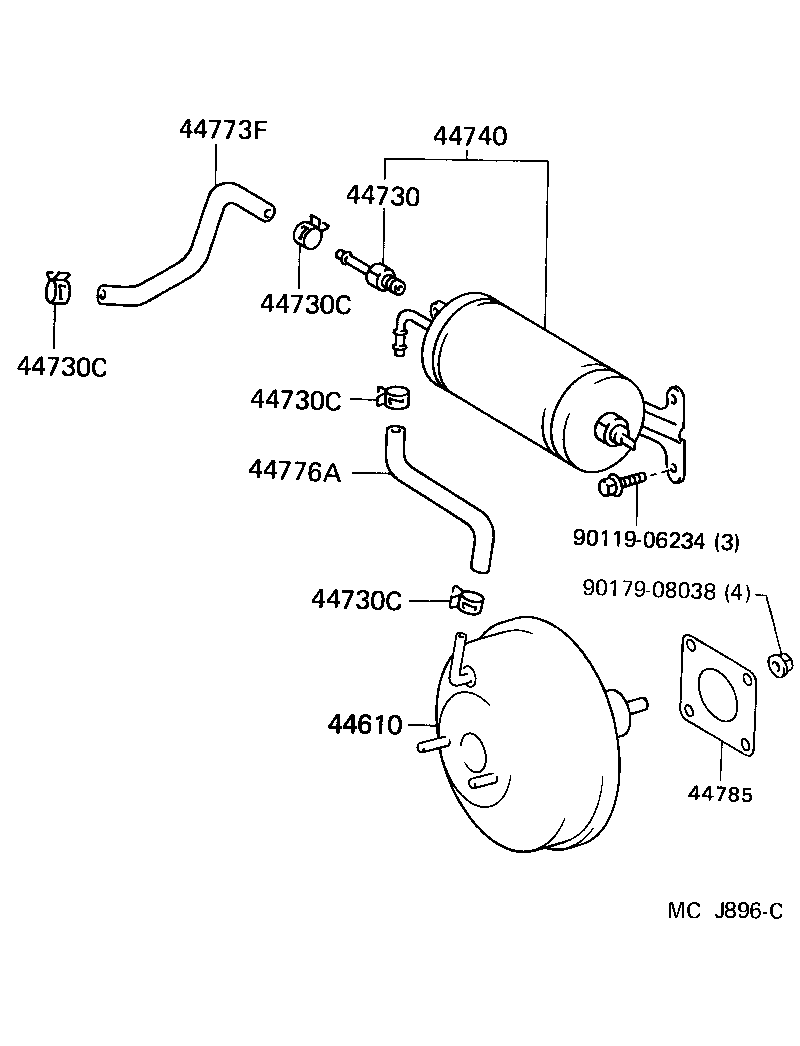

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-10150 |
Booster Assy, Brake
1989-12 → 1992-12
ended
|
EP80 RHD | — | |
| 44610-10160 |
Booster Assy, Brake
1989-12 → 1994-05
ended
|
EP81 RHD | — | |
| 44610-10160 |
Booster Assy, Brake
1994-05 → 1996-01
ended
|
EP81 RHD | — | |
| 44610-10210 |
Booster Assy, Brake
1989-12 → 1996-01
ended
|
EP81,NP80 LHD | — | |
| 44610-10250 note |
Booster Assy, Brake
1989-12 → 1994-05
ended
|
EP8# LHD | — | |
| 44610-10260 |
Booster Assy, Brake
1989-12 → 1992-12
ended
|
EP80 LHD | — | |
| 44610-10300 note |
Booster Assy, Brake
1994-05 → 1996-01
ended
|
EP81 LHD | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-10010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1989-12 → 1992-01
ended
|
EP80;EP81 RHD | — | |
| 44730-10010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1992-01 → 1992-09
ended
|
EP80;EP81 GLI,S,XL;EP81 RHD XLI | — | |
| 44730-10010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1992-09 → 1996-01
ended
|
EP81 GLI,S,XL;EP8# RHD (GL,XL,XLI) | — | |
| 44730-24010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1989-12 → 1992-01
ended
|
EP81 LHD | — | |
| 44730-24010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1992-01 → 1996-01
ended
|
EP81 LHD EFI | — | |
| 44730-60040 |
Valve Assy, Vacuum Check(FOR BRAKE)
1989-12 → 1996-01
ended
|
NP80 | — | |
| 44730C — Clip(FOR VACUUM HOSE) | ||||
| 90467-16002 |
Clip(FOR VACUUM HOSE)
1989-12 → 1996-01
ended
|
EP8# | — | |
| 90467-16002 |
Clip(FOR VACUUM HOSE)
1989-12 → 1996-01
ended
|
NP80 | — | |
| 44740 — Reservoir Assy, Vacuum | ||||
| 44740-10020 |
Reservoir Assy, Vacuum
1989-12 → 1992-01
ended
|
NP80 | — | |
| 44740-10040 |
Reservoir Assy, Vacuum
1992-01 → 1996-01
ended
|
NP80 | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-10220 |
Hose, Union TO Check Valve
1989-12 → 1992-12
ended
|
EP80 RHD | — | |
| 44773-10230 |
Hose, Union TO Check Valve
1989-12 → 1992-12
ended
|
EP81 LHD CBR | — | |
| 44773-10240 |
Hose, Union TO Check Valve
1989-12 → 1996-01
ended
|
EP81 LHD EFI | — | |
| 44773-10250 |
Hose, Union TO Check Valve
1989-12 → 1996-01
ended
|
NP80 | — | |
| 44773-10260 |
Hose, Union TO Check Valve
1989-12 → 1992-09
ended
|
EP80 LHD | — | |
| 44773-10270 |
Hose, Union TO Check Valve
1989-12 → 1992-01
ended
|
EP81 RHD | — | |
| 44773-10280 |
Hose, Union TO Check Valve
1992-01 → 1996-01
ended
|
EP81 RHD | — | |
| 44776A — Hose, Vacuum Reservoir TO Brake Booster | ||||
| 44776-10020 |
Hose, Vacuum Reservoir TO Brake Booster
1989-12 → 1996-01
ended
|
NP80 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-10020 |
Gasket, Brake Booster
1989-12 → 1996-01
ended
|
EP8#,NP80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
