Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

13 part groups · 3 illustrations

Illustrations

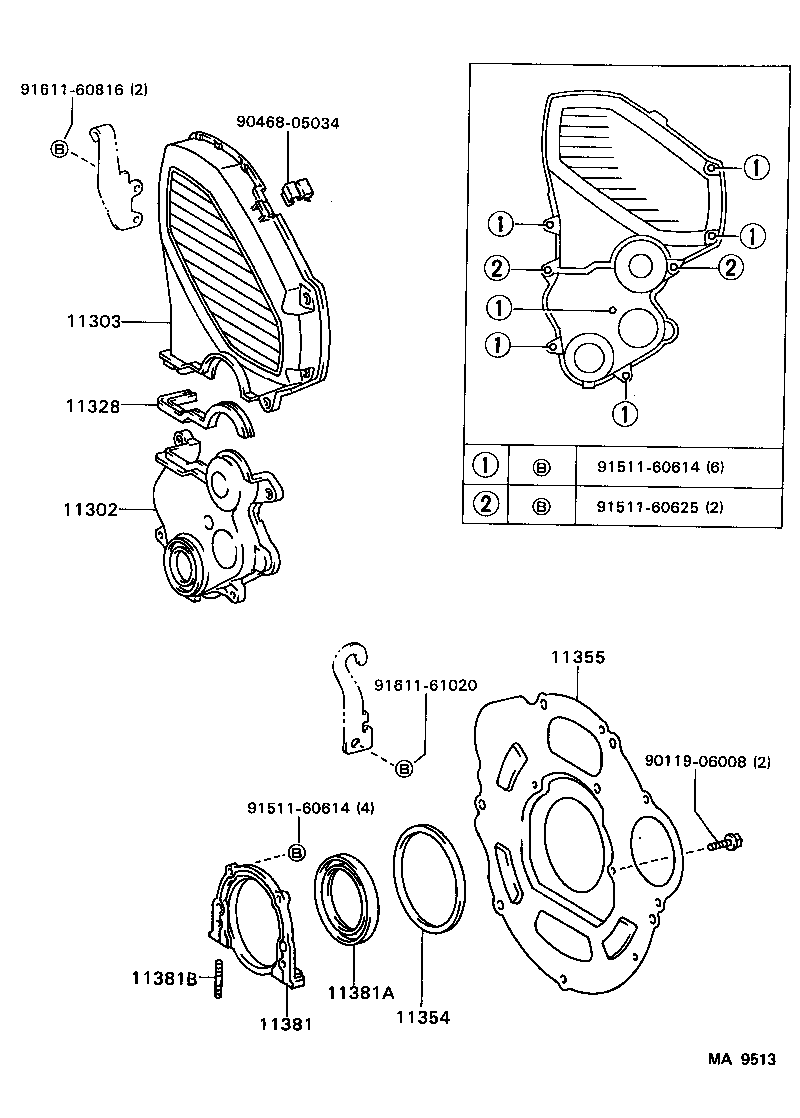

Figure MA7817J MA7817J 1989-12 → 1992-12 Figure MA7817J MA7817J 1992-12 → — Figure MA9513 MA9513 1989-12 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322D Gasket, Timing Belt Cover, NO.1
11328 Gasket, Timing Gear OR Chain Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
