Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

13 part groups · 3 illustrations

Illustrations

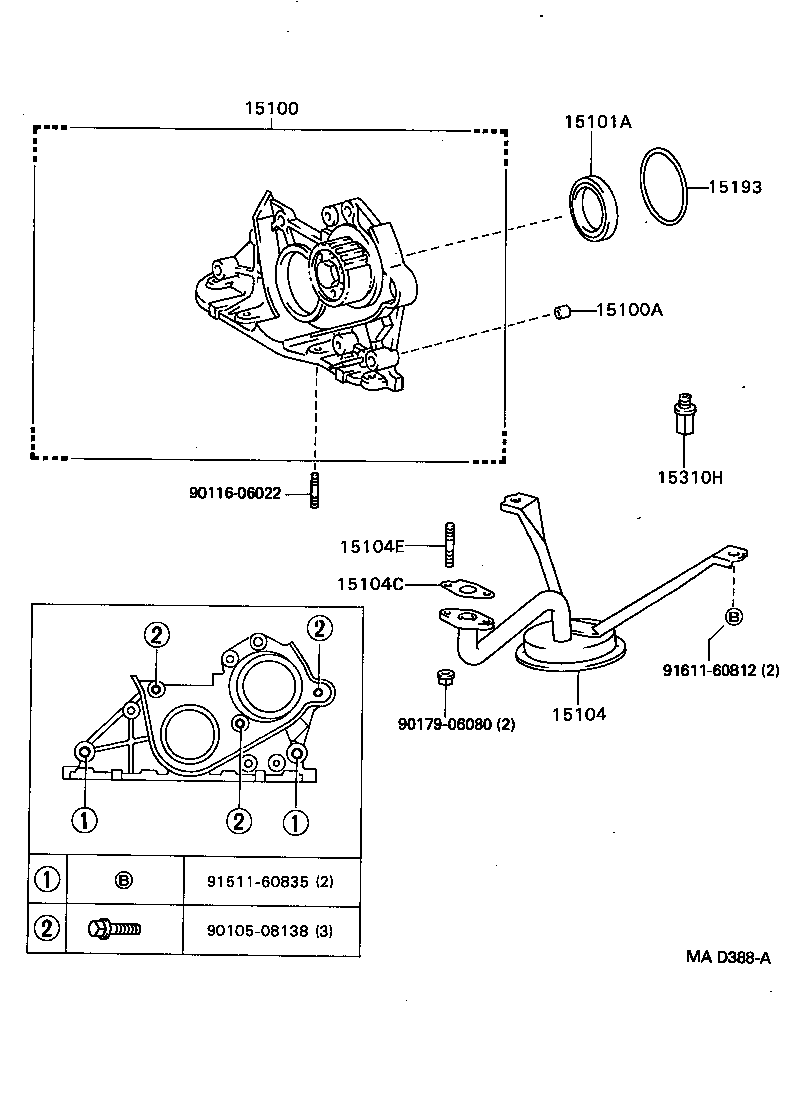

Figure MAD496B MAD496B 1989-12 → 1992-12 Figure MAD496B MAD496B 1992-12 → — Figure MAD388A MAD388A 1989-12 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100P Pulley, Oil Pump Drive Shaft
15101A Seal(FOR CRANKSHAFT)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15193 Gasket, Oil Pump
15310H Regulator Assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
