Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 3 illustrations

Illustrations

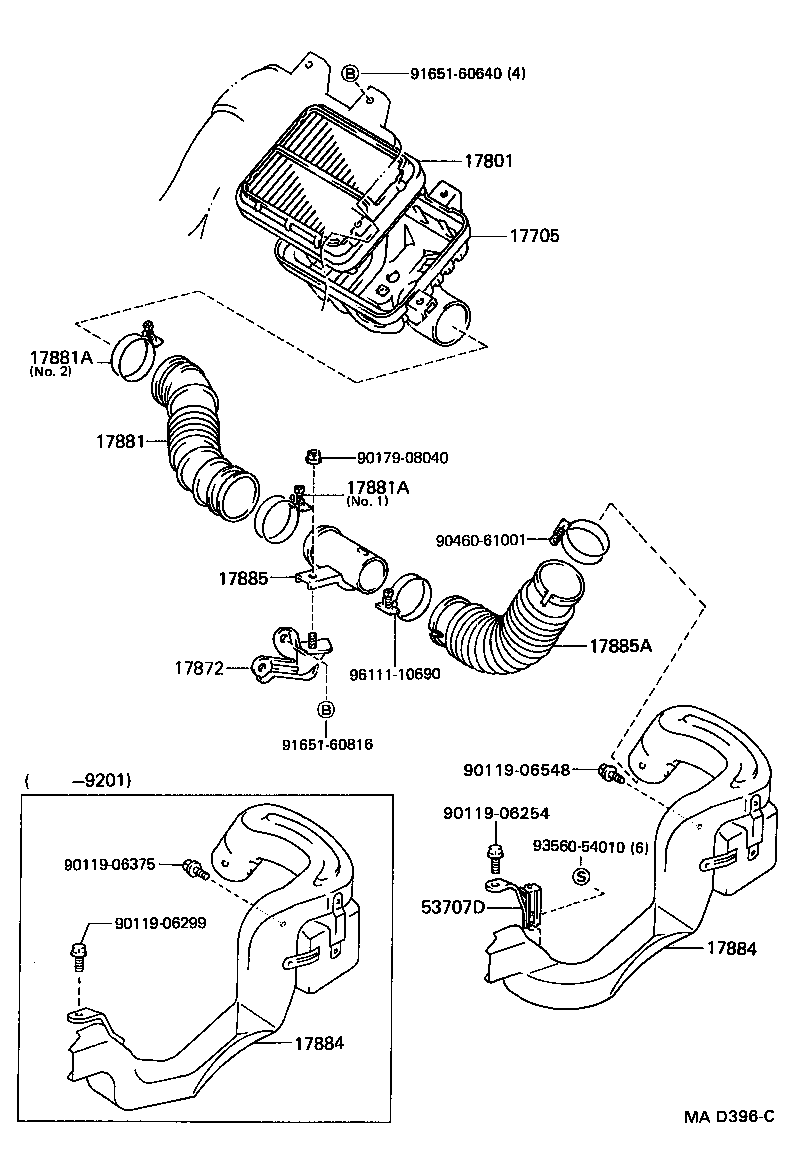

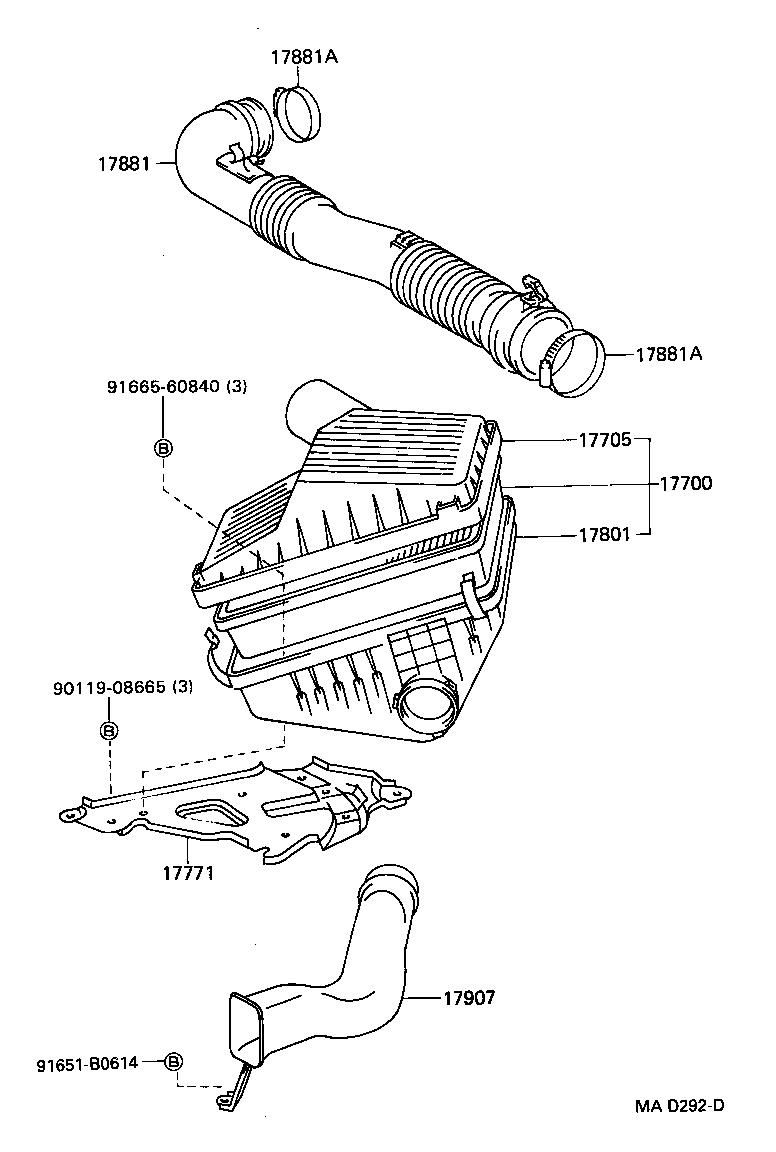

Figure MA7841D MA7841D 1989-12 → 1992-12 Figure MAD292D MAD292D 1989-12 → — Figure MAD396C MAD396C 1989-12 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17767 Bracket, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17872 Bracket, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17884 Hose, Air Cleaner, NO.4
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17907 Inlet Sub-assy, Cool Air
53707D Bracket Sub-assy, Cool Air Intake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
