Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 8 illustrations

Illustrations

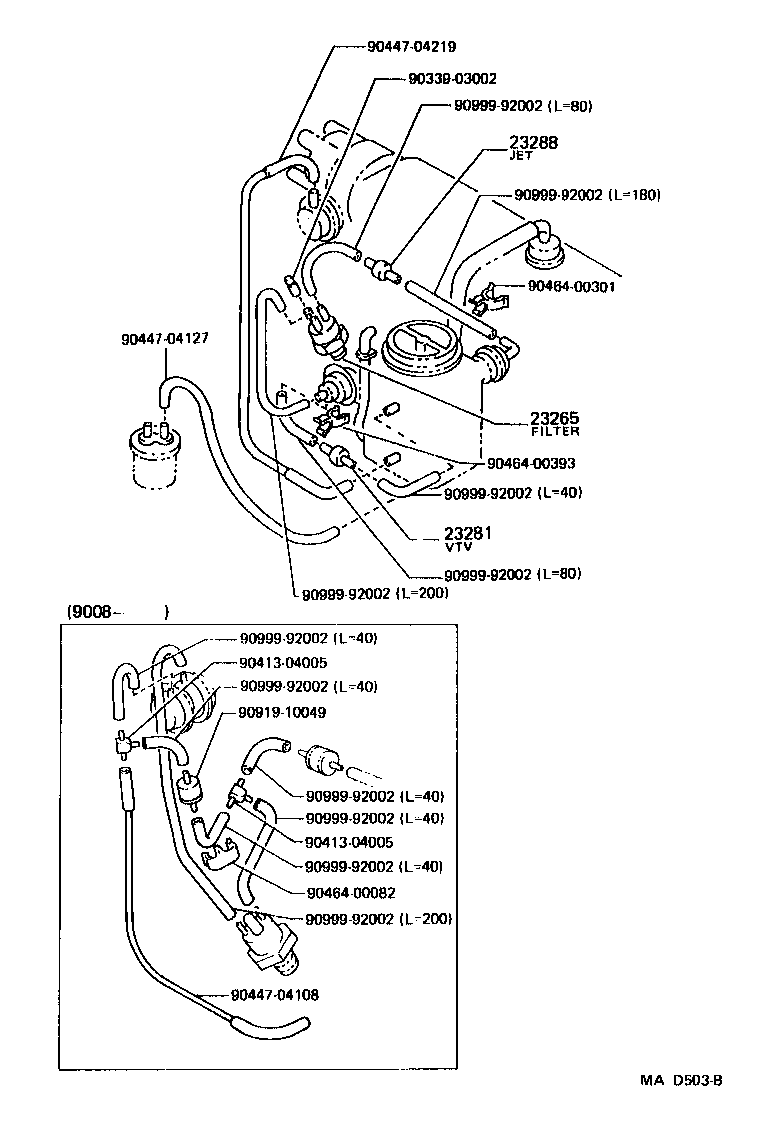

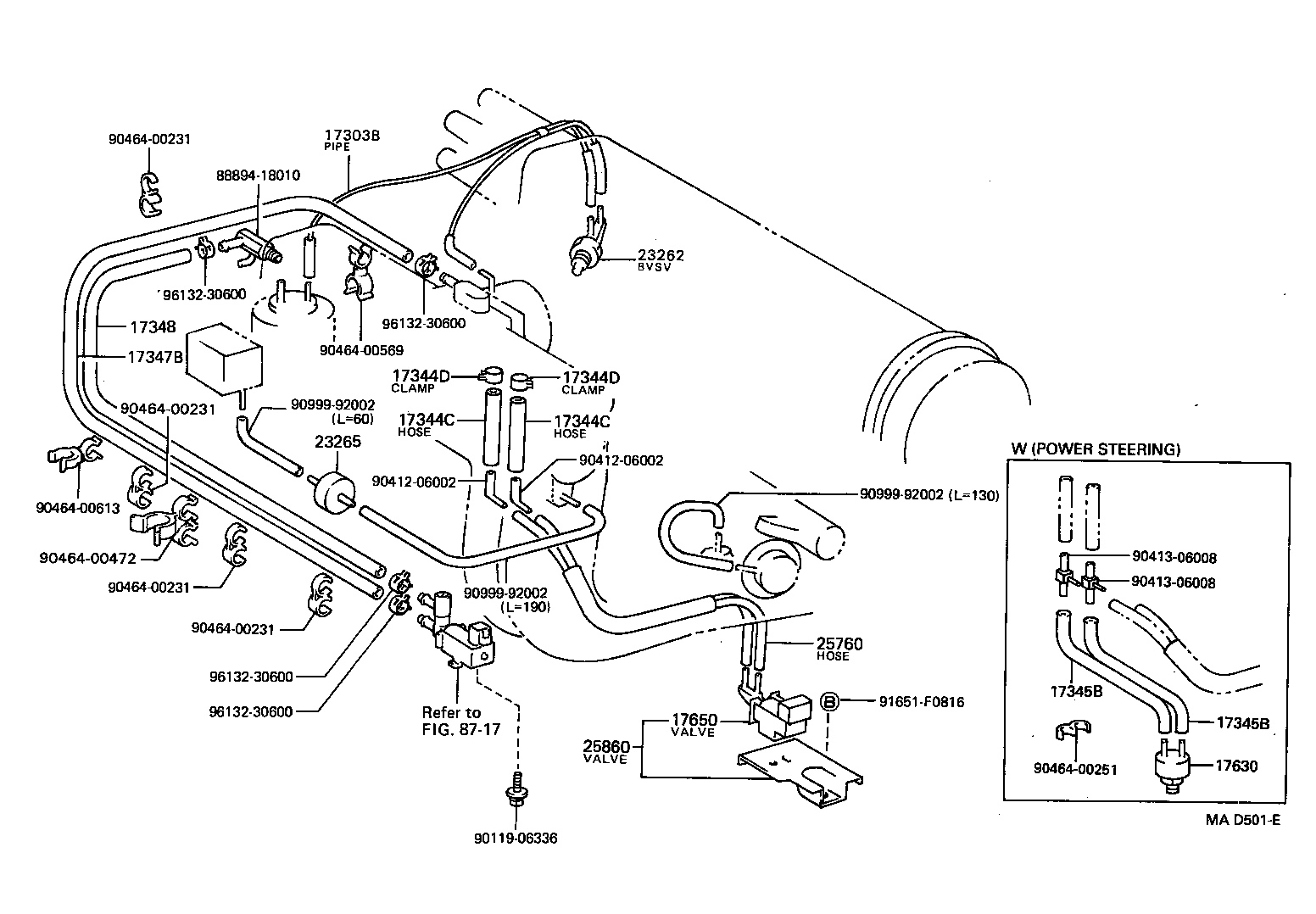

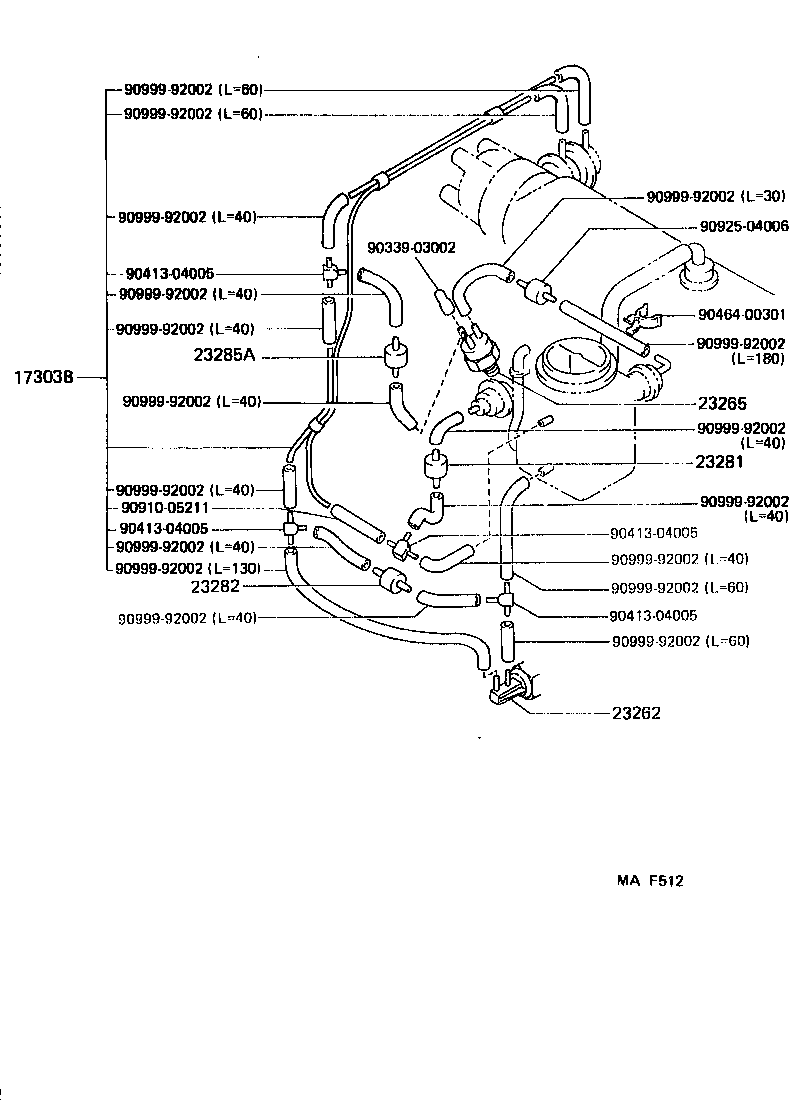

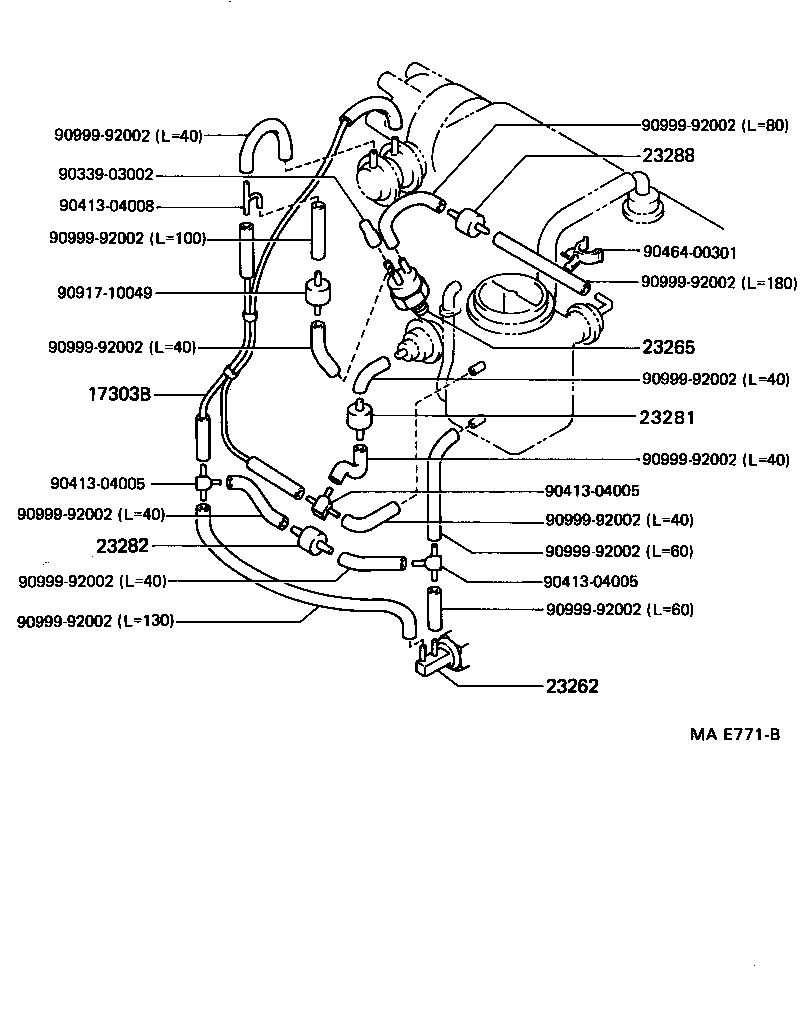

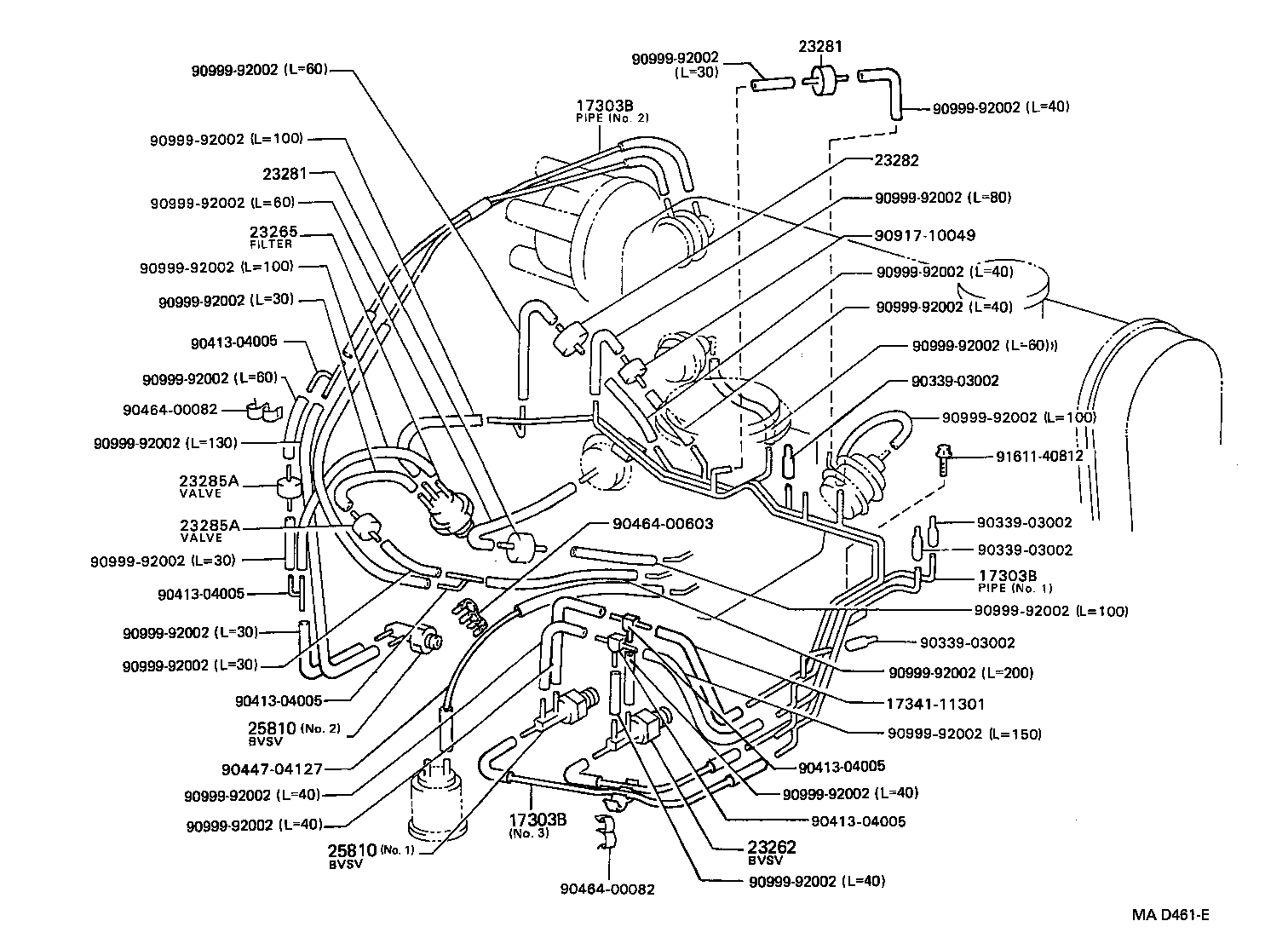

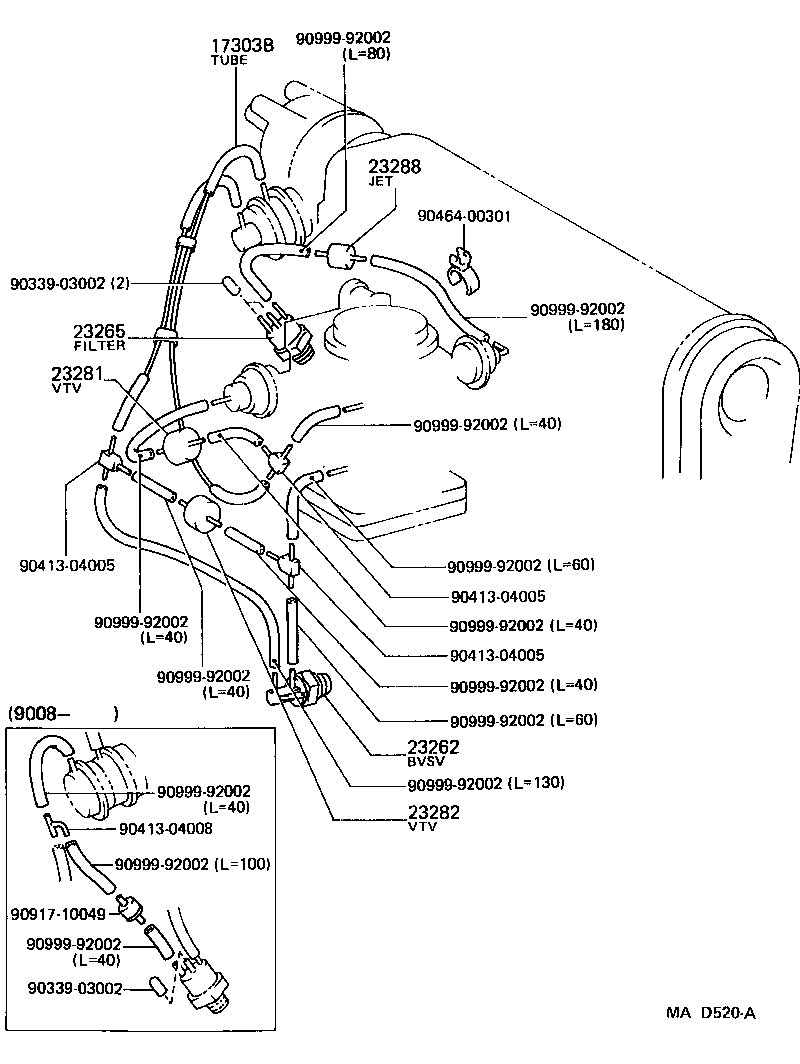

Figure MA9504B MA9504B 1989-12 → — Figure MAD503B MAD503B 1989-12 → 1991-06 Figure MAD520A MAD520A 1989-12 → 1991-06 Figure MAE771B MAE771B 1991-06 → 1992-01 Figure MAF512 MAF512 1992-01 → 1992-12 Figure MAD461E MAD461E 1989-12 → 1992-12 Figure MAD501E MAD501E 1989-12 → — Figure MA9504B MA9504B 1989-12 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17347B Hose, Air, NO.7
17348 Hose, Air, NO.8
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
