Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11

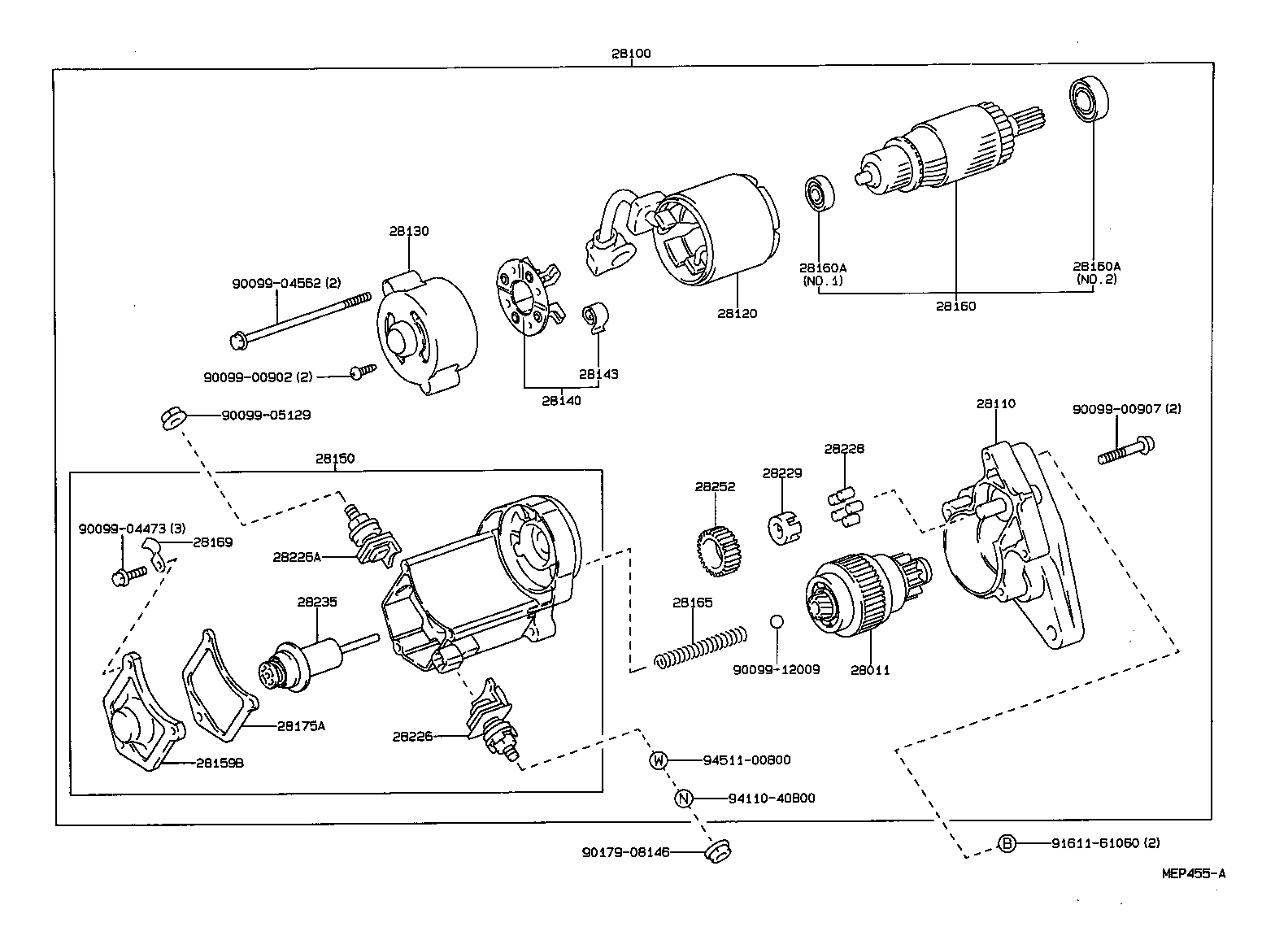

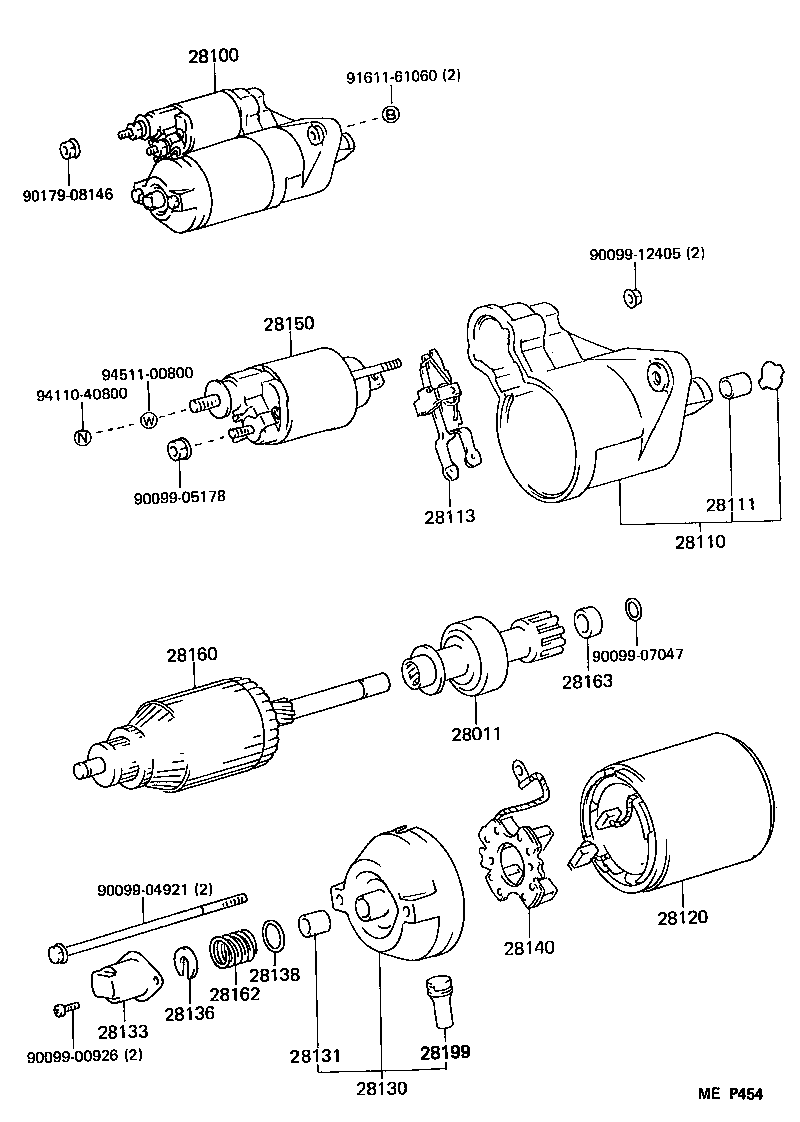

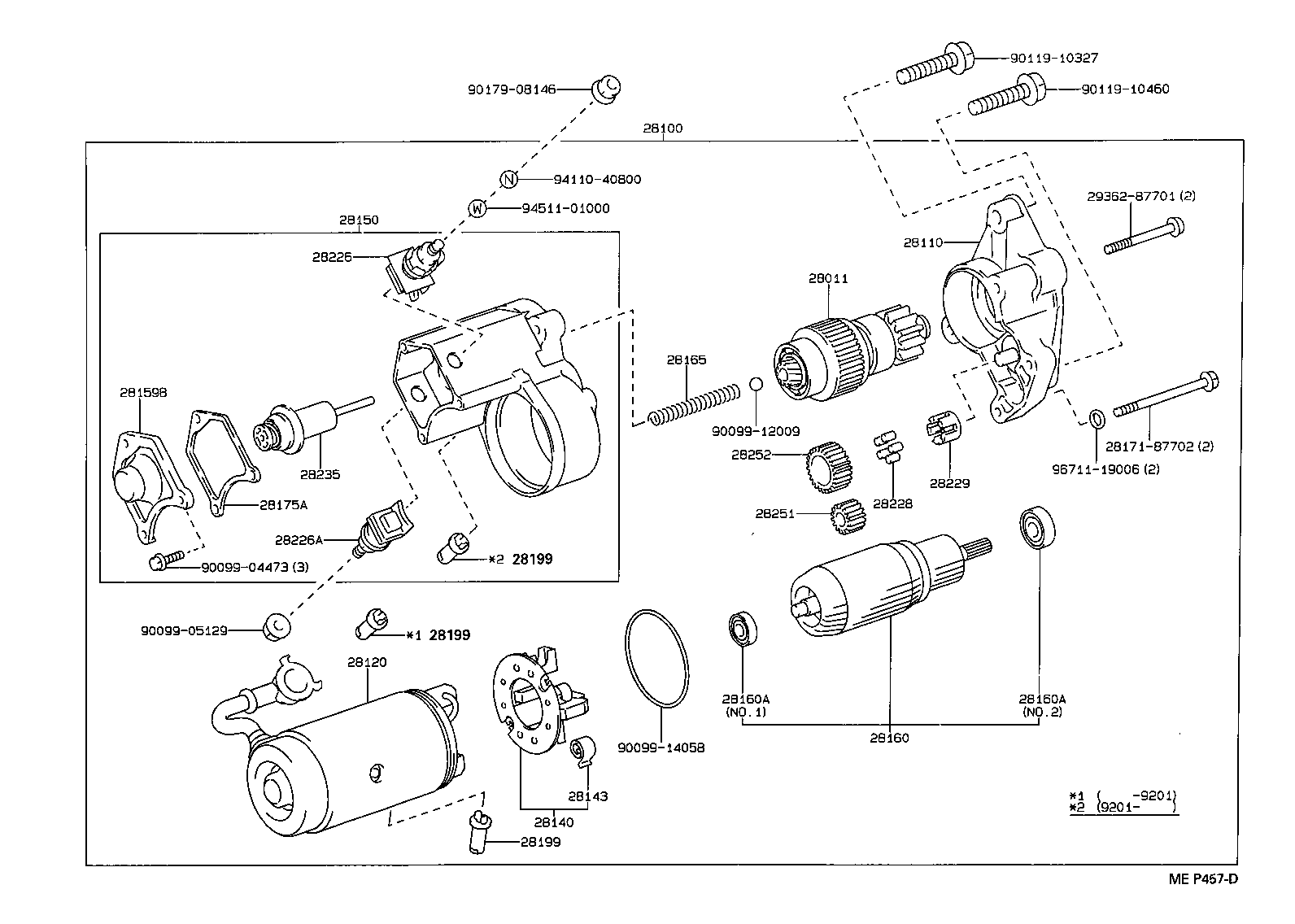

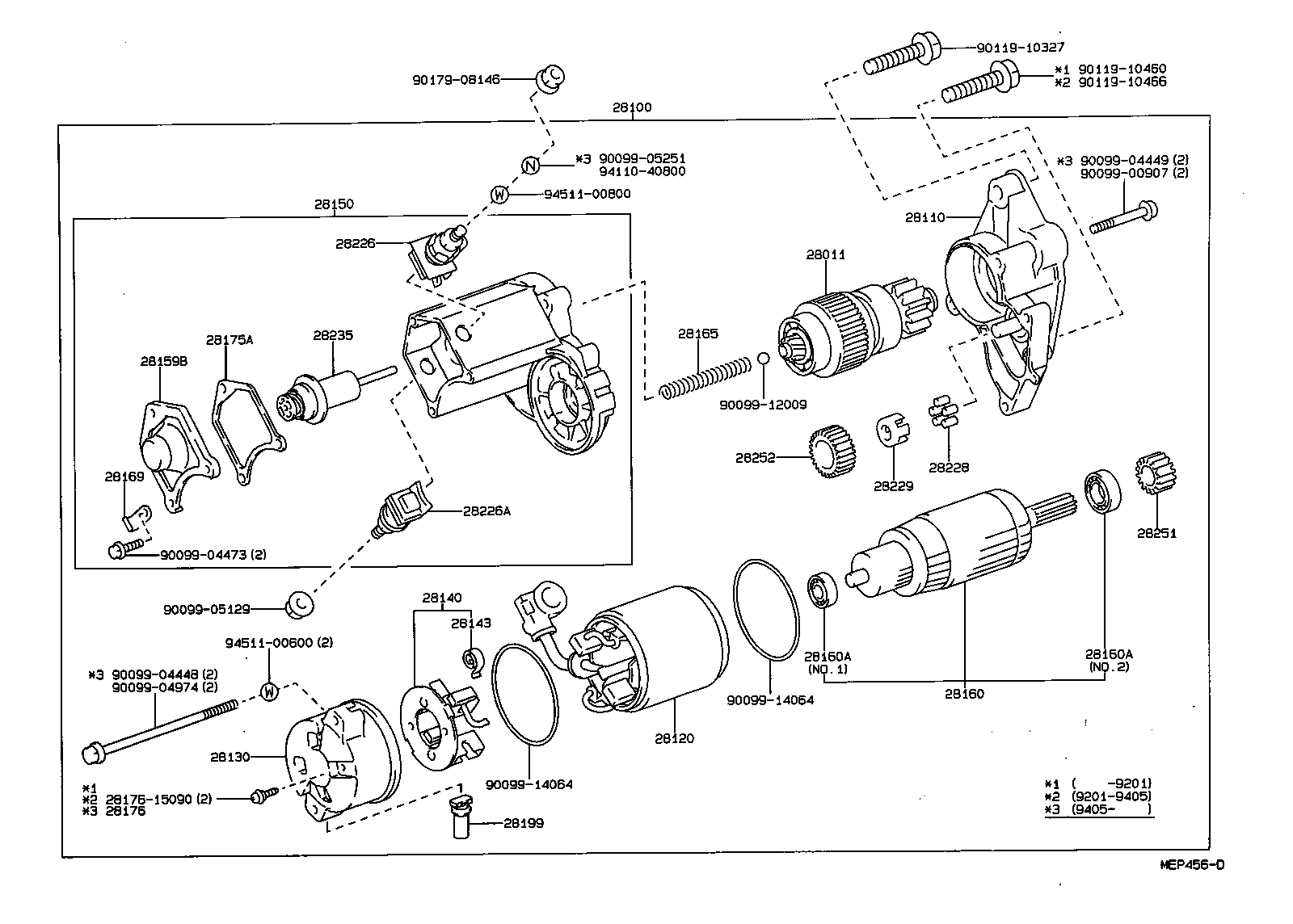

Starter
34 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28110A | Bearing(FOR STARTER HOUSING) |
| 28111 | Bush(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28131 | Bush, Commutator End Frame |
| 28133 | Cover, Bearing(FOR END FRAME) |
| 28136 | Plate, Starter Lock |
| 28138 | Rubber(FOR STARTER BEARING COVER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28146 | Holder, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28159B | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28162 | Spring, Starter Brake |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28165 | Spring, Starter Magnet Switch Return |
| 28169 | Clamp, Starter Motor Lead Wire |
| 28175A | Gasket, Magnet Switch Cover |
| 28176 | Screw, Starter |
| 28199 | Cover, Starter |
| 28226 | Starter Kit, Battery Terminal |
| 28226A | Starter Kit, Motor Terminal |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28235 | Plunger, Magnet Switch |
| 28251 | Pinion, Starter Drive |
| 28252 | Gear, Starter Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
