Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11
Brake Tube & Clamp
41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

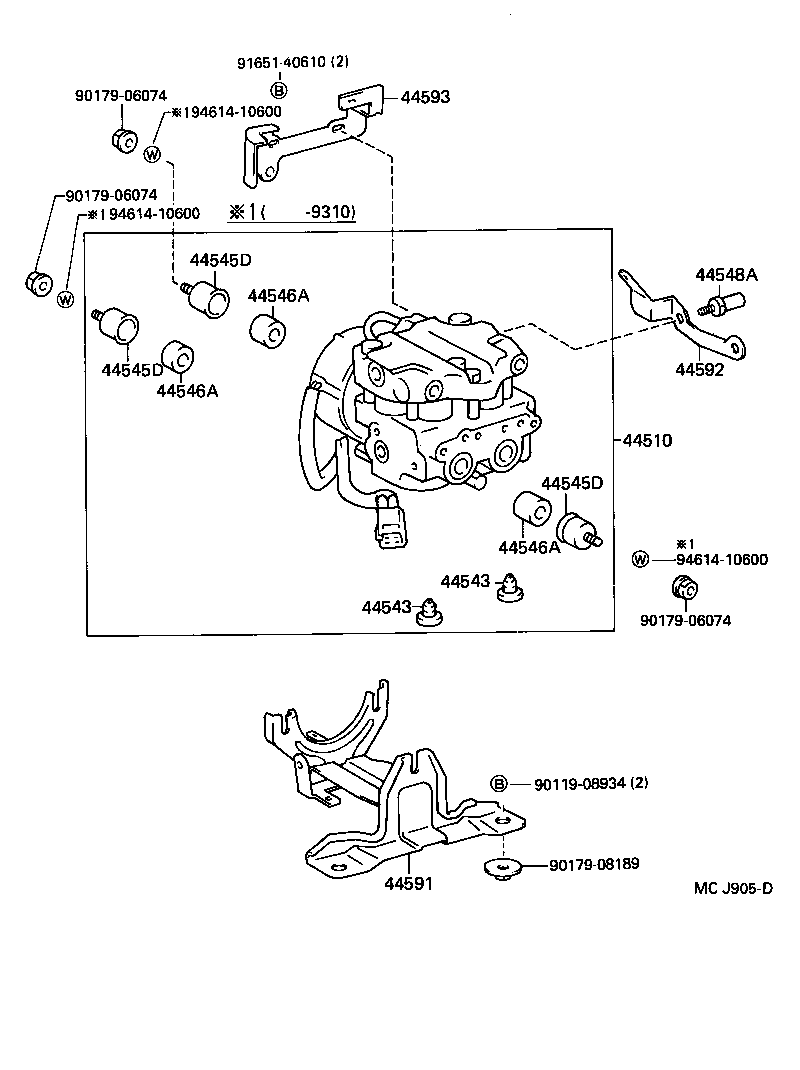

| 44510 | Actuator Assy, Brake |
| 44543 | Cap, Rubber |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44548A | Bolt, Brake Actuator Protector |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44592 | Bracket, Brake Actuator, NO.2 |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 47150 | Valve Assy, Proportioning |

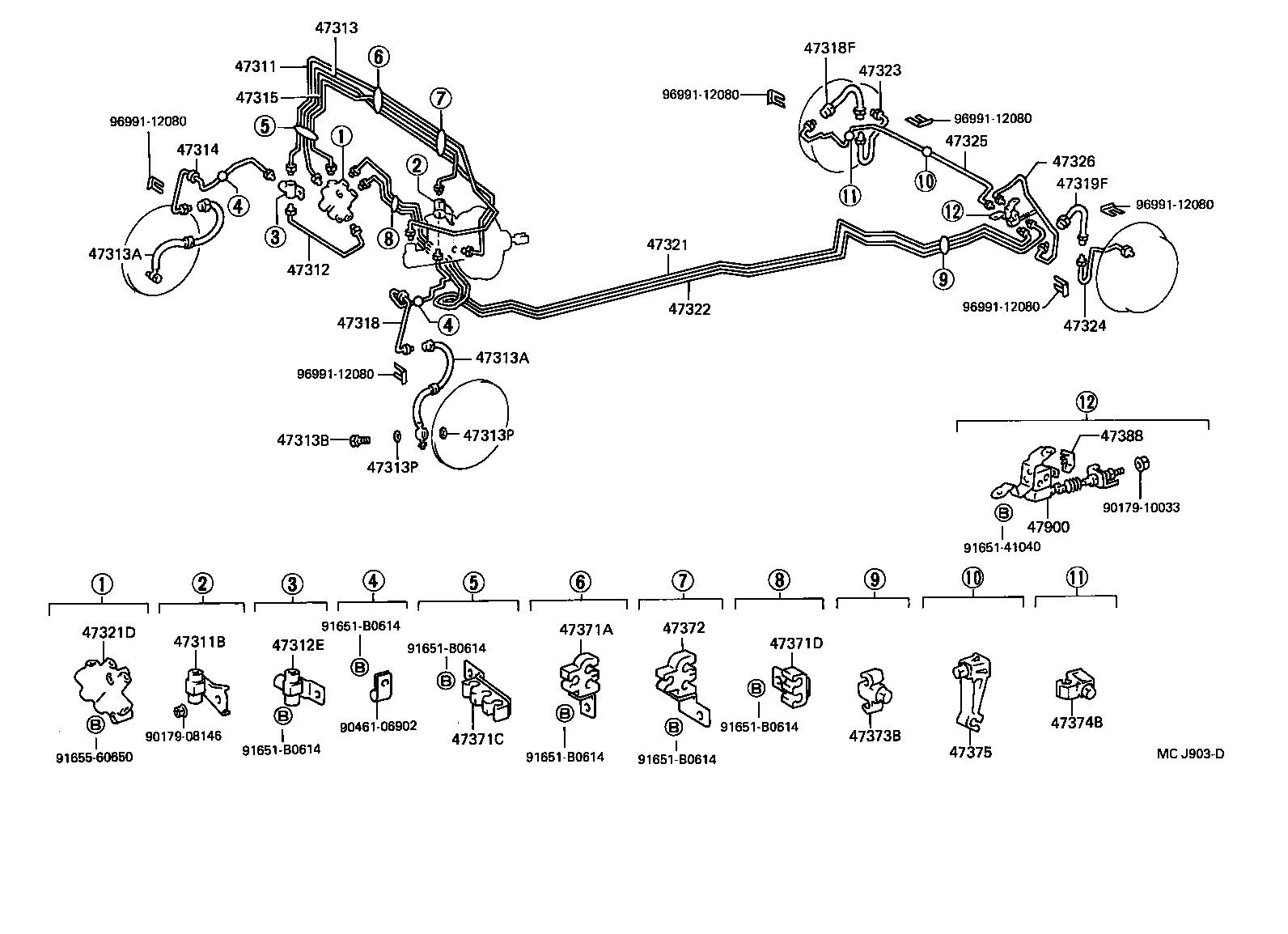

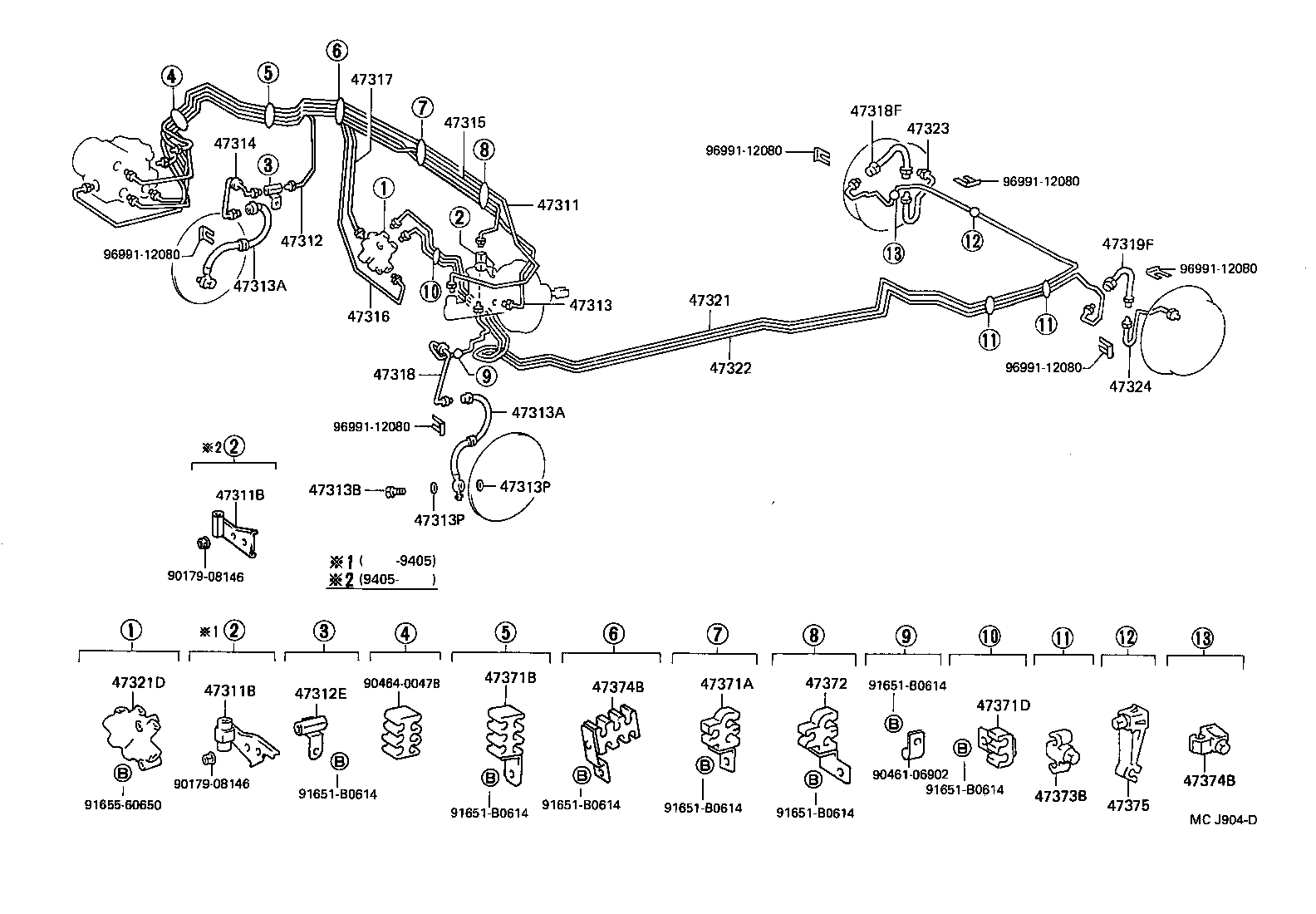

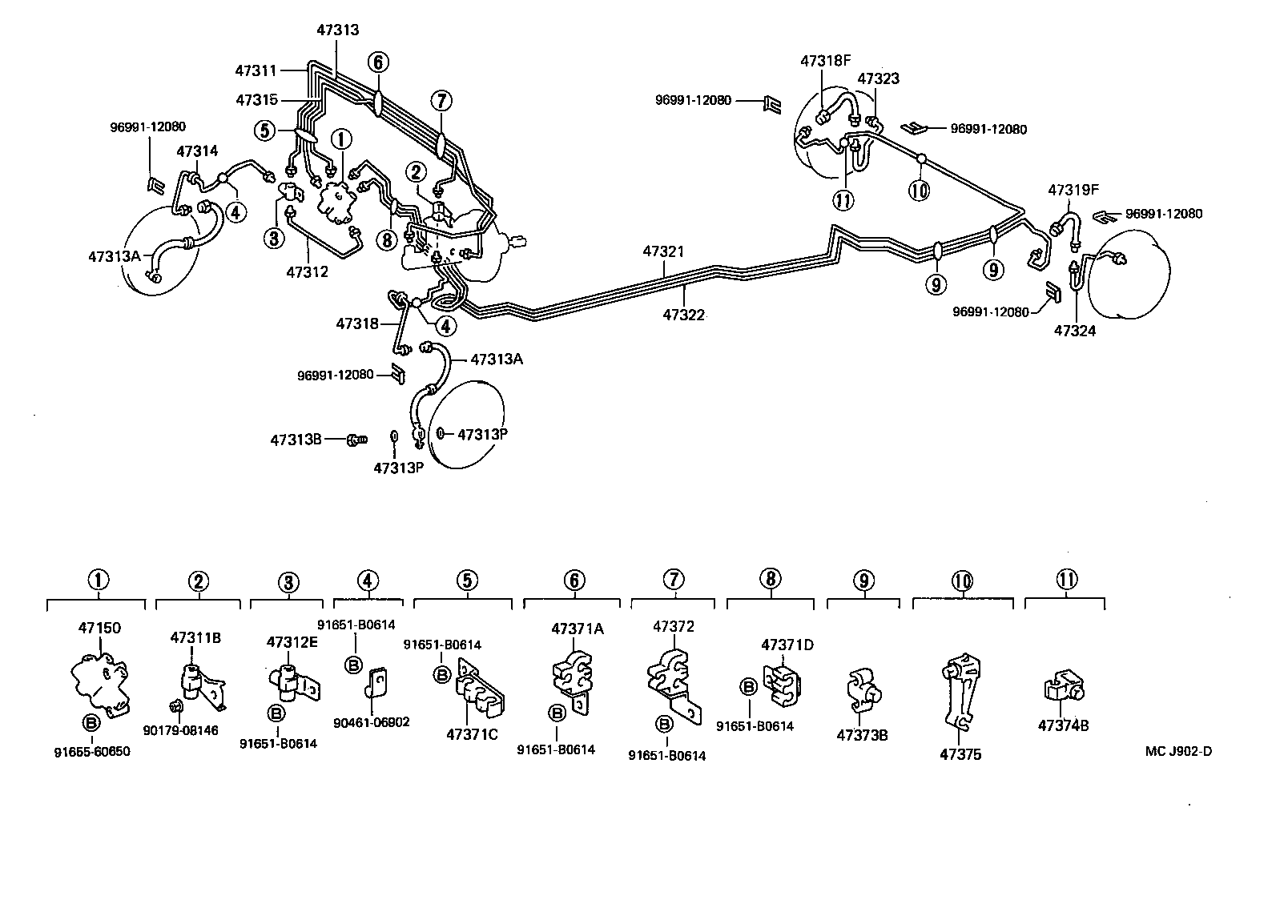

| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47388 | Protector, Brake Tube, Lower |
| 47900 | Valve Assy, Load Sensing W/Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
