Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11

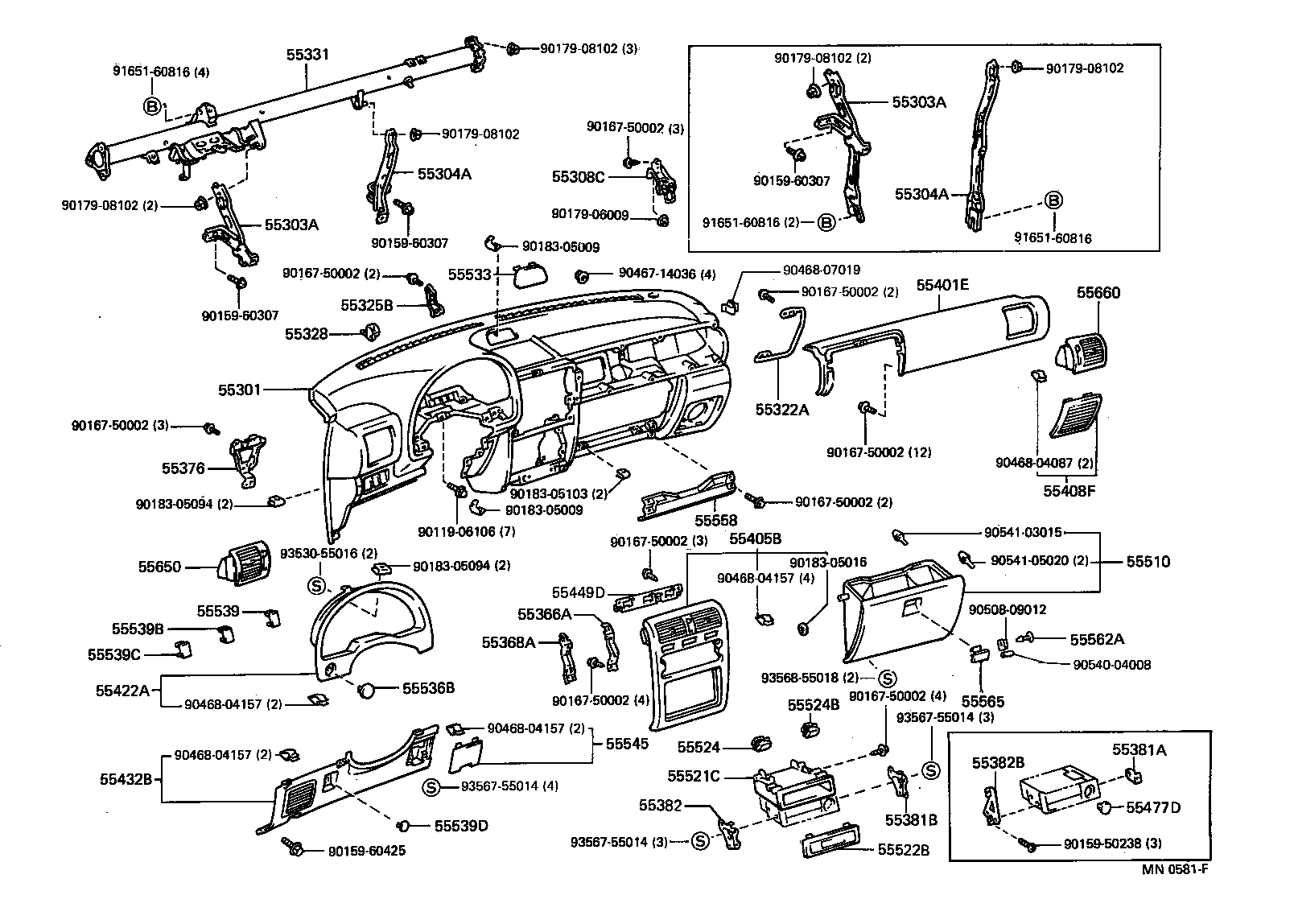

Instrument Panel & Glove Compartment

40 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55303A	Stay Sub-assy, Instrument Panel
55304A	Stay Sub-assy, Instrument Panel, Center
55308C	Bracket Sub-assy, Instrument Panel, Center
55322A	Bracket, Instrument Panel, NO.2
55325B	Bracket, Instrument Panel, NO.5
55328	Pin, Instrument Panel, NO.1
55331	Reinforcement, Instrument Panel
55366A	Bracket, Radio Mounting, NO.1
55368A	Bracket, Radio Mounting, NO.2
55376	Bracket, Instrument Panel Mounting, NO.1
55381A	Bracket, Finish Panel Mounting
55381B	Bracket, Finish Panel Mounting, NO.1
55382	Bracket, Finish Panel Mounting, NO.2
55382B	Bracket, Finish Panel Mounting
55401E	Pad Sub-assy, Instrument Panel Safety
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55422A	Panel, Instrument Cluster Finish, Lower
55432B	Panel, Instrument Panel Finish, Lower
55449D	Base, Switch
55477D	Cover, Cigarette Lighter Hole
55510	Door Assy, Glove Compartment
55521C	Cover, Stereo Opening
55522B	Cover, Radio Tuner Opening
55524	Cover, Switch Bace Hole
55524B	Cover, Switch Base Hole
55533	Cover, Auto Clock Hole
55536B	Cover, Light Control Switch Hole
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55539C	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55558	Reinforcement, Glove Compartment Door
55562A	Link, Glove Compartment Door Lock
55565	Handle, Glove Compartment Door Lock
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
