Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11

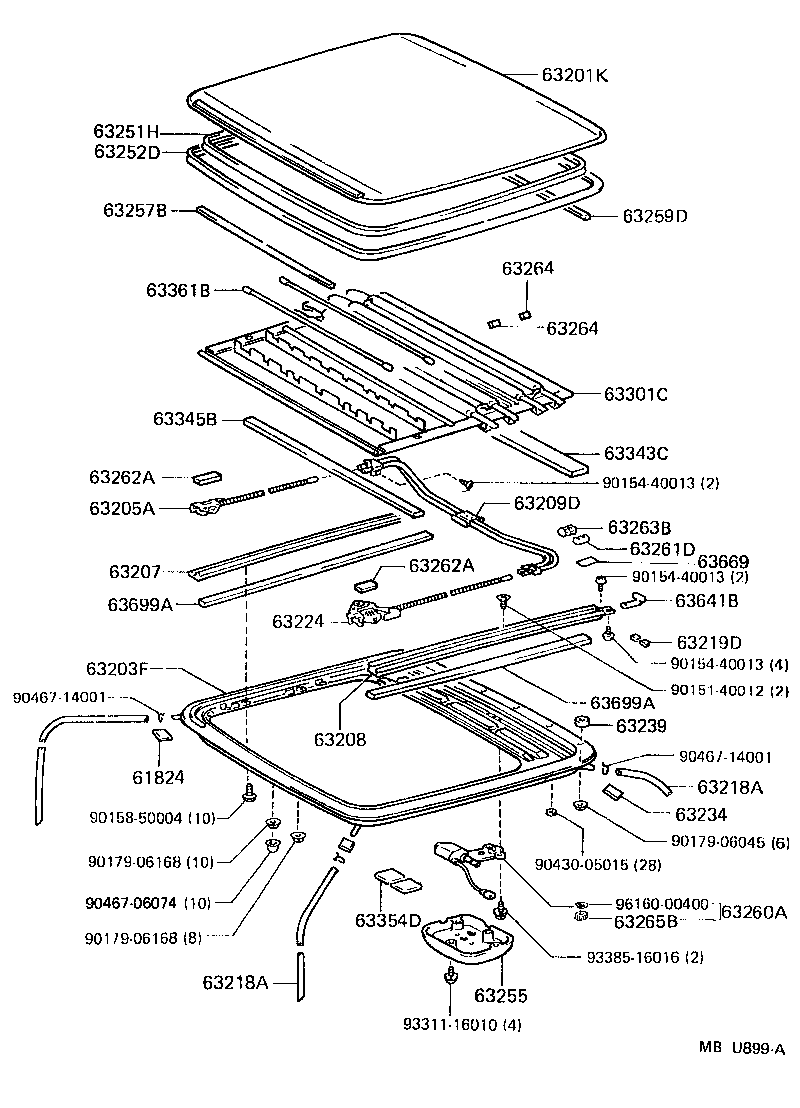

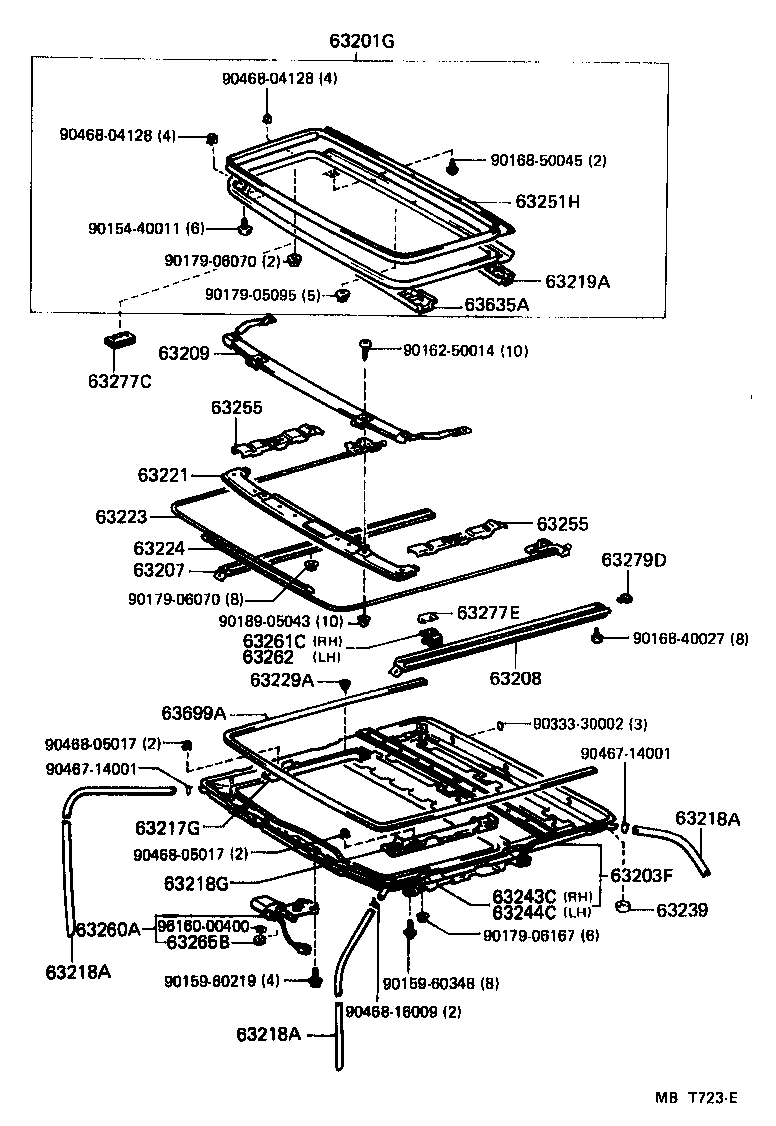

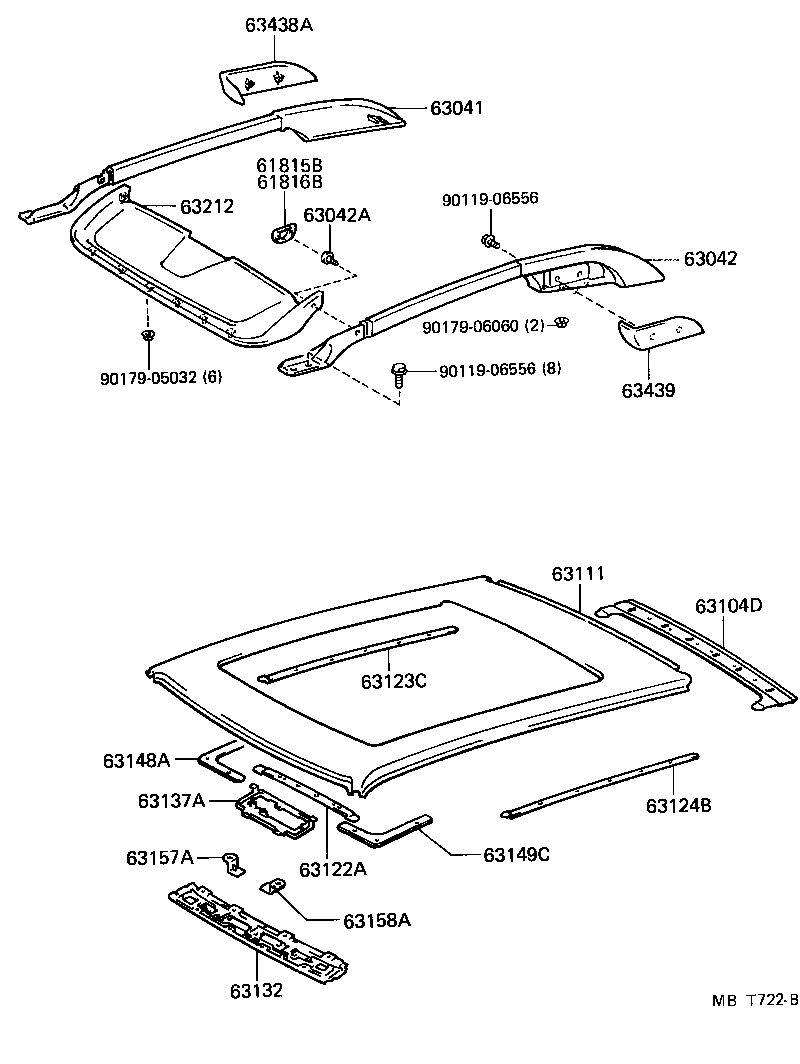

Roof Panel & Back Window Glass
70 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61815B | Cover, Roof Side, Inner Upper RH |
| 61816B | Cover, Roof Side, Inner Upper LH |
| 61824 | Plate, Noise Control, NO.1 |
| 63041 | Leg Sub-assy, Roof Rack, Front RH |
| 63042 | Leg Sub-assy, Roof Rack, Front LH |
| 63042A | Bolt |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63111 | Panel, Roof |
| 63122A | Reinforcement, Roof Panel, Front |
| 63123C | Reinforcement, Roof Panel |
| 63124B | Reinforcement, Roof Panel, Front LH |
| 63132 | Panel, Windshield Header, Inner |
| 63135A | Frame, Back Door Opening, Lower |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149C | Reinforcement, Roof Panel Side, LH |
| 63157A | Reinforcement, Wind Shield Header Panel Side, RH |
| 63158A | Reinforcement, Wind Shield Header Panel Side, LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63201K | Canvas Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63209D | Casing Sub-assy, Sliding Roof Cable |
| 63212 | Panel, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63219D | Cushion, Sliding Roof Guide Rail |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63234 | Protector, Slide Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63257B | Seal, Sliding Roof |
| 63259D | Seal, Sliding Roof, NO.2 |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63261D | Shoe, Sliding Roof |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63262A | Seal, Sliding Roof, Front NO.1 |
| 63263B | Shoe, Sliding Roof |
| 63264 | Seal, Sliding Roof, Front NO.3 |
| 63265B | Gear, Sliding Roof Drive |
| 63277C | Shim, Sliding Roof Panel |
| 63277E | Shim, Sliding Roof Panel |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63301C | Strength Sub-assy, Roof |
| 63343C | Pad, Roof Silencer, Rear |
| 63345B | Pad, Roof Silencer, Center |
| 63354D | Pad, Roof Headlining Front Side |
| 63361B | Support, Sliding Roof Headlining |
| 63438A | Cover, Roof Rack End, NO.1 |
| 63439 | Cover, Roof Rack End, NO.2 |
| 63635A | Garnish, Sliding Roof, Front |
| 63641B | Stopper, Sliding Roof Guide Rail |
| 63669 | Cushion, Roof Protector |
| 63699A | Seal, Sliding Roof Guide Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
