Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

28 part groups · 3 illustrations

Illustrations

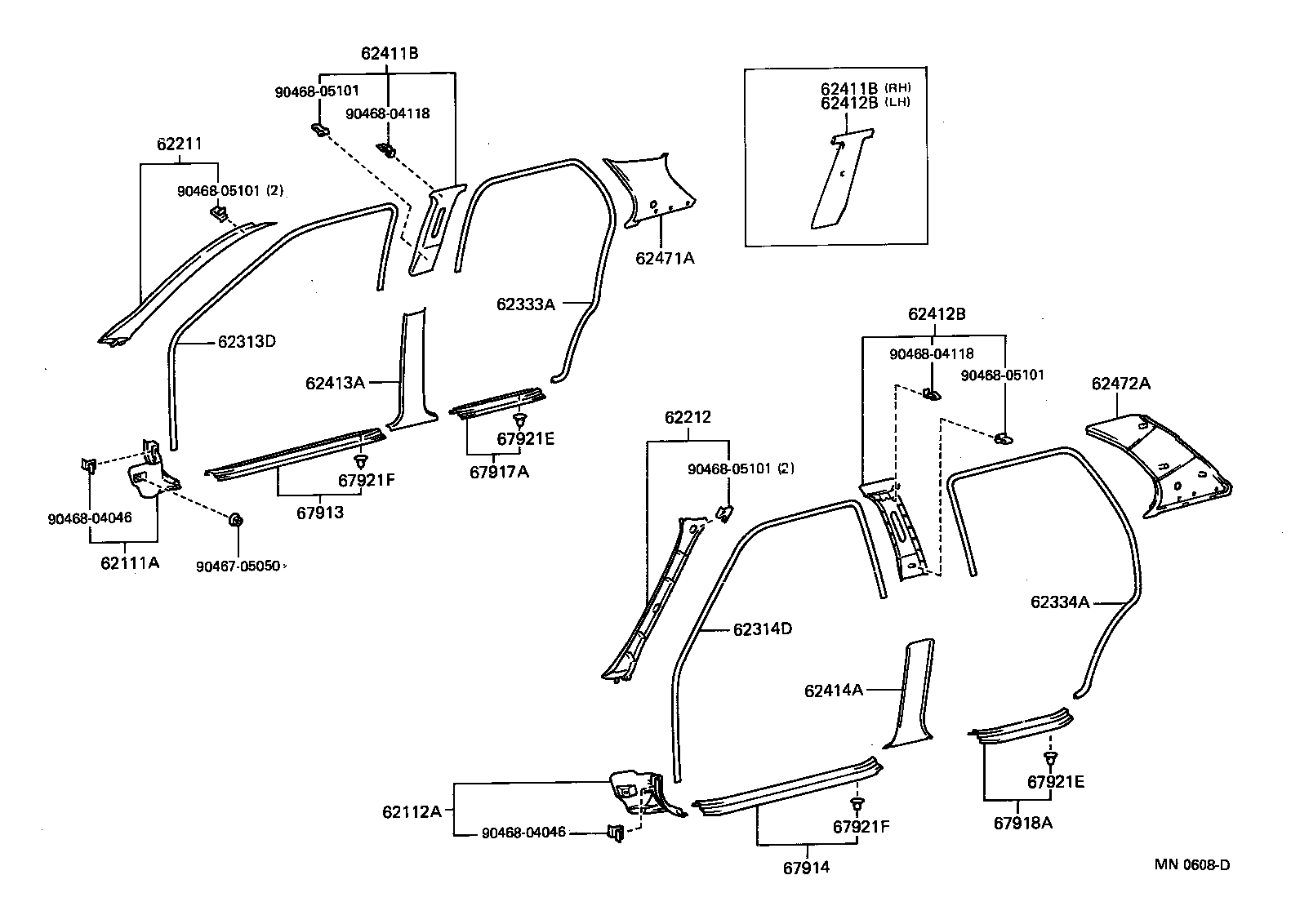

Figure MN0607D MN0607D 1989-12 → — Figure MN0608D MN0608D 1989-12 → — Figure MN2182A MN2182A 1989-12 → —

Part groups

PNCDescription
62111A Trim Sub-assy, Cowl Side, RH
62112A Trim Sub-assy, Cowl Side, LH
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62421C Cover, Center Pillar Garnish, NO.1 RH
62422A Cover, Center Pillar Garnish, NO.1 LH
62471A Garnish, Roof Side, Inner RH
62471J Clip (FOR ROOF SIDE GARNISH)
62472A Garnish, Roof Side, Inner LH
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62594E Pocket, Quarter Trim, RH
62595E Pocket, Quarter Trim, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67921E Retainer, Rear Door Scuff Plate
67921F Retainer, Front Door Scuff Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
