Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 3 illustrations

Illustrations

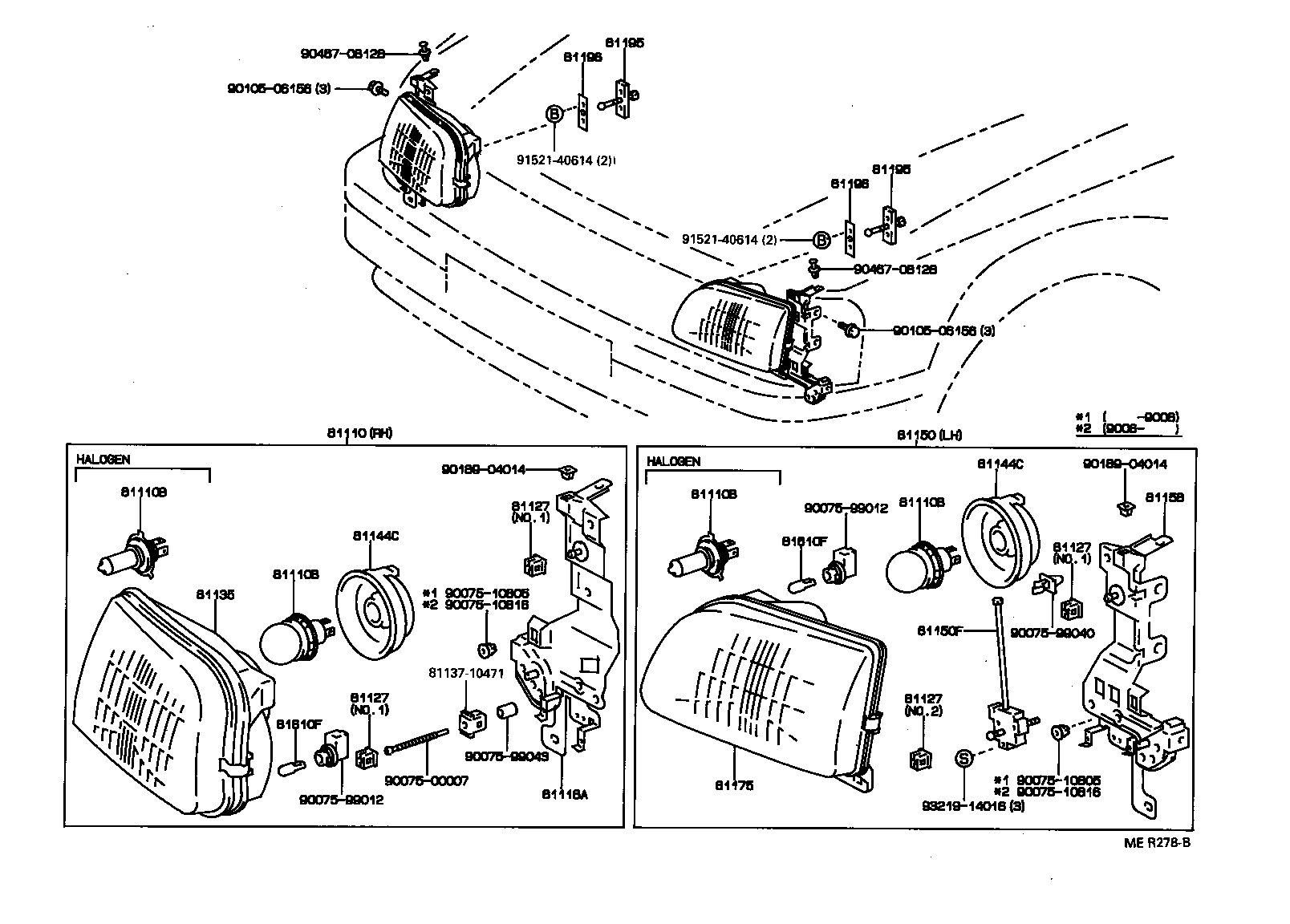

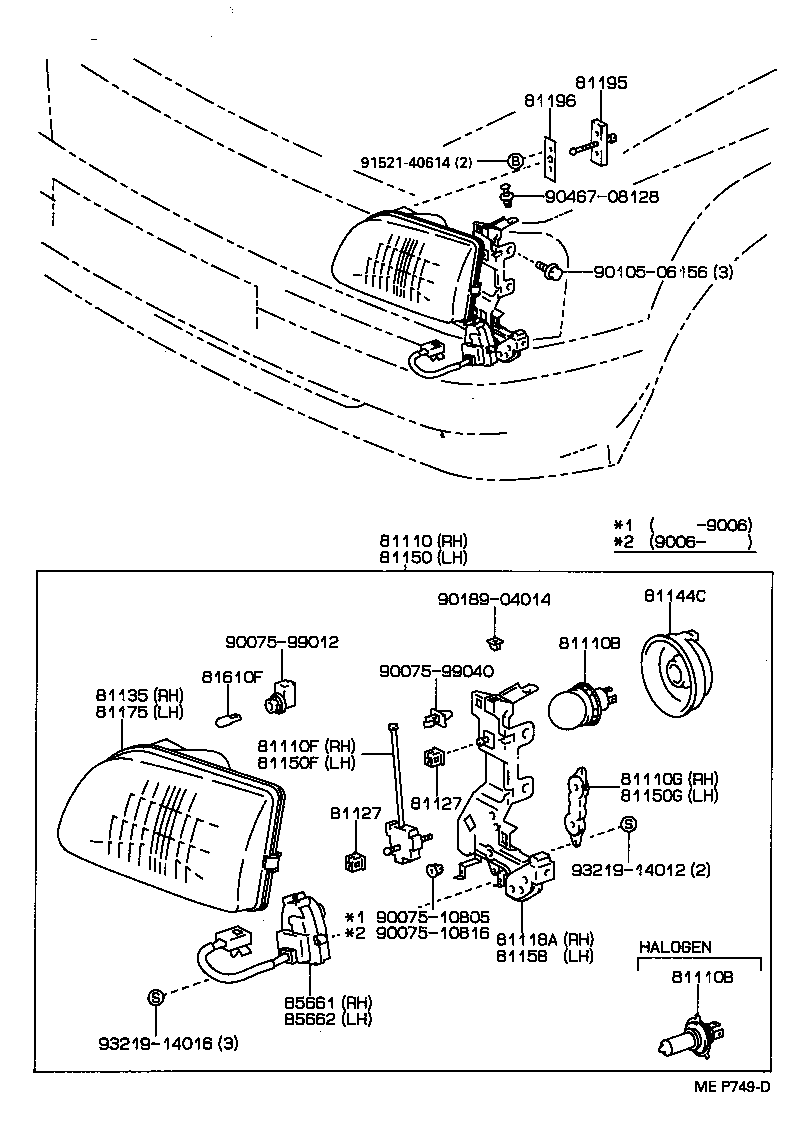

Figure MEP748D MEP748D 1989-12 → 1996-01 Figure MEP749D MEP749D 1989-12 → 1996-01 Figure MER278B MER278B 1989-12 → 1996-01

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110F Gear Unit Assy, RH NO.1
81110G Gear Unit Assy, RH NO.2
81118A Bracket, Headlamp, RH
81127 Bearing, Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81150F Gear Unit Assy, LH NO.1
81150G Gear Unit Assy, LH NO.2
81158 Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81196 Retainer, Headlamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
