Toyota Starlet

1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 11 illustrations

Illustrations

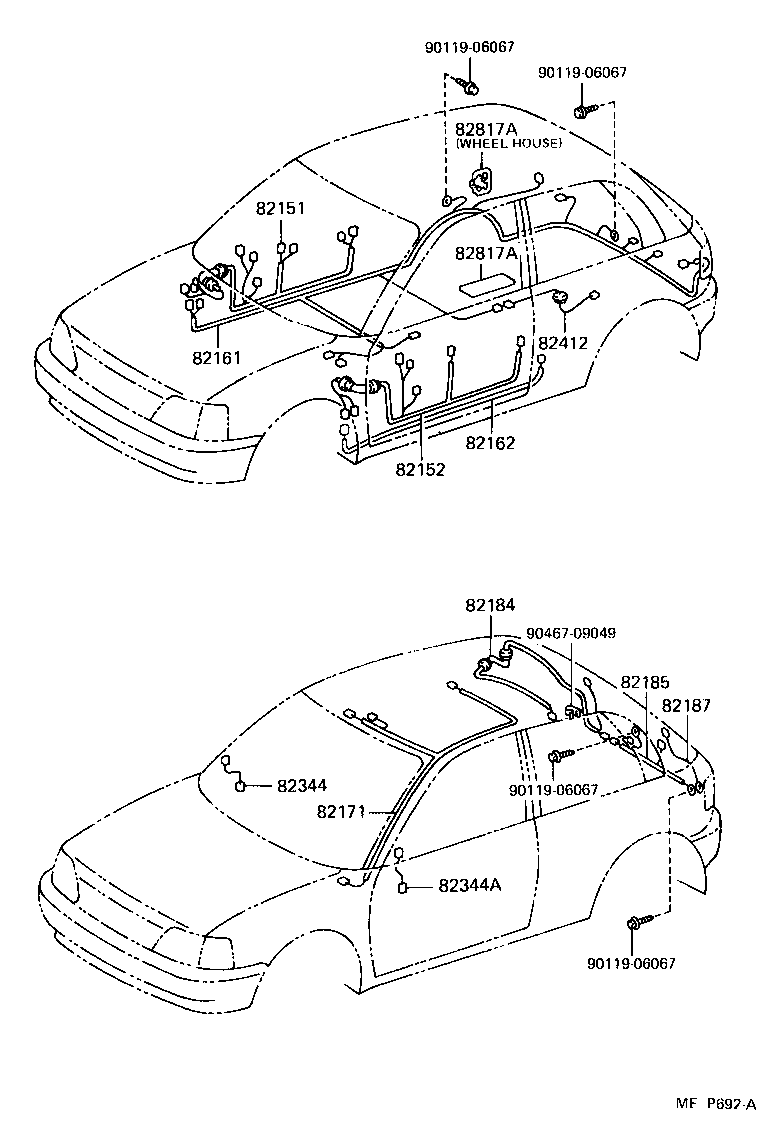

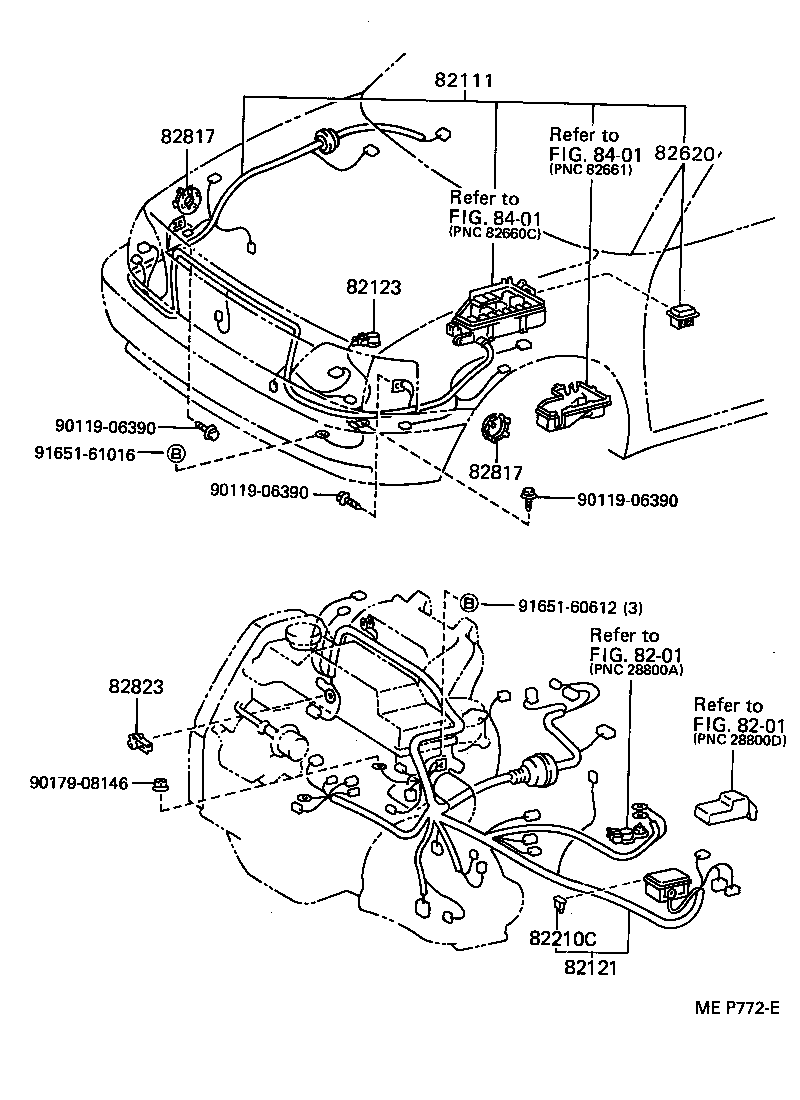

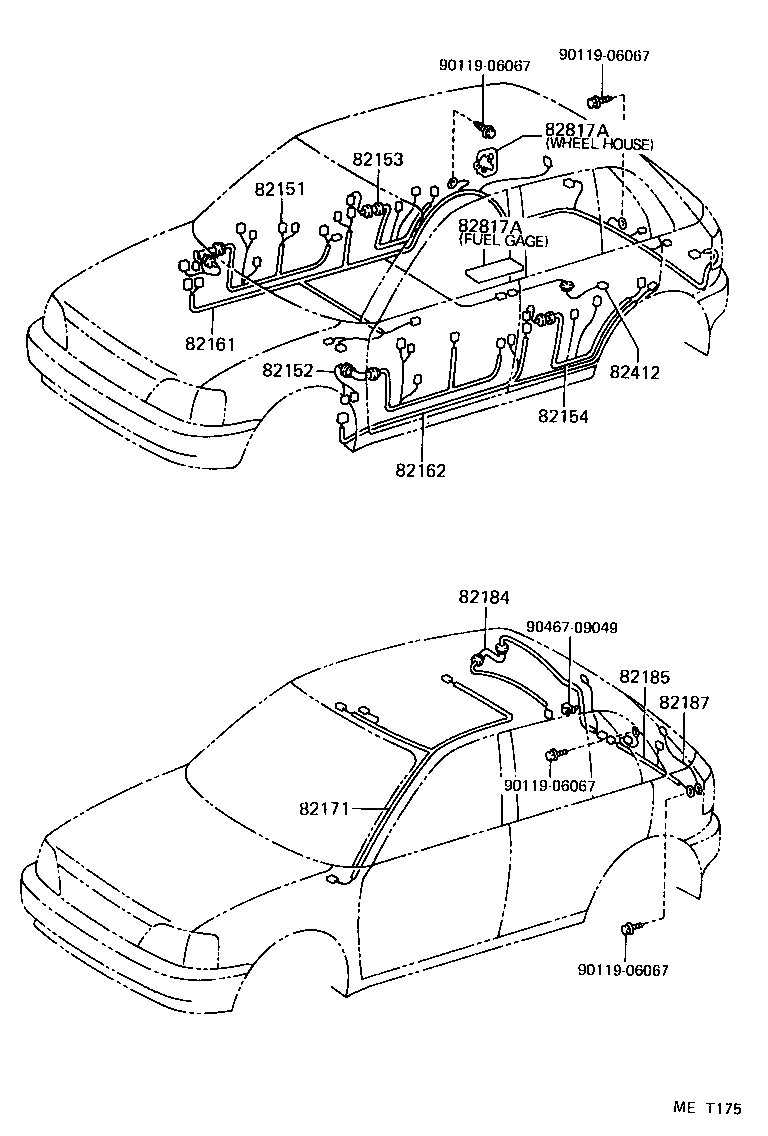

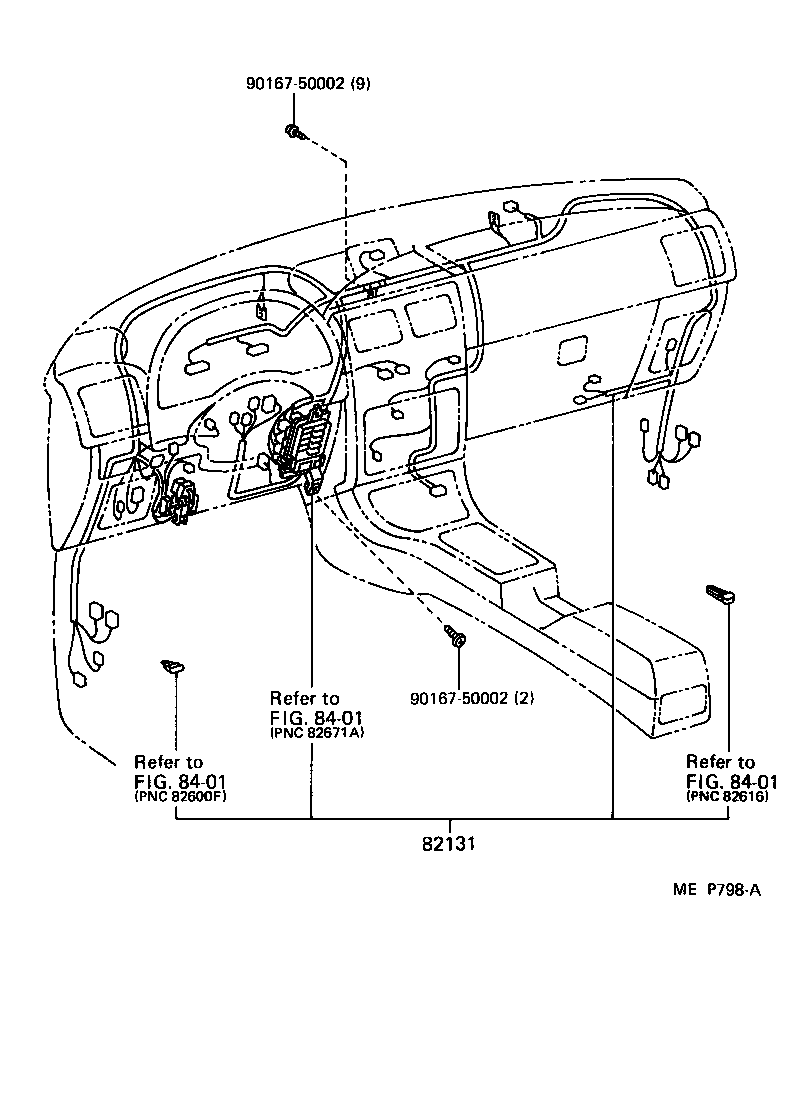

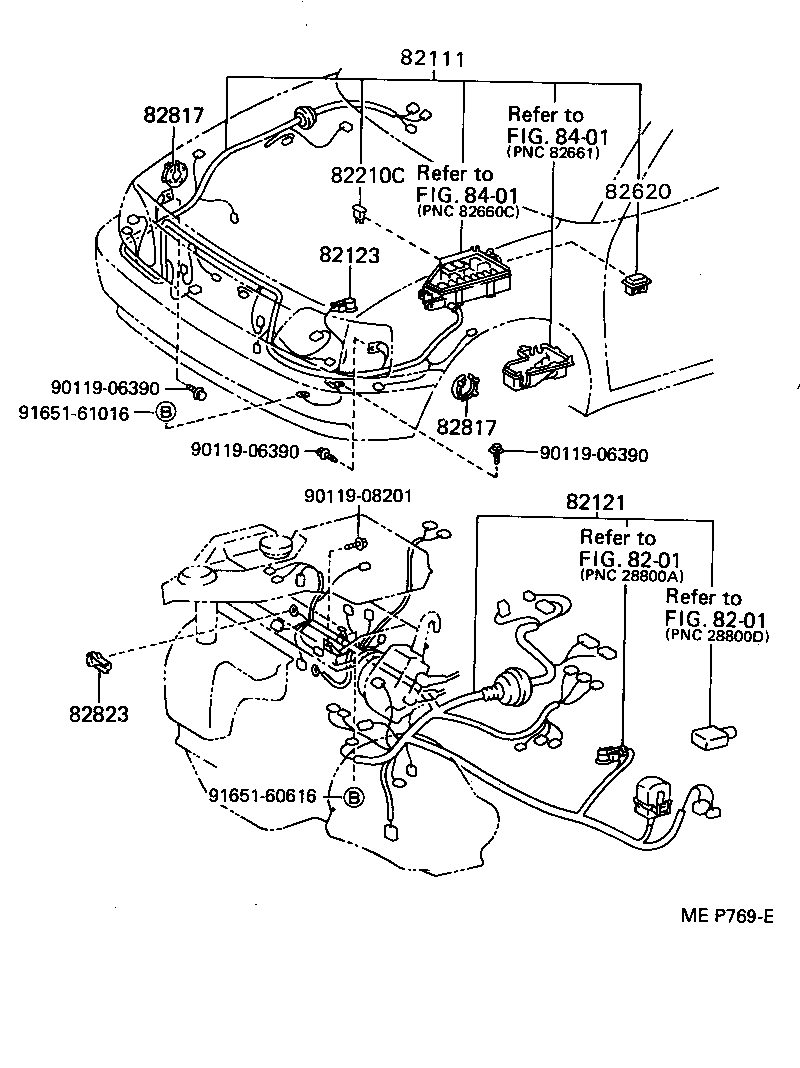

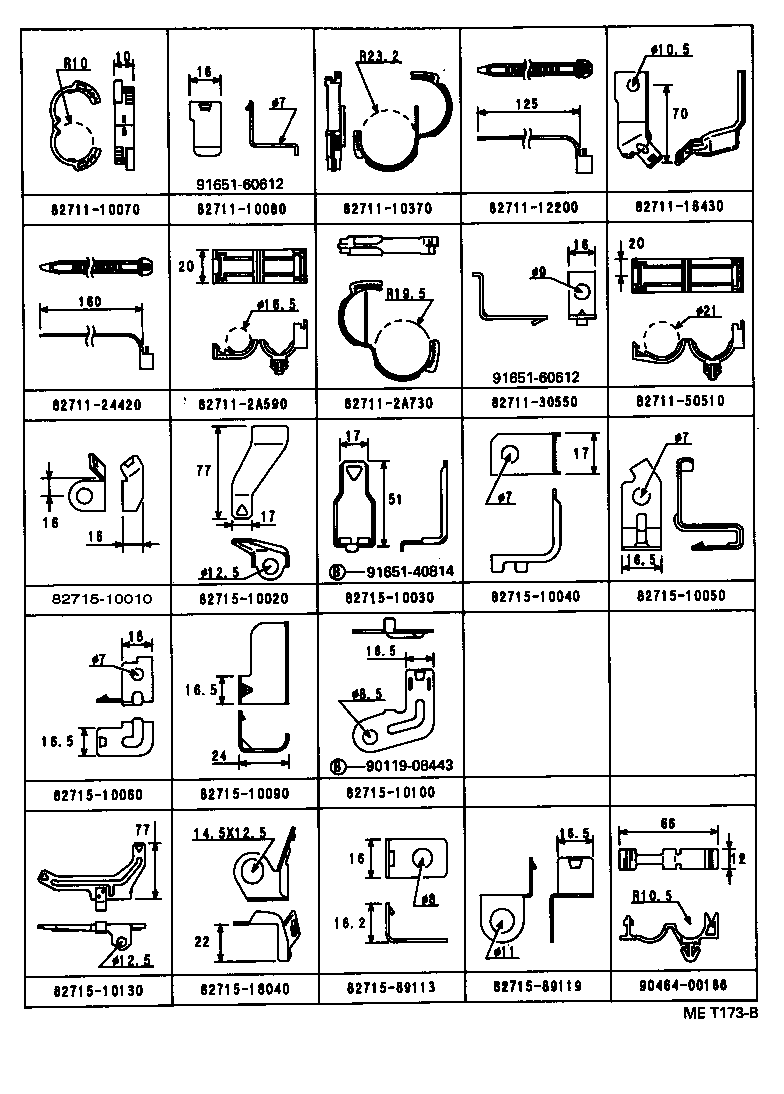

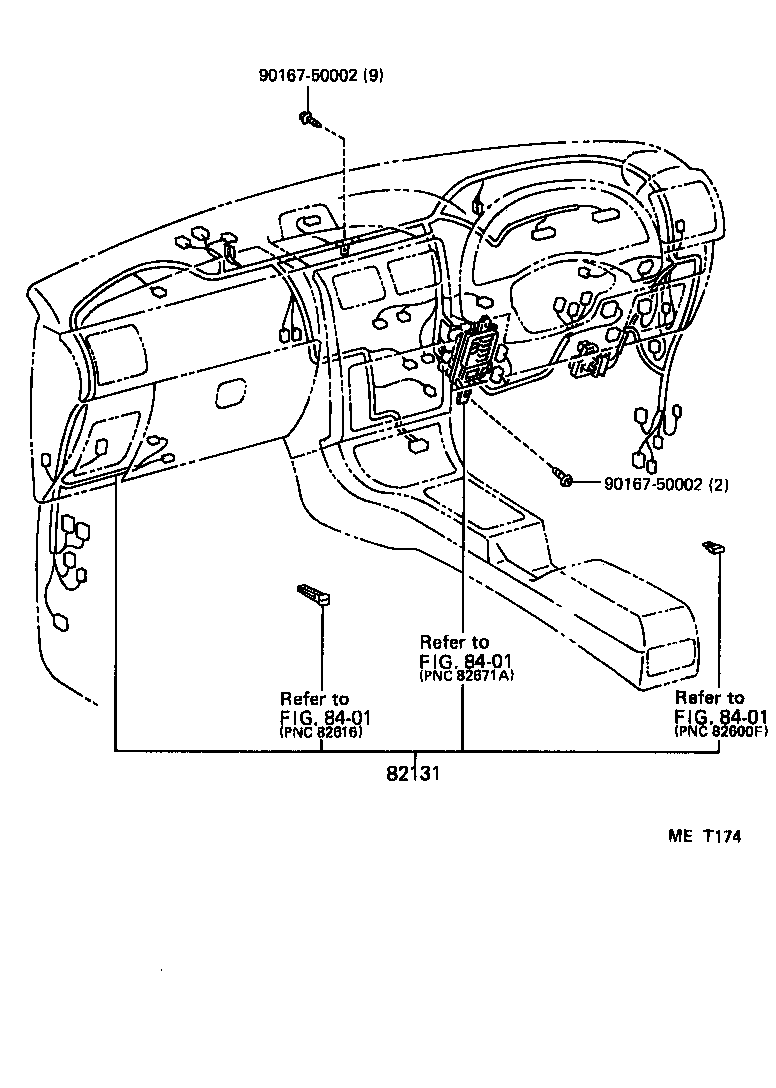

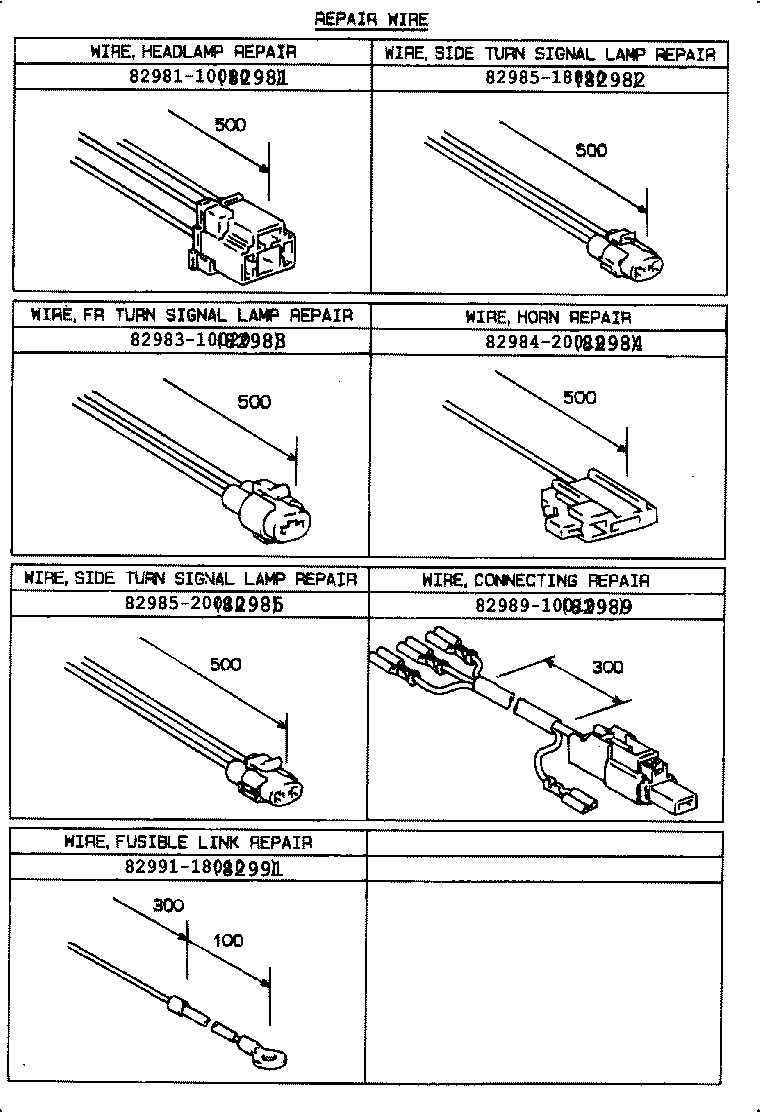

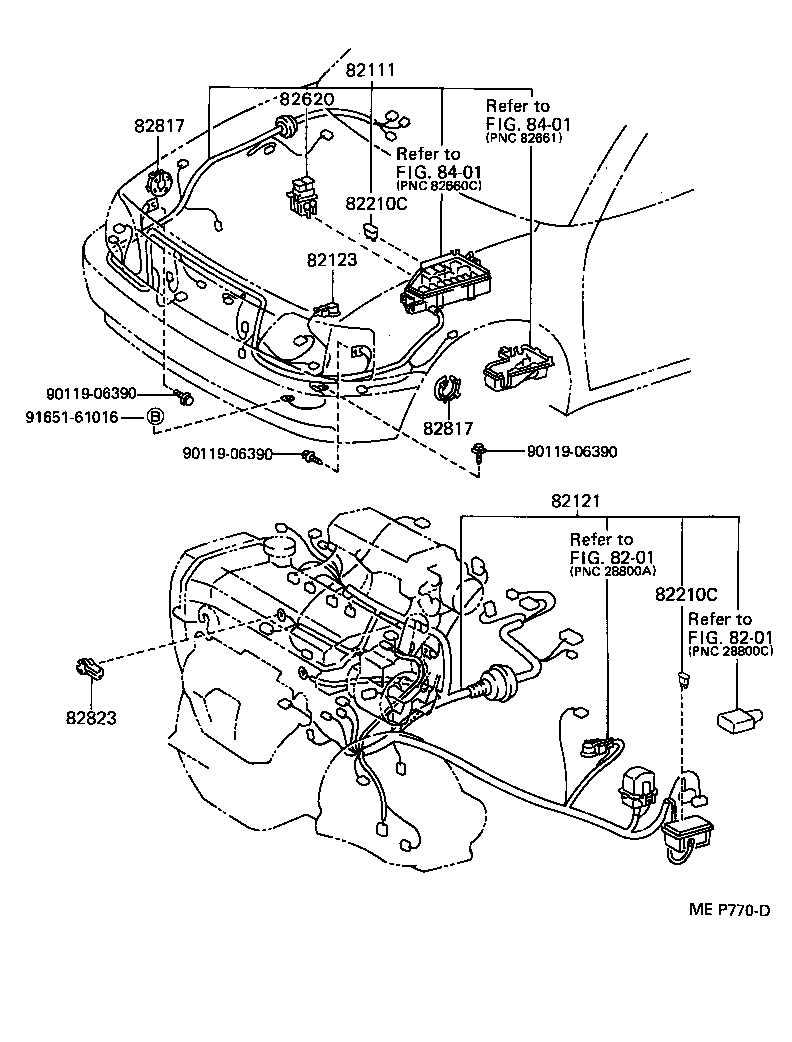

Figure MEP768D MEP768D 1989-12 → 1992-12 Figure MEP769E MEP769E 1989-12 → 1992-12 Figure MEP770D MEP770D 1989-12 → 1996-01 Figure MEP772E MEP772E 1989-12 → 1996-01 Figure MET174 MET174 1989-12 → 1996-01 Figure MEP798A MEP798A 1989-12 → 1996-01 Figure MET175 MET175 1989-12 → 1996-01 Figure MEP692A MEP692A 1989-12 → 1996-01 Figure MET176A MET176A 1989-12 → 1996-01 Figure 828695 828695 1989-12 → 1996-01 Figure MET173B MET173B 1989-12 → 1996-01

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82989 Wire, Connecting Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
