Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11

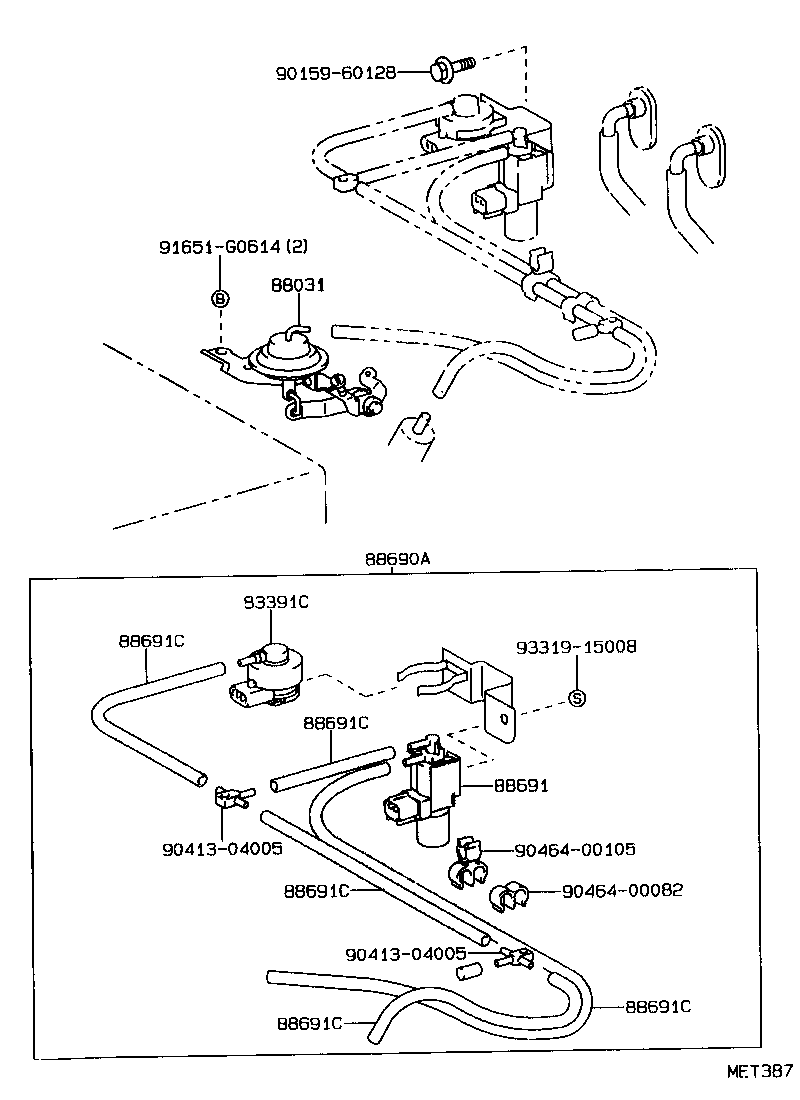

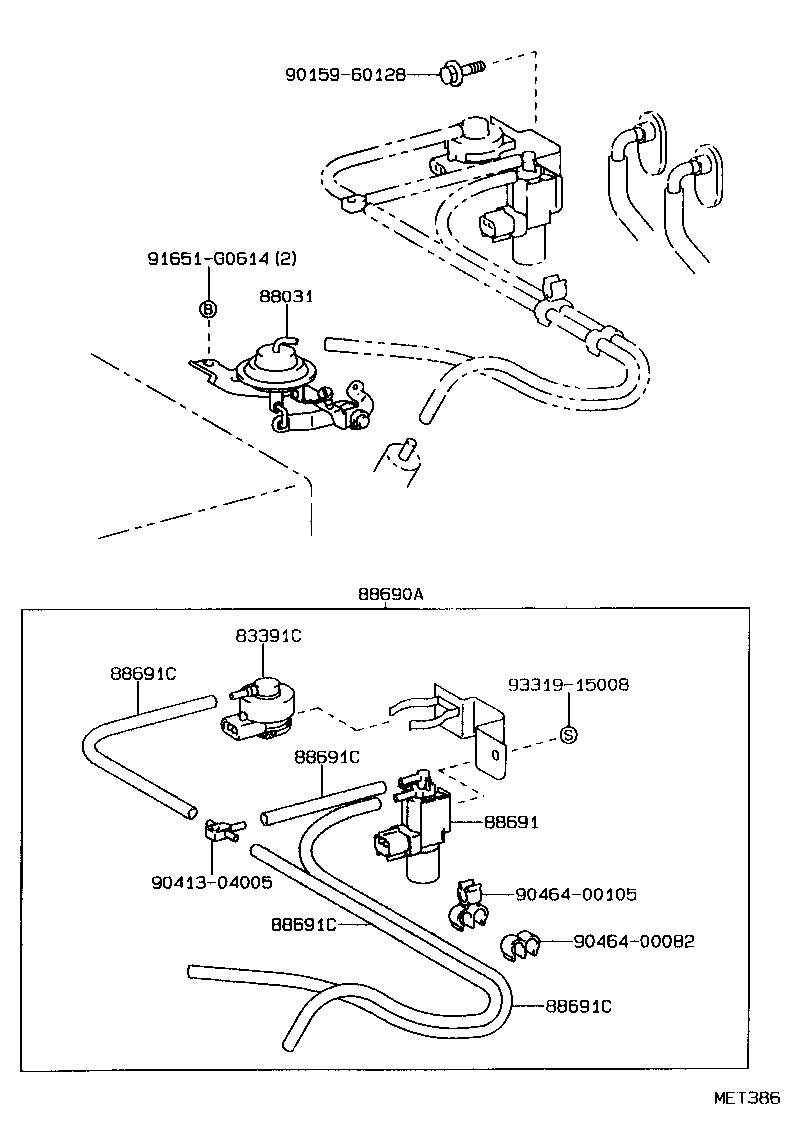

Heating & Air Conditioning - Vacuum Piping
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391C | Switch, Cooler Vacuum |
| 88031 | Actuator Set, Idle-up |
| 88690A | Valve Assy, Combination |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
