Toyota Starlet
1989-12 → 1996-01 · chassis EP8#,NP80 · catalogue 121540 · Europe
Discontinued model
Data version 1996-11
Heating & Air Conditioning - Compressor
22 part groups · 2 illustrations
Part groups

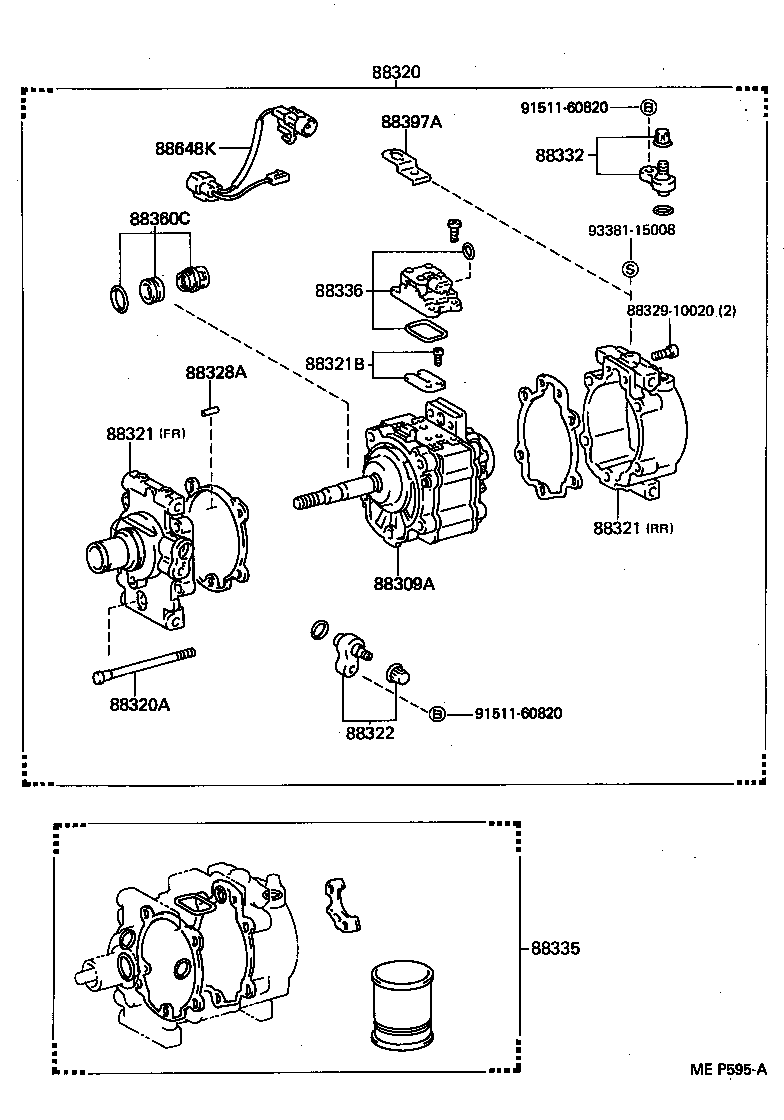

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88309A | Pump Sub-assy, Compressor |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321B | Reed Sub-assy, Valve |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88328A | Pin, Compressor |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88332 | Valve, Cooler Compressor Discharge Service |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88360C | Seal Assy, Shaft |
| 88397A | Clip, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88648K | Wire Sub-assy, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
