Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01

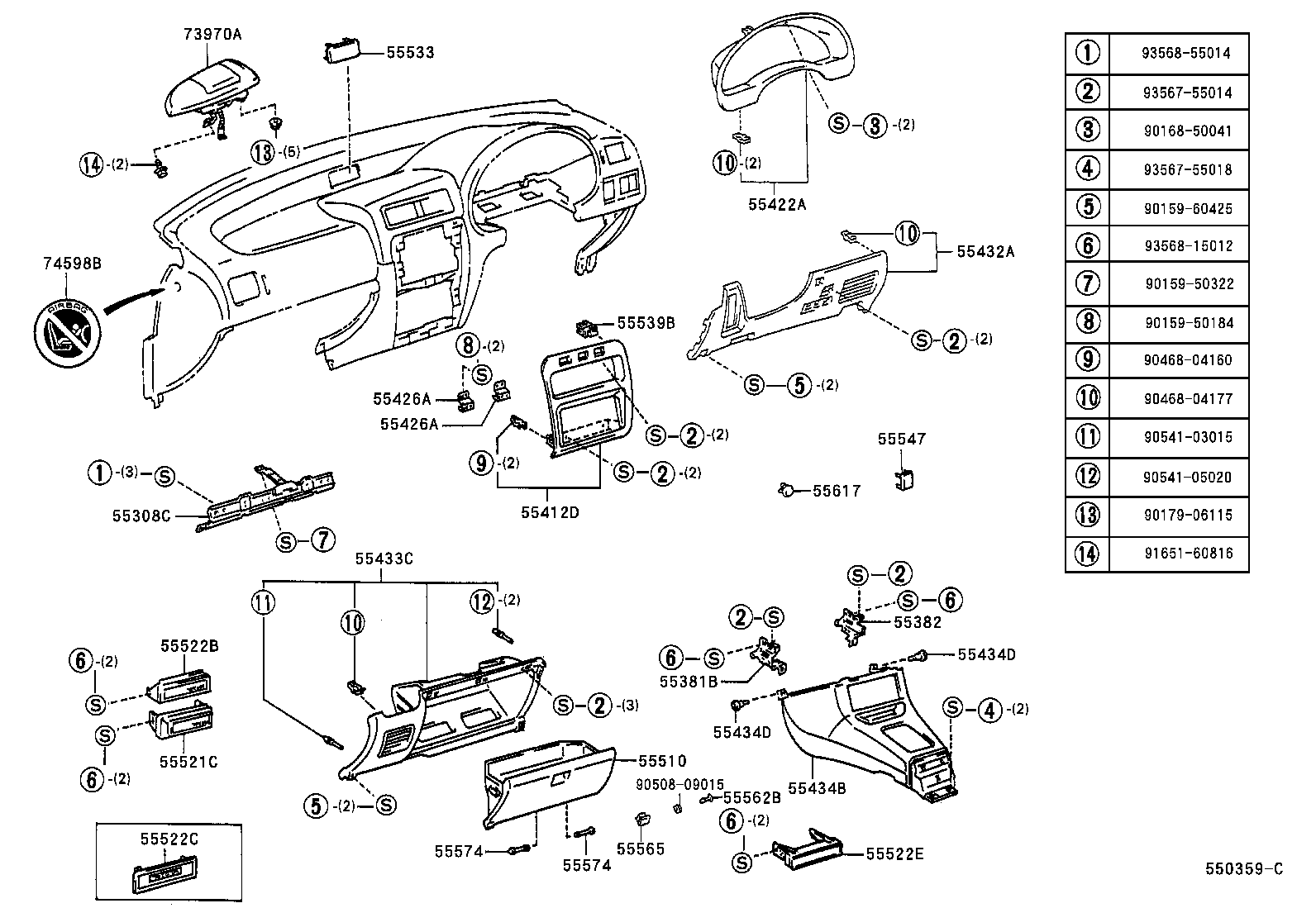

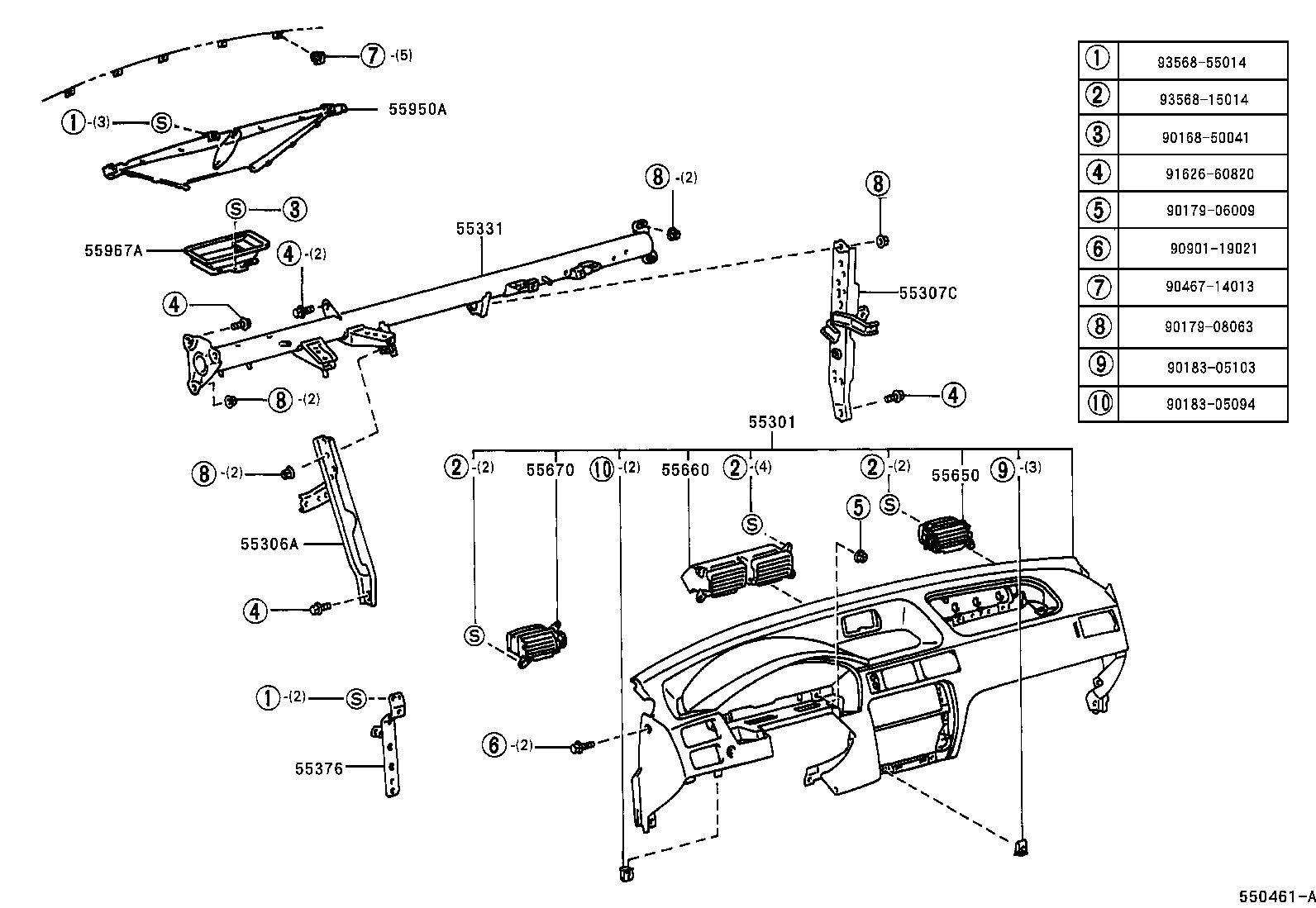

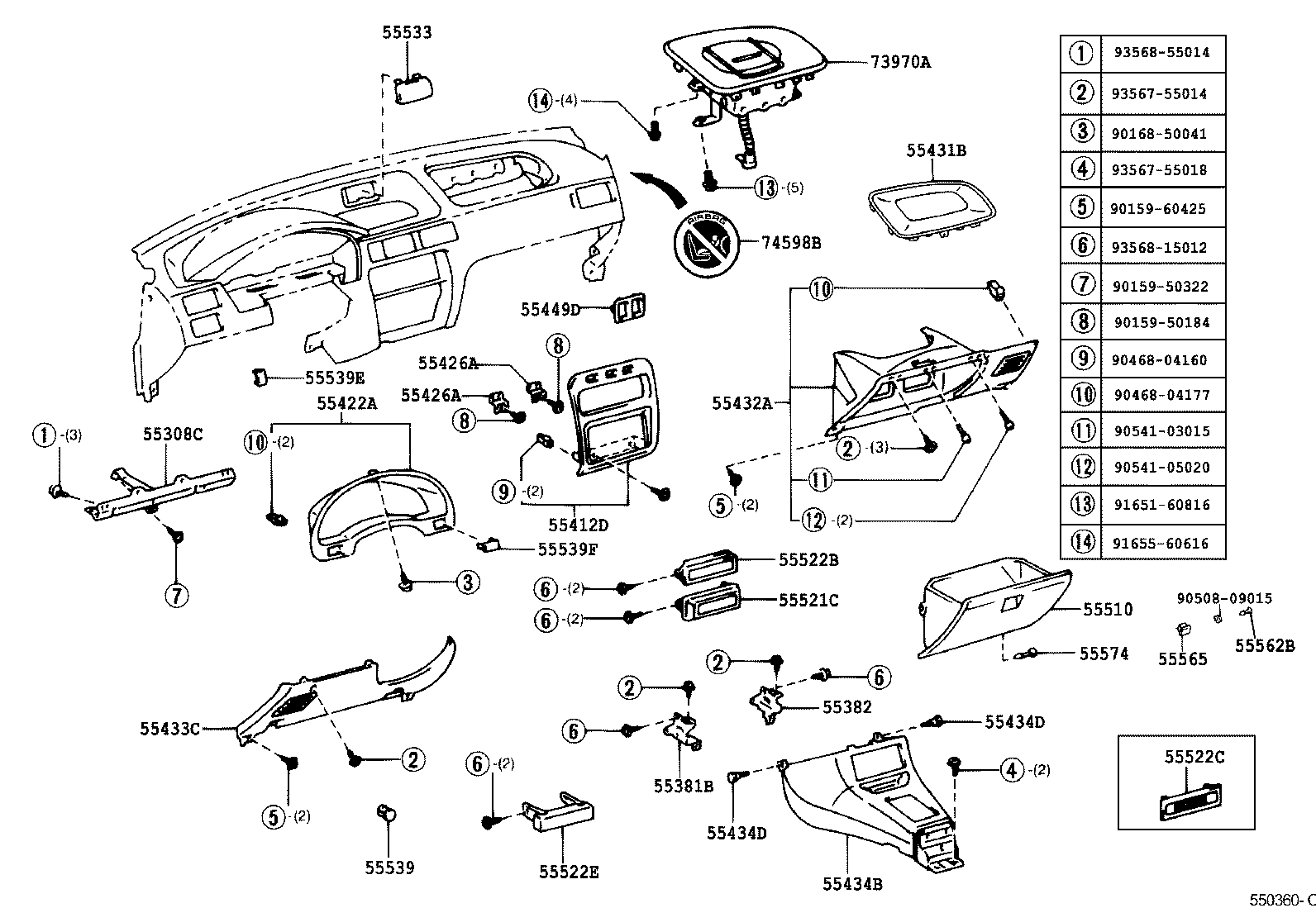

Instrument Panel & Glove Compartment

39 part groups · 4 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55331	Reinforcement, Instrument Panel
55376	Bracket, Instrument Panel Mounting, NO.1
55381B	Bracket, Finish Panel Mounting, NO.1
55382	Bracket, Finish Panel Mounting, NO.2
55412D	Panel, Instrument Cluster Finish, Center
55422A	Panel, Instrument Cluster Finish, Lower
55426A	Bracket, Cluster Finish Panel, NO.1
55431B	Panel, Instrument Panel Finish, Upper
55432A	Panel, Instrument Panel Finish, Lower RH
55433C	Panel, Instrument Panel Finish, Lower LH
55434B	Panel, Instrument Panel Finish, Lower Center
55434D	Clip, Instrument Panel Finish, Lower Center
55449D	Base, Switch
55510	Door Assy, Glove Compartment
55521C	Cover, Stereo Opening
55522B	Cover, Radio Tuner Opening
55522C	Cover, Radio Receiver Opening
55522E	Cover, Cup Holder Opening
55533	Cover, Auto Clock Hole
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55539E	Cover, Spare Switch Hole
55539F	Cover, Spare Switch Hole
55547	Cover, Remote Control Mirror Hole
55562B	Pin, Glove Compartment Door Lock
55565	Handle, Glove Compartment Door Lock
55574	Shaft, Glove Compartment Door Hinge
55617	Cover, Defogger Knob Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55950A	Nozzle Assy, Defroster
55967A	Nozzle, Defroster, Lower
73970A	Airbag Assy, Instrument Panel Passenger
74598B	Label, Passenger Airbag Caution

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
