Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

85 part groups · 2 illustrations

Illustrations

610763A 1996-01 → —

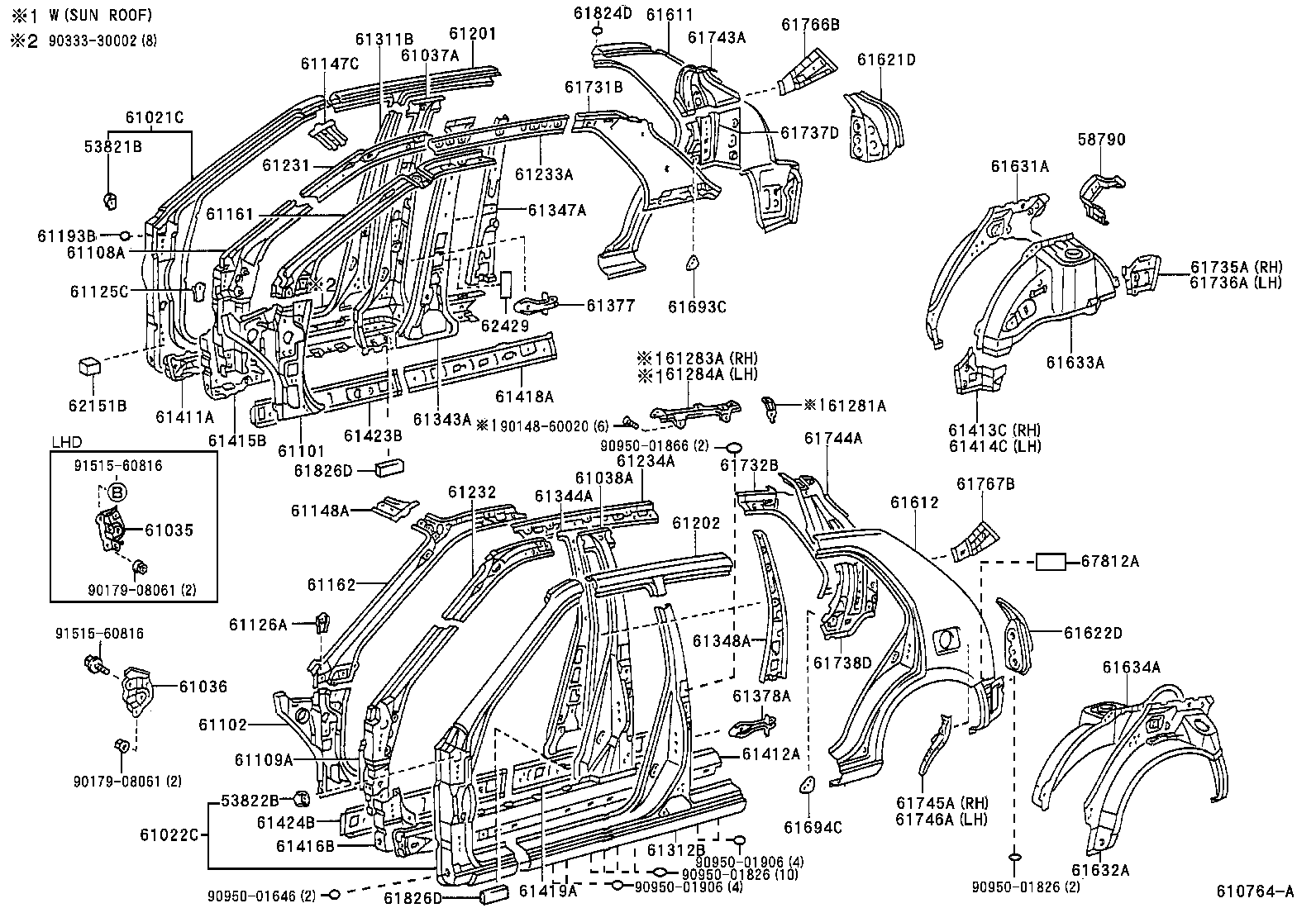

610764A 1996-01 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53822B	Bracket, Front Fender, Rear LH
58790	Carrier Assy, Jack
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61036	Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61125C	Reinforcement, Cowl Side Panel, RH
61126A	Reinforcement, Cowl Side Panel, LH
61147C	Extension, Front Body Pillar, Outer RH
61148A	Extension, Front Body Pillar, Upper Outer LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61193B	Cover, Front Pillar Service Hole
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61281A	Bracket, Sliding Roof Housing Side Mounting, NO.1
61283A	Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61284A	Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61367A	Reinforcement, Belt Anchor TO Center Pillar, Lower RH
61368B	Reinforcement, Belt Anchor TO Center Pillar, Lower LH
61377	Bracket, Rear Door Check Arm, RH
61378A	Bracket, Rear Door Check Arm, LH
61411	Panel, Rocker, Outer RH
61411A	Reinforcement, Rocker Panel, NO.1 RH
61412	Panel, Rocker, Outer LH
61412A	Reinforcement, Rocker Panel, NO.1 LH
61413C	Reinforcement, Rocker Panel, NO.2 RH
61414C	Reinforcement, Rocker Panel, NO.2 LH
61415B	Extension, Rocker, Outer RH
61416B	Extension, Rocker, Outer LH
61418A	Reinforcement, Rocker Panel, RH
61419A	Reinforcement, Rocker Panel, LH
61423B	Reinforcement, Rocker Panel, NO.3 RH
61424B	Reinforcement, Rocker Panel, NO.3 LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61693C	Retainer, Rear Seatback Set, RH
61694C	Retainer, Rear Seatback Set, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61753A	Retainer, Quarter Trim, Lower
61754B	Retainer, Quarter Trim, Lower LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61824D	Plate, Noise Control, NO.1
61825C	Pad, Noise Shutter, NO.2
61826D	Plate, Noise Control, NO.3
62151B	Pad, Cowl Side Silencer
62429	Cover, Center Pillar Service Hole
67812A	Pad, Quarter Panel Silencer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
