Toyota Starlet
1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe
Discontinued model
Data version 2000-01

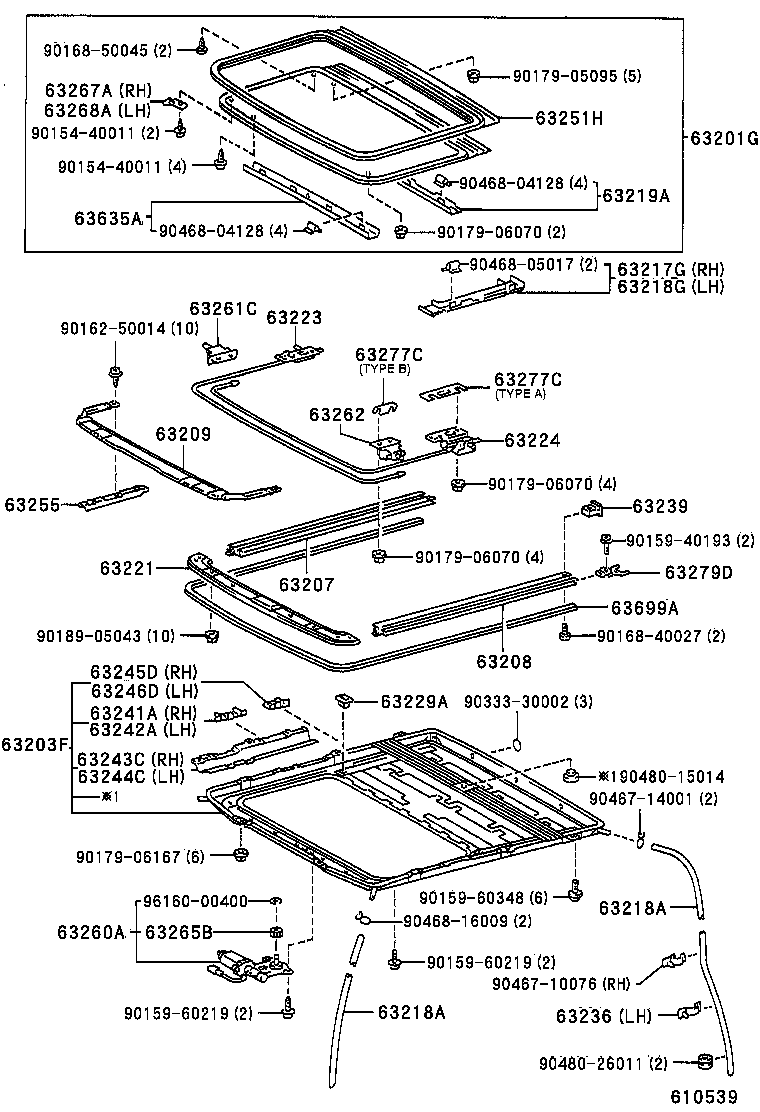

Roof Panel & Back Window Glass
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61827B | Plate, Noise Control, NO.4 |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63135A | Frame, Back Door Opening, Lower |
| 63138C | Seal, Back Door Opening, Upper |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
