Toyota Starlet
1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe
Discontinued model
Data version 2000-01

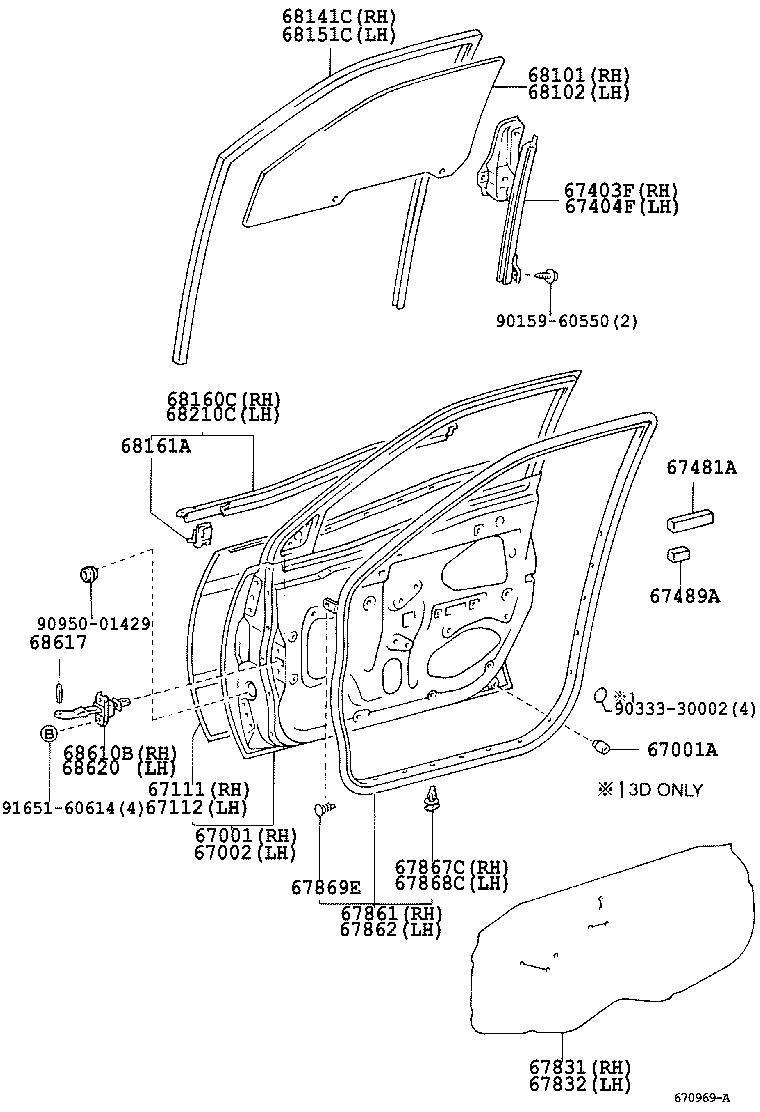

Front Door Panel & Glass
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67489A | Seal, Front Door Front Lower Frame Cover |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67710 | Panel Assy, Front Door Trim, Upper RH |
| 67717 | Pad, Front Door Trim, Center RH |
| 67718 | Pad, Front Door Trim, Center LH |
| 67720 | Panel Assy, Front Door Trim, Upper LH |
| 67773C | Clip, Door Trim Upper Retainer, NO.1 |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869E | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68161A | Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68617 | Pin, Front Door Check |
| 68620 | Check Assy, Front Door, LH |
| 74233A | Panel, Front Door Armrest Base, Lower RH |
| 74234A | Panel, Front Door Armrest Base, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
