Toyota Starlet
1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe
Discontinued model
Data version 2000-01

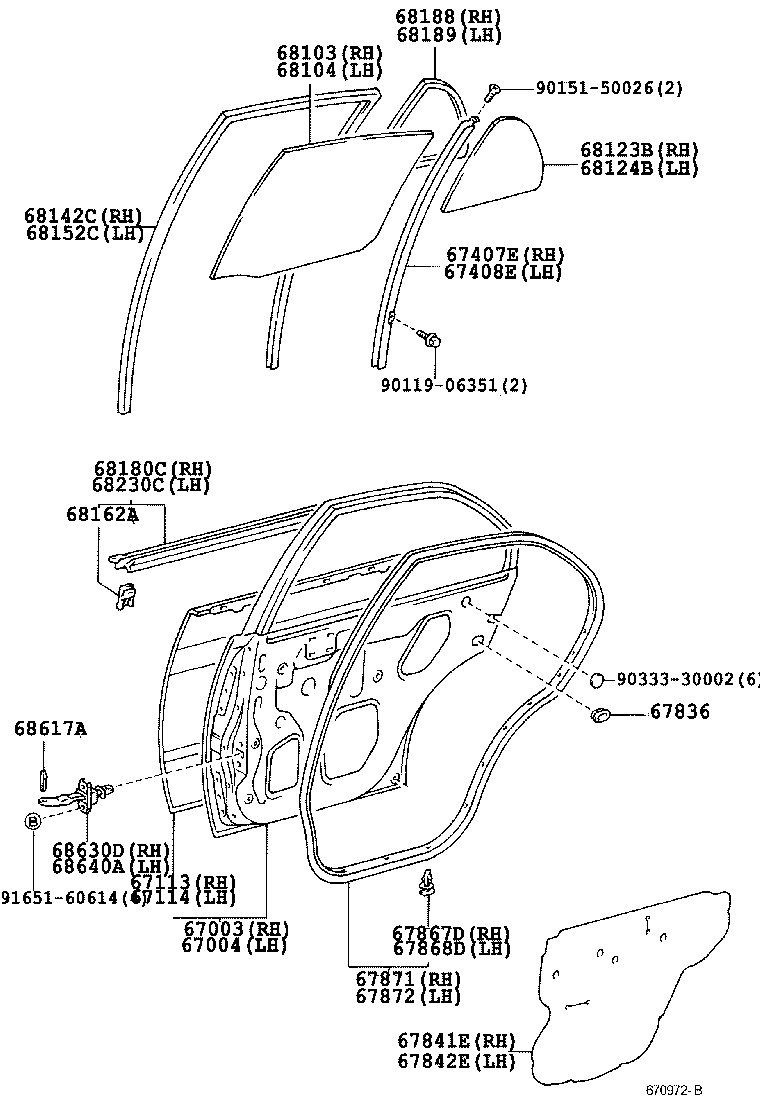

Rear Door Panel & Glass
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603D | Retainer, Rear Door Trim, RH |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67730 | Panel Assy, Rear Door Trim, Upper RH |
| 67740 | Panel Assy, Rear Door Trim, Upper LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68162A | Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68617A | Pin, Rear Door Check |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74273B | Panel, Rear Door Armrest Base, Lower RH |
| 74274B | Panel, Rear Door Armrest Base, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
