Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

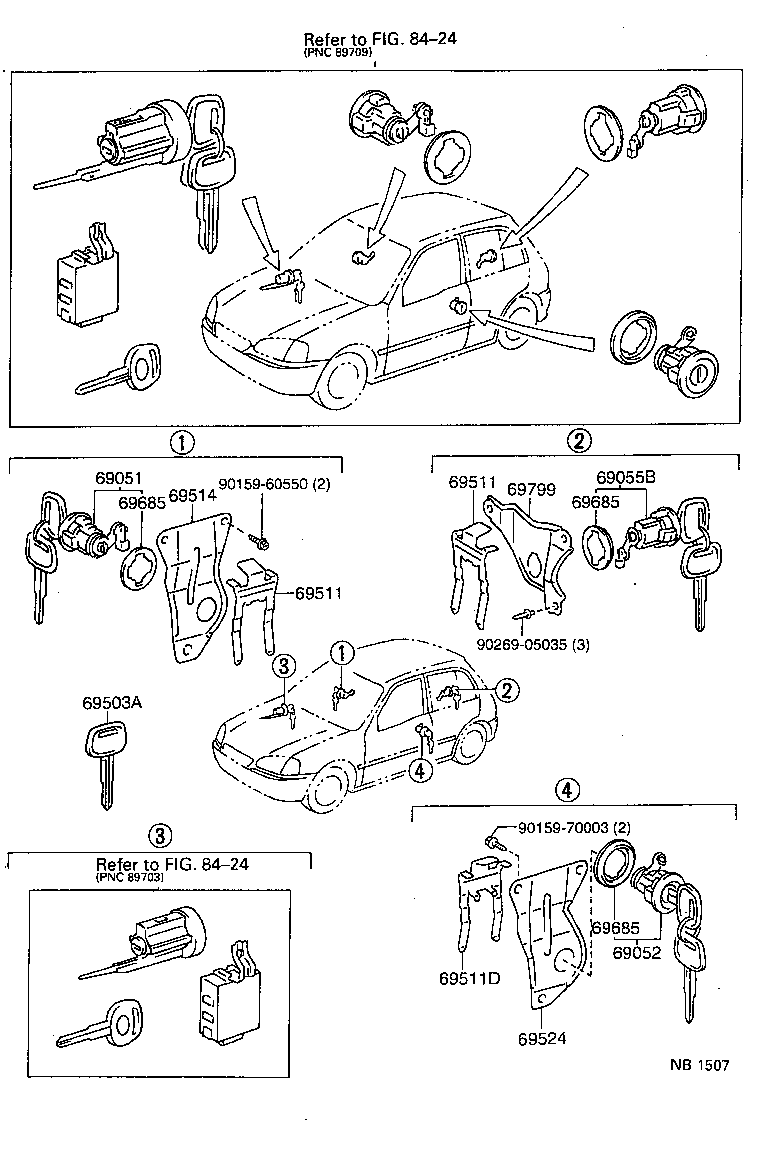

Figure NB1504 NB1504 1996-01 → — Figure NB1507 NB1507 1996-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69511D Retainer, Back Door Lock Cylinder
69514 Support, Front Door Lock Cylinder, RH
69524 Support, Front Door Lock Cylinder, LH
69685 Pad, Lock Cylinder
69799 Bracket, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
