Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

14 part groups · 2 illustrations

Illustrations

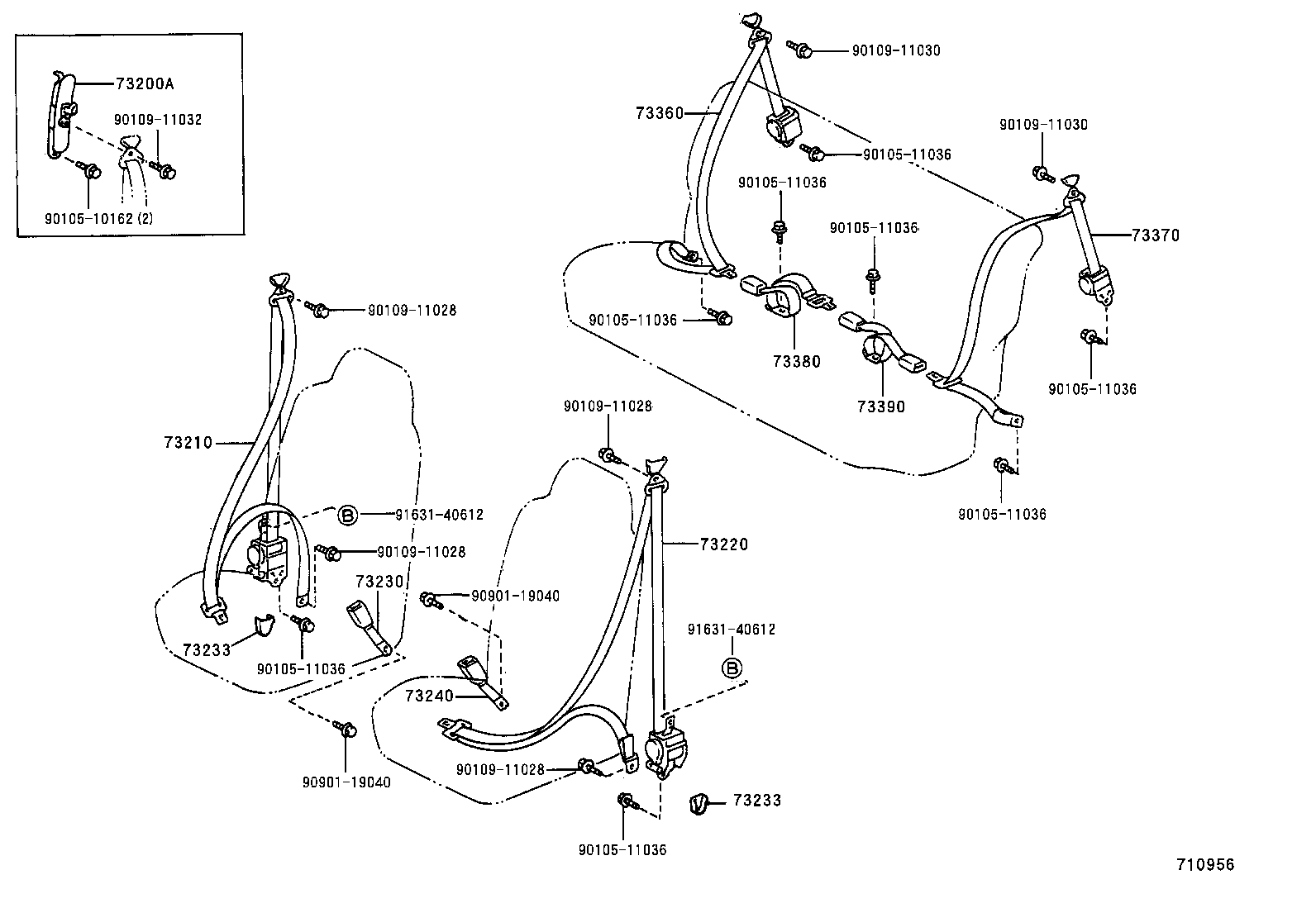

Figure 710955 710955 1996-01 → — Figure 710956 710956 1996-01 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73201C Bar Sub-assy, Front Seat Belt, Outer RH
73202B Bar Sub-assy, Front Seat Belt, Outer LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
