Toyota Starlet
1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe
Discontinued model
Data version 2000-01
Switch & Relay & Computer
65 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82642A | Relay, Running Light |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82683 | Plate, Fuse Block Caution |
| 82683A | Plate, Fuse Block Caution |

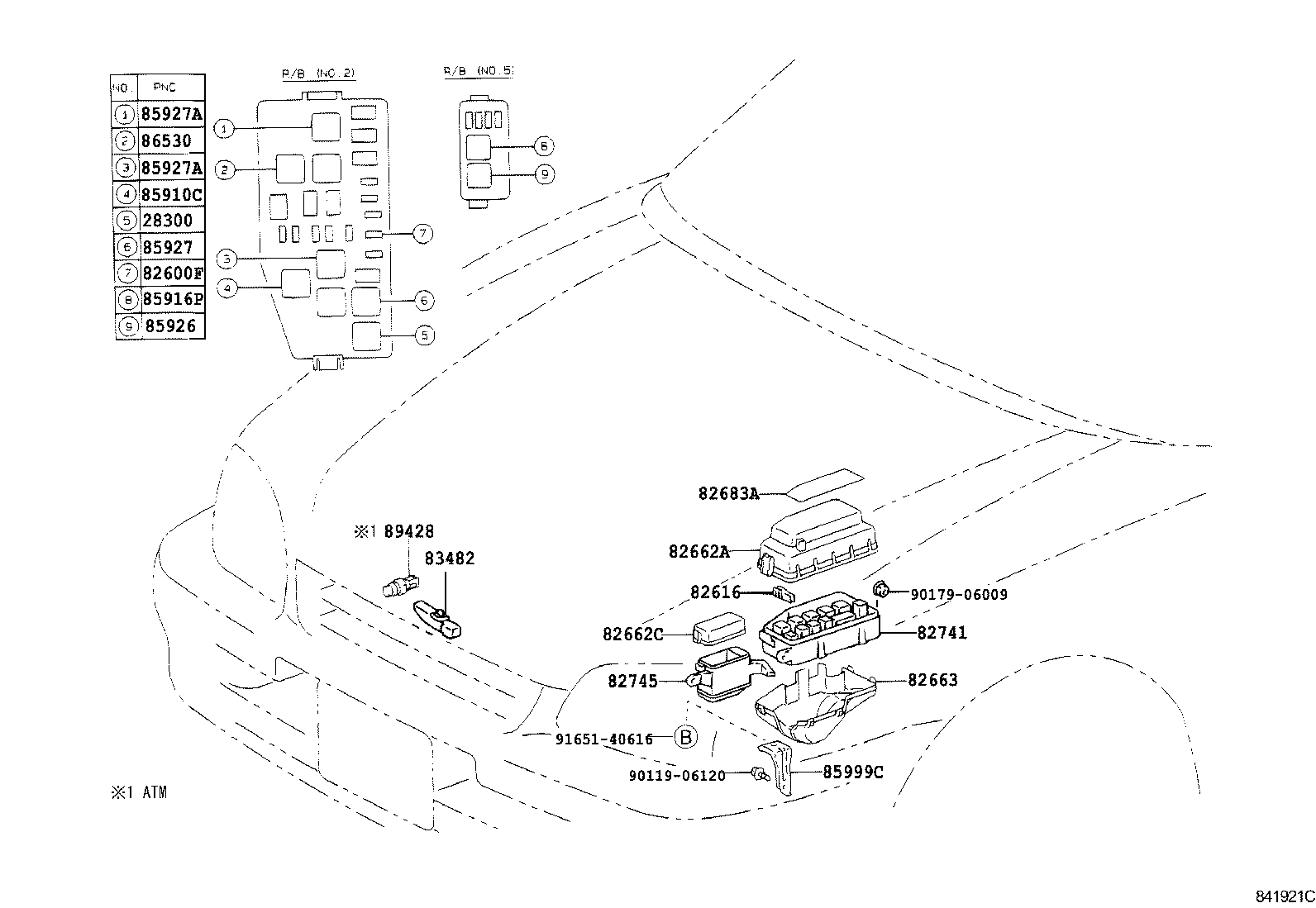

| 82741 | Block, Engine Room Relay |
| 82745 | Block, Engine Room Relay, NO.5 |

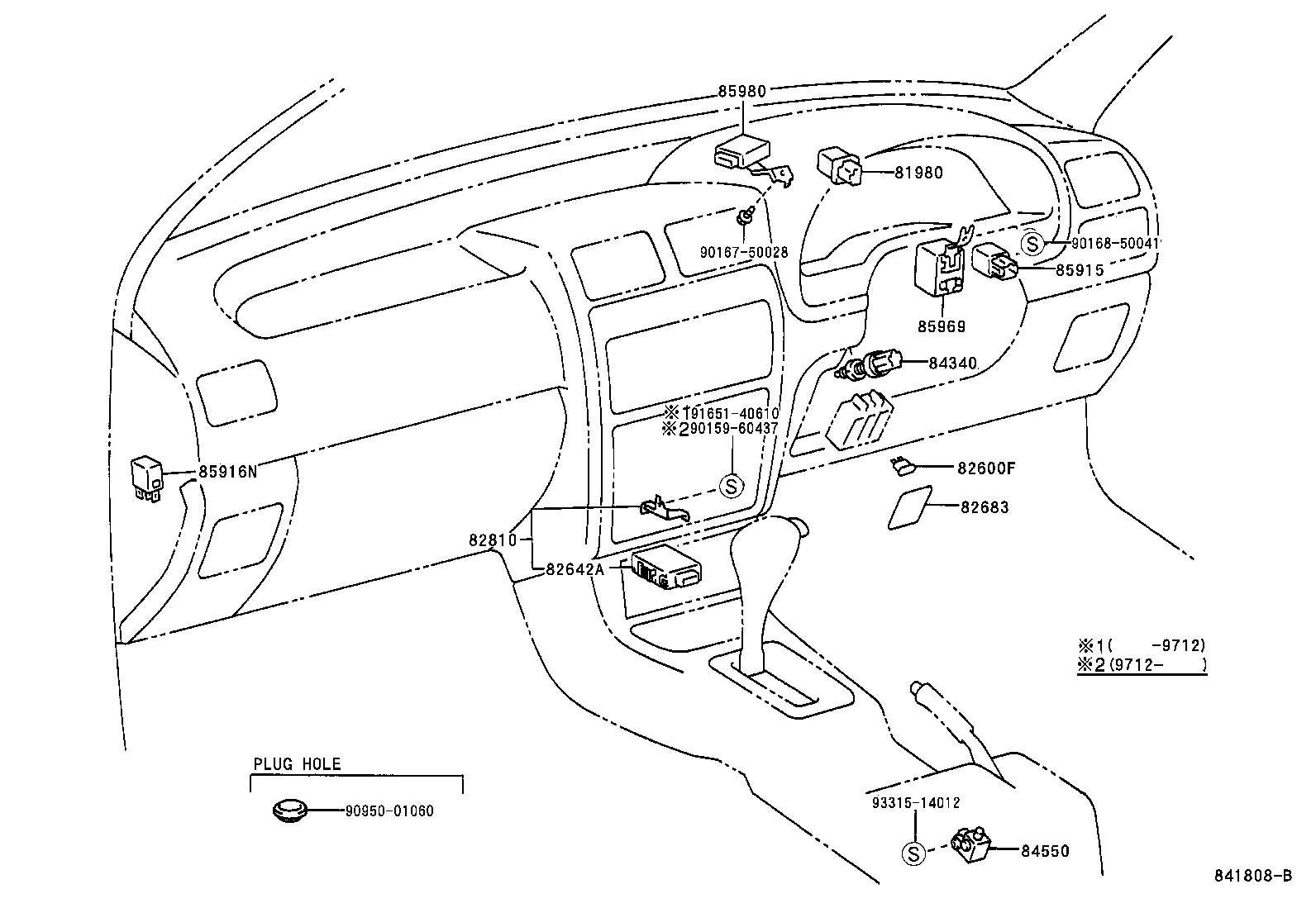

| 82810 | Relay Assy, Running Light |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |

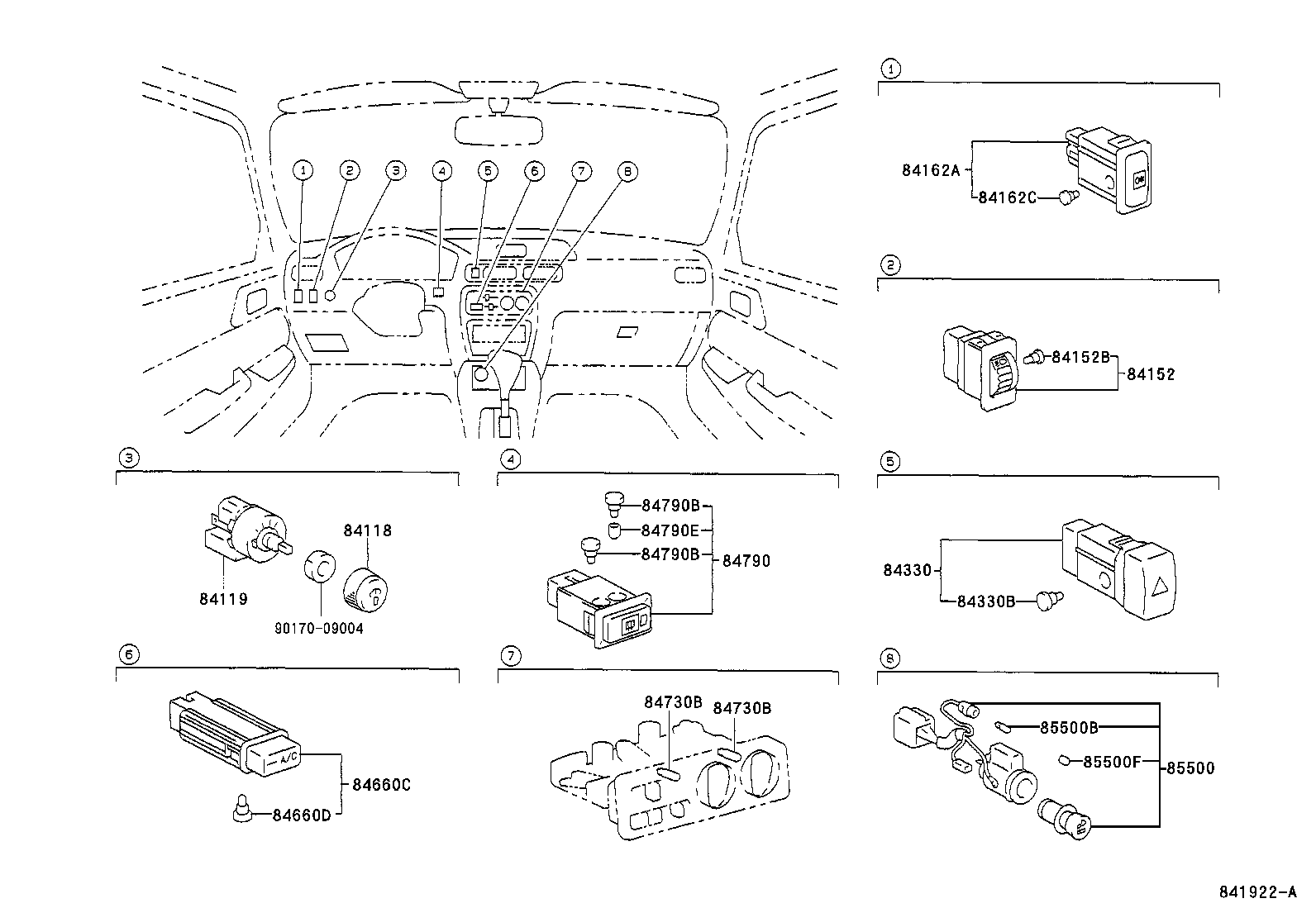

| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

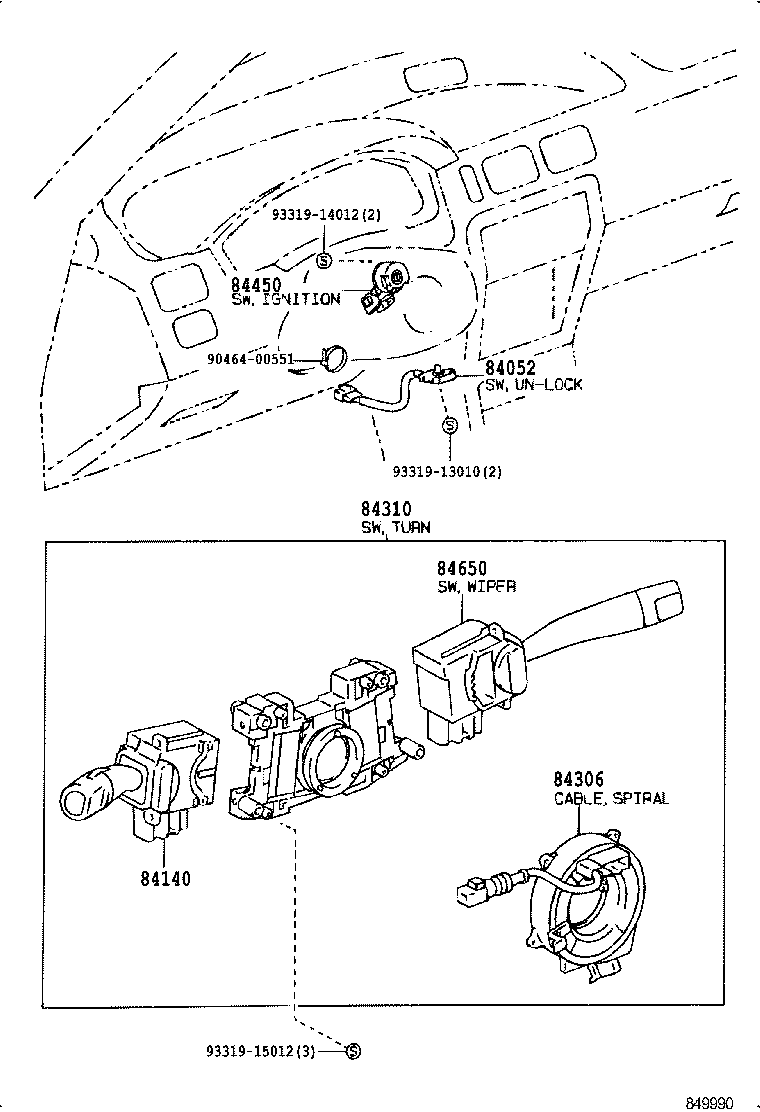

| 84306 | Cable Sub-assy, Spiral |

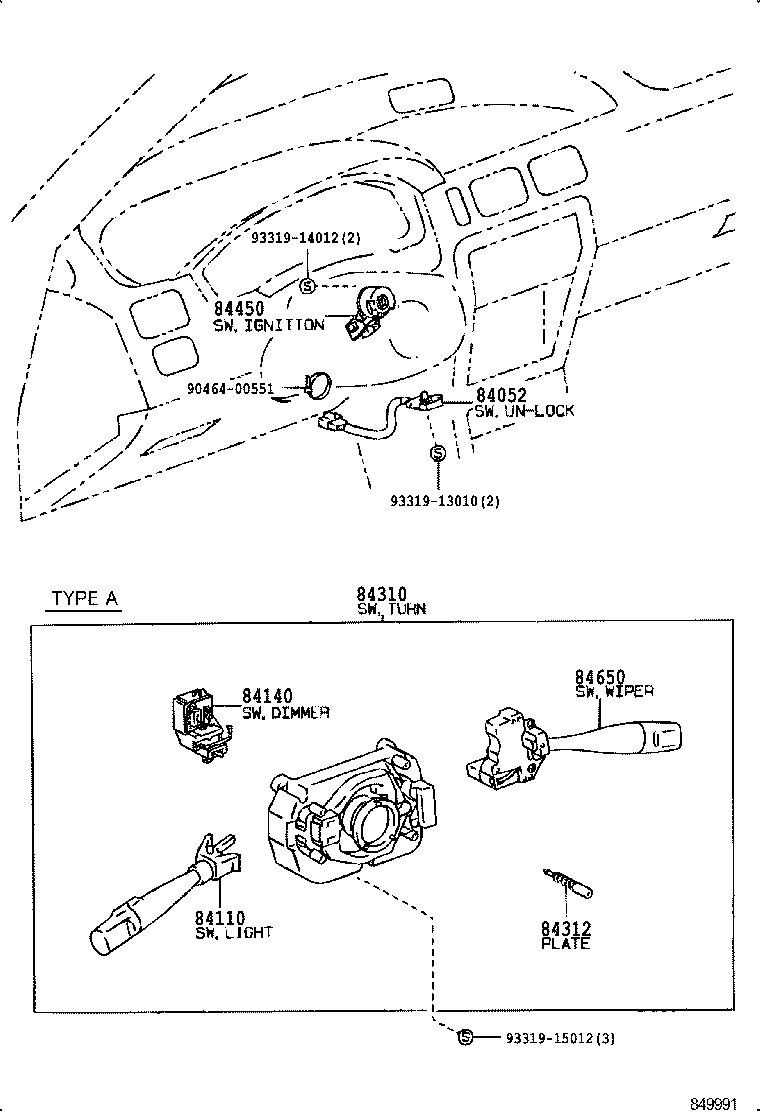

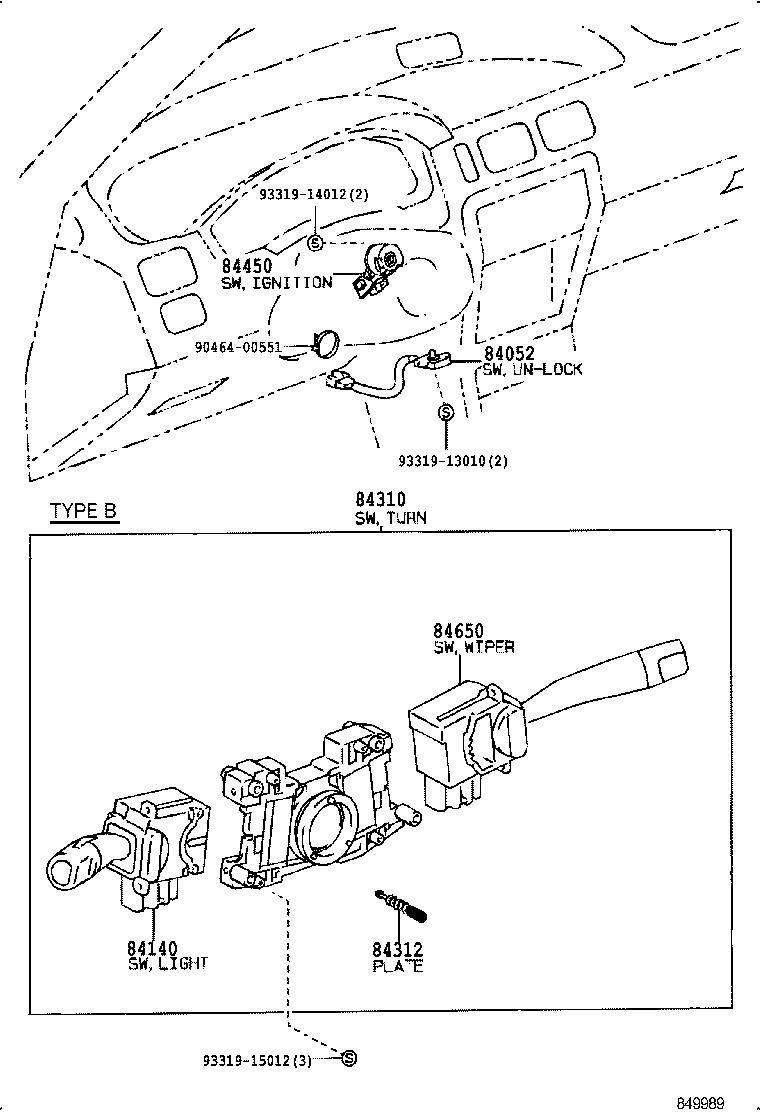

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |

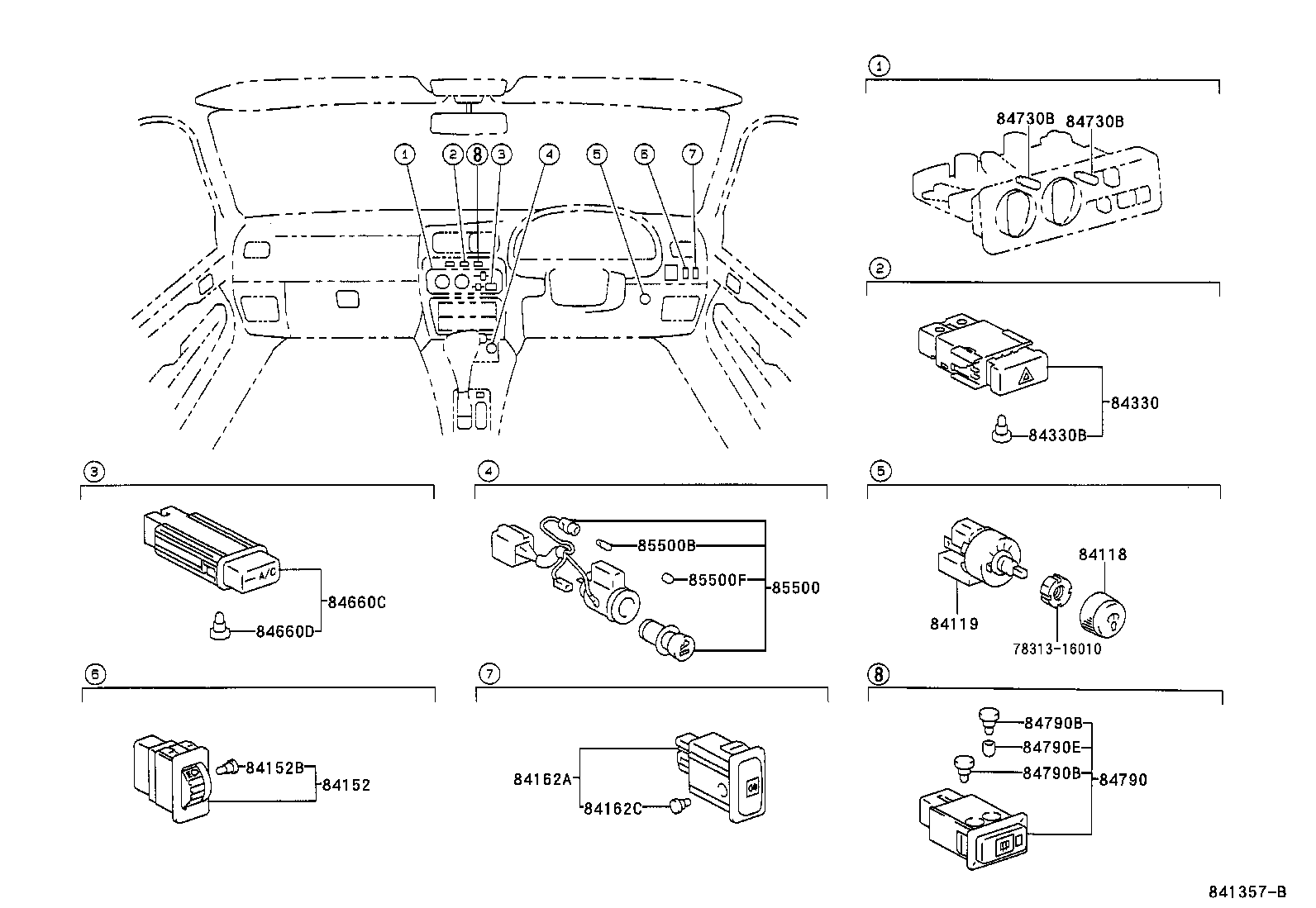

| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84730B | Bulb, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84790E | Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

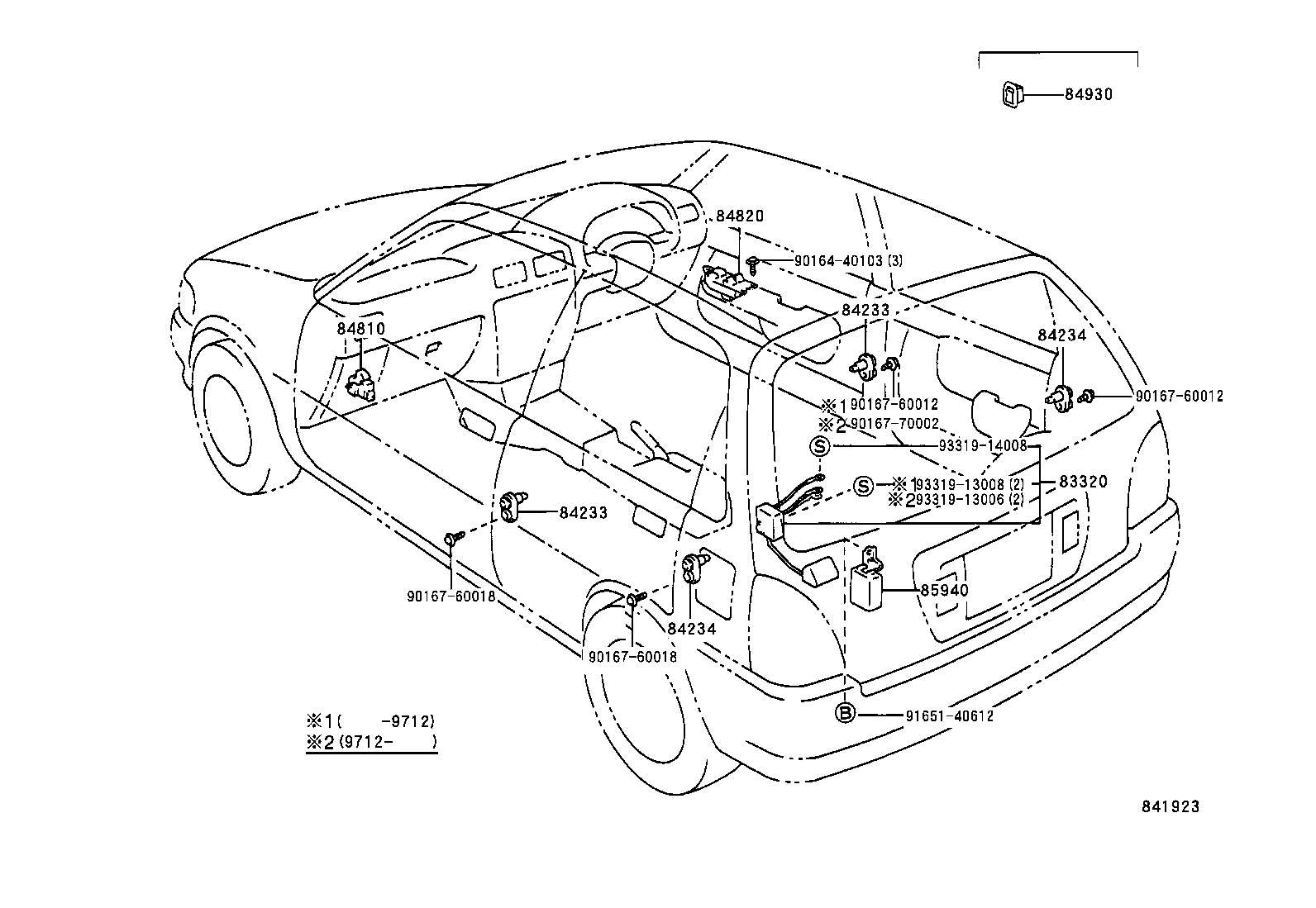

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84930 | Switch Assy, Door Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85940 | Relay Assy, Windshield Wiper |
| 85969 | Relay, Light Reminder |
| 85980 | Relay Assy, Door Control |
| 85999C | Bracket, Relay, NO.3 |
| 86530 | Relay Assy, Horn |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89465 | Sensor, Oxygen |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
