Toyota Starlet

1996-01 → 1999-07 · chassis EP91 · catalogue 121550 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

31 part groups · 3 illustrations

Illustrations

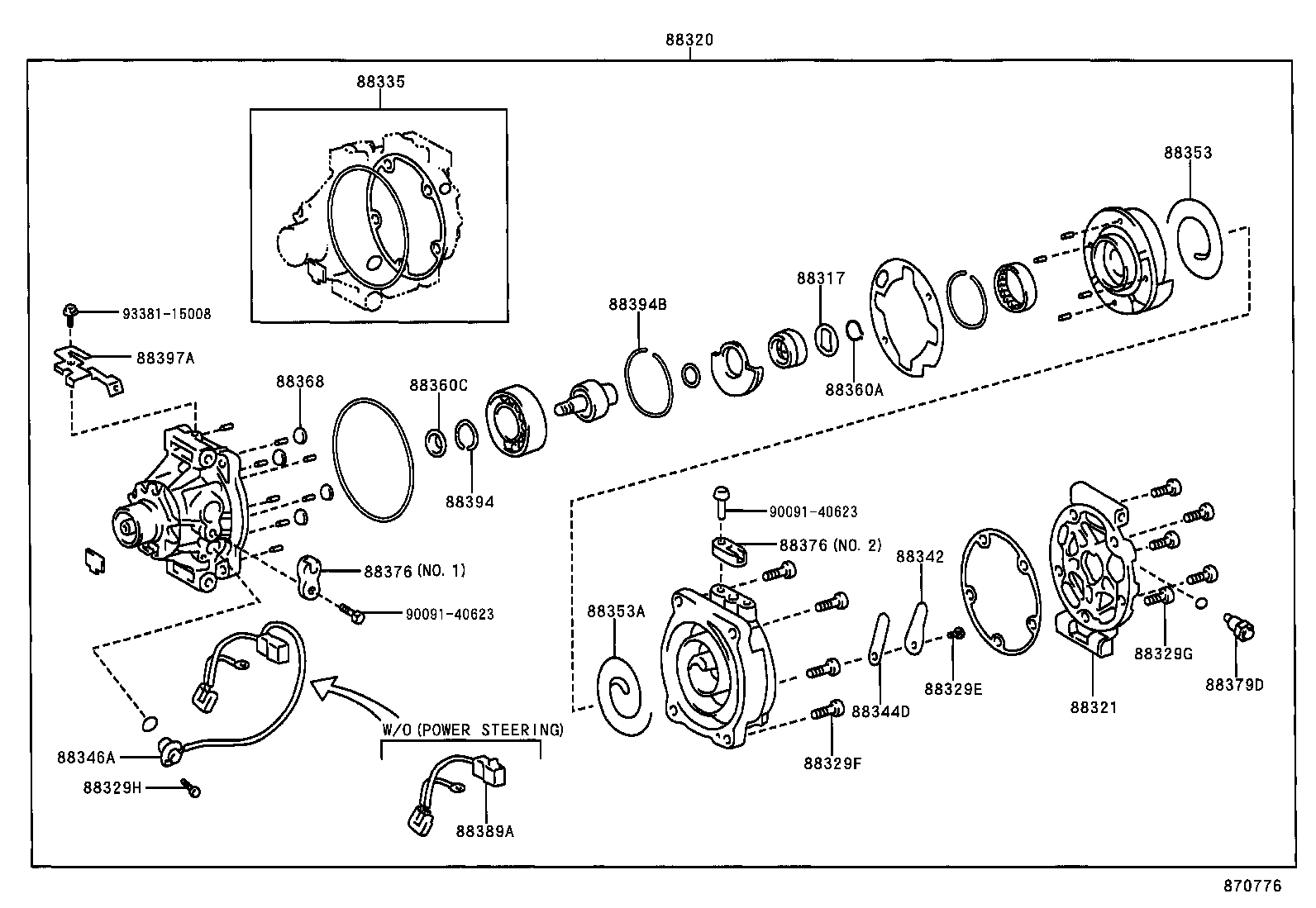

Figure 872332 872332 1996-01 → — Figure 872333 872333 1996-01 → — Figure 870776 870776 1996-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88317 Spacer, Cooler Compressor
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88329G Bolt, Compressor, NO.3
88329H Bolt, Compressor, NO.4
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88342 Plate, Compressor Valve, RR
88344D Reed, Discharge Valve
88346A Sensor, Compressor Pick UP
88353 Seal, Compressor Tip, NO.1
88353A Seal, Compressor Tip, NO.2
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88368 Retanier, Compressor Bearing
88376 Cap, Blind
88379D Valve, Pressure Relief
88389A Wire, Compressor
88394 Spring, Compressor
88394B Spring, Compressor
88397A Clip, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
