Toyota Tercel
1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe
Discontinued model
Data version 1982-04

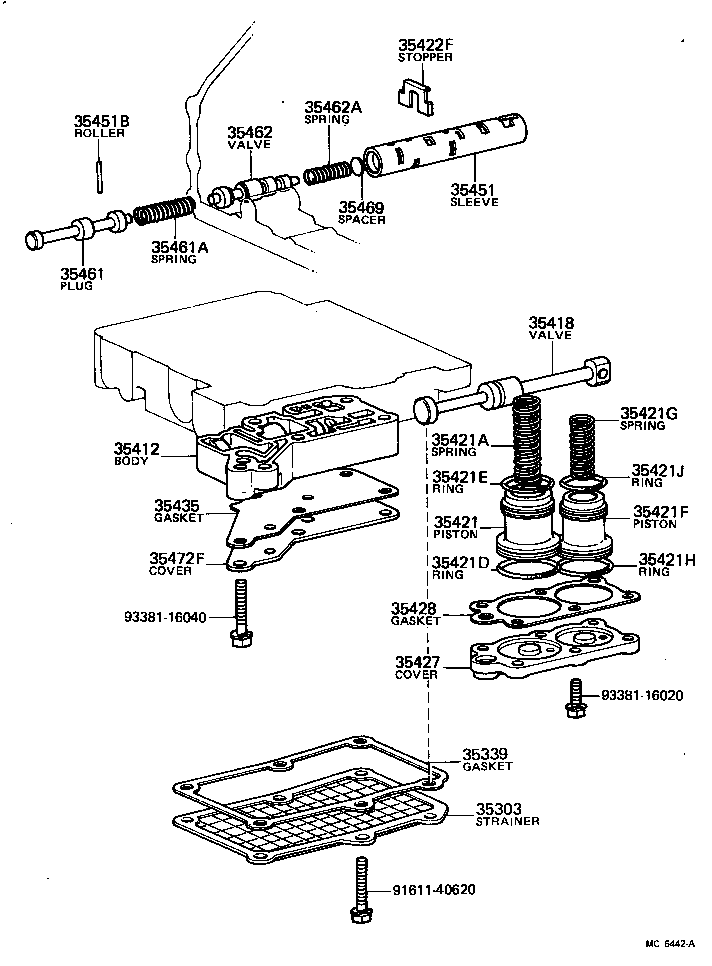

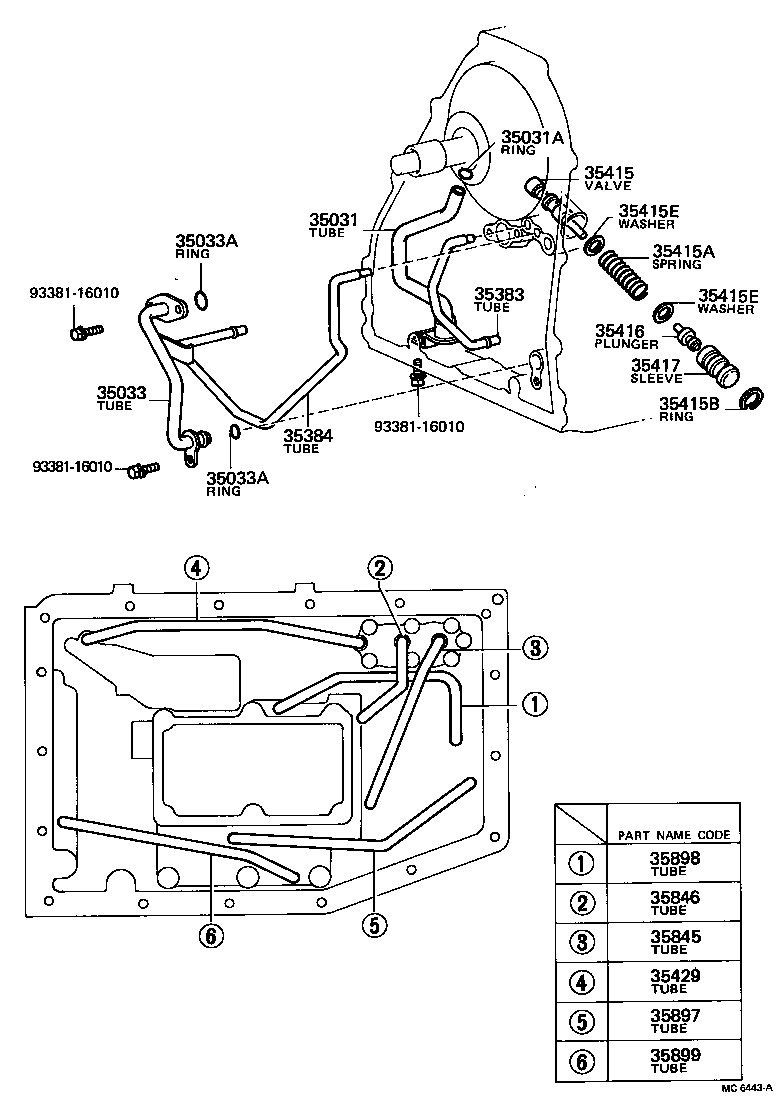

Valve Body & Oil Strainer (ATM)
70 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35031 | Tube Sub-assy, Oil Pump Suction, NO.1 |
| 35031A | Ring, O (FOR OIL PUMP SUCTION NO.1 TUBE) |
| 35032 | Tube Sub-assy, Oil Pump Suction, NO.2 |
| 35032A | Ring, O (FOR OIL PUMP SUCTION NO.2 TUBE) |
| 35033 | Tube Sub-assy, Oil Pump Delivery |
| 35033A | Ring, O (FOR OIL PUMP DELIVERY) |
| 35303 | Strainer Sub-assy, Oil |
| 35339 | Gasket, Oil Strainer |
| 35383 | Tube, Reverse Line Pressure |
| 35384 | Tube, Throttle Pressure |
| 35410 | Body Assy, Transmission Valve |
| 35410A | Ball (FOR REVERSE SHIFT RESTRICT) |
| 35412 | Body, Front Upper Valve |
| 35413 | Valve, Cut Back |
| 35414 | Plug, Cut Back |
| 35414A | Roller (FOR CUT BACK PLUG) |
| 35415 | Valve, Pressure Regulator |
| 35415A | Spring, Compression (FOR PRESSURE REGULATOR VALVE) |
| 35415B | Ring, Hole Snap (FOR PRESSURE REGULATOR VALVE SET) |
| 35415E | Washer, Plate (FOR PRESSURE REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417 | Sleeve, Pressure Regulator Valve |
| 35418 | Valve, Manual |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421D | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421E | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421J | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35422F | Stopper, Valve Vibrating |
| 35427 | Cover, Accumulator |
| 35428 | Gasket, Accumulator Cover |
| 35429 | Tube, Line Pressure |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35435 | Gasket, Valve Body Plate, NO.3 |
| 35441 | Valve, Low Coast Shift Control |
| 35441A | Spring, Compression (FOR LOW COAST SHIFT CONTROL VALVE) |
| 35441B | Ring, Snap (FOR LOW COAST SHIFT CONTROL VALVE) |
| 35443 | Sleeve, Low Coast Shift Control Valve |
| 35451 | Sleeve, Throttle Valve |
| 35451B | Roller (FOR THROTTLE VALVE SLEEVE SETTING) |
| 35452F | Plug, 2-3 Shift Valve |
| 35453 | Valve, Detent Regulator |
| 35453A | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35454 | Valve, Low Coast Shift |
| 35455 | Plug, 1-2 Shift Valve Low |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35461 | Plug, Down Shift |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35463 | Valve, Detent Pressure Cut |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35467 | Valve, Intermediate Shift |
| 35469 | Spacer (FOR VALVE BODY DOWN SHIFT PLUG) |
| 35472F | Cover, Front Valve Body |
| 35473 | Cover, Transmission Valve Body |
| 35477 | Gasket, Valve Body Cover |
| 35493F | Seat, Shift Valve Plug |
| 35845 | Tube, RR Clutch Accumulator |
| 35846 | Tube, Brake Accumulator |
| 35897 | Tube, 1ST & Reverse Brake |
| 35898 | Tube, 1ST & Reverse Brake, NO.2 |
| 35899 | Tube, Governor Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
