Toyota Tercel
1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe
Discontinued model
Data version 1982-04

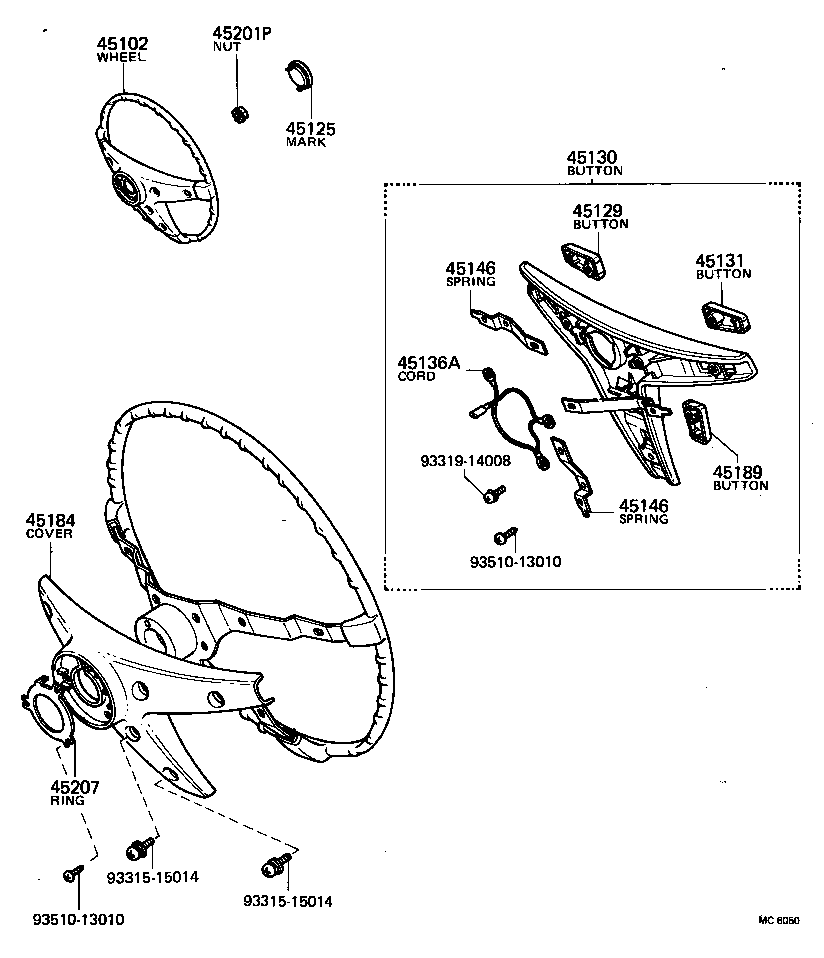

Steering Wheel
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45102 | Wheel Sub-assy, Steering |
| 45125 | Mark, Steering Wheel Pad |
| 45126 | Plate, Steering Wheel Pad Set |
| 45129 | Button, Horn, NO.2 |
| 45130 | Button Assy, Horn |
| 45131 | Button, Horn, NO.1 |
| 45136A | Cord(FOR HORN CONTACT RING) |
| 45146 | Spring, Horn Button Contact |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45189 | Button, Horn, NO.3 |
| 45201P | Nut, Steering Wheel Set |
| 45207 | Ring, Horn Contact |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
