Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

16 part groups · 2 illustrations

Illustrations

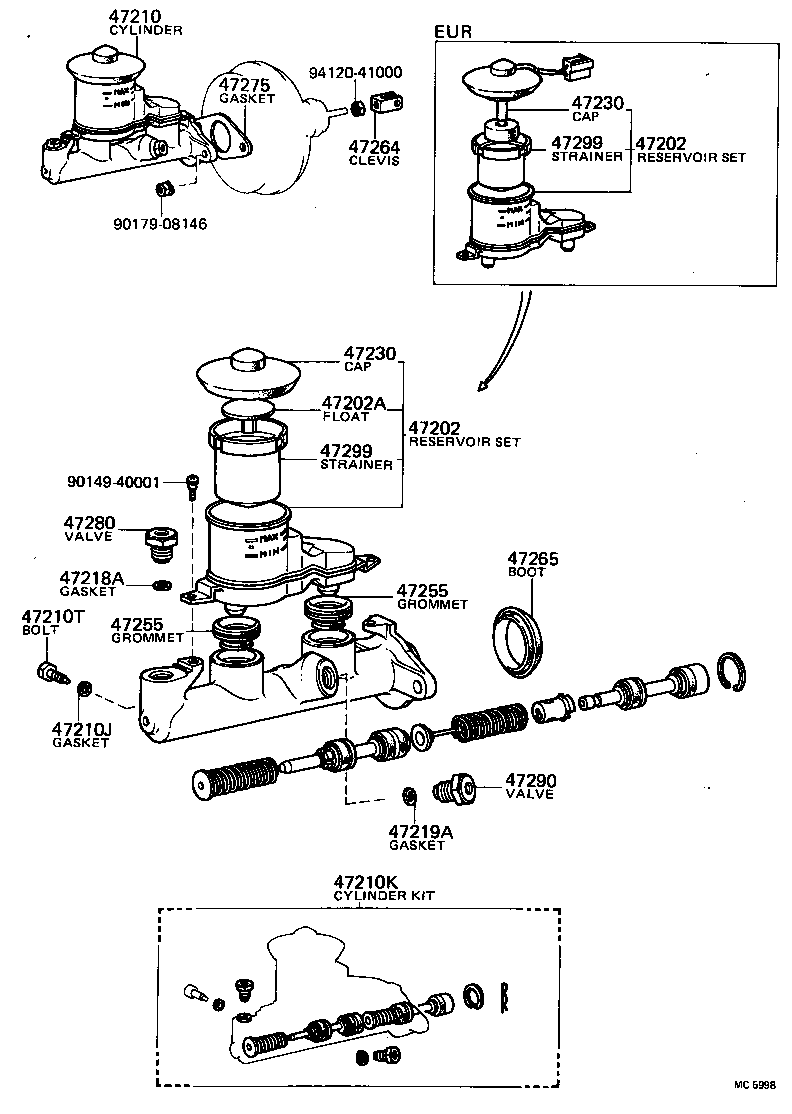

Figure MC5997 MC5997 1979-01 → — Figure MC5998 MC5998 1979-01 → —

Part groups

PNCDescription
47202 Reservoir Sub-assy, Brake Master Cylinder
47202A Float, Master Cylinder Reservoir
47210 Cylinder Assy, Master, W/O Booster
47210J Gasket(FOR MASTER CYLINDER)
47210K Cylinder Kit, Brake Master
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47218A Gasket(FOR FLUID OUTLET PLUG)
47219A Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47280 Valve Assy, Brake Master Cylinder Outlet Check
47290 Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
