Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

4 part groups · 2 illustrations

Illustrations

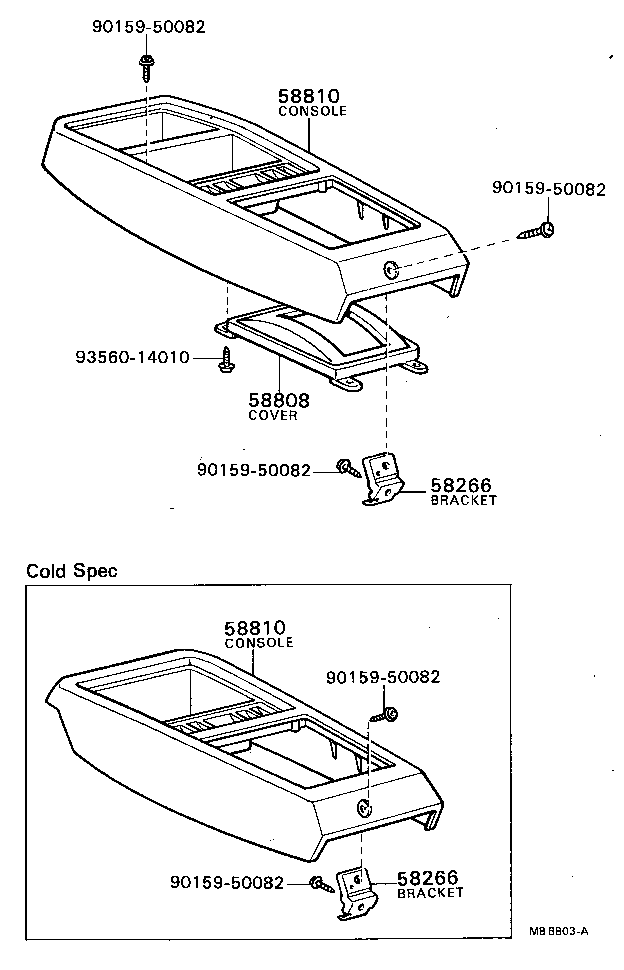

Figure MB8729A MB8729A 1979-01 → 1980-08 Figure MBB803A MBB803A 1980-08 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58843 Bezel, Shifting Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
