Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

26 part groups · 3 illustrations

Illustrations

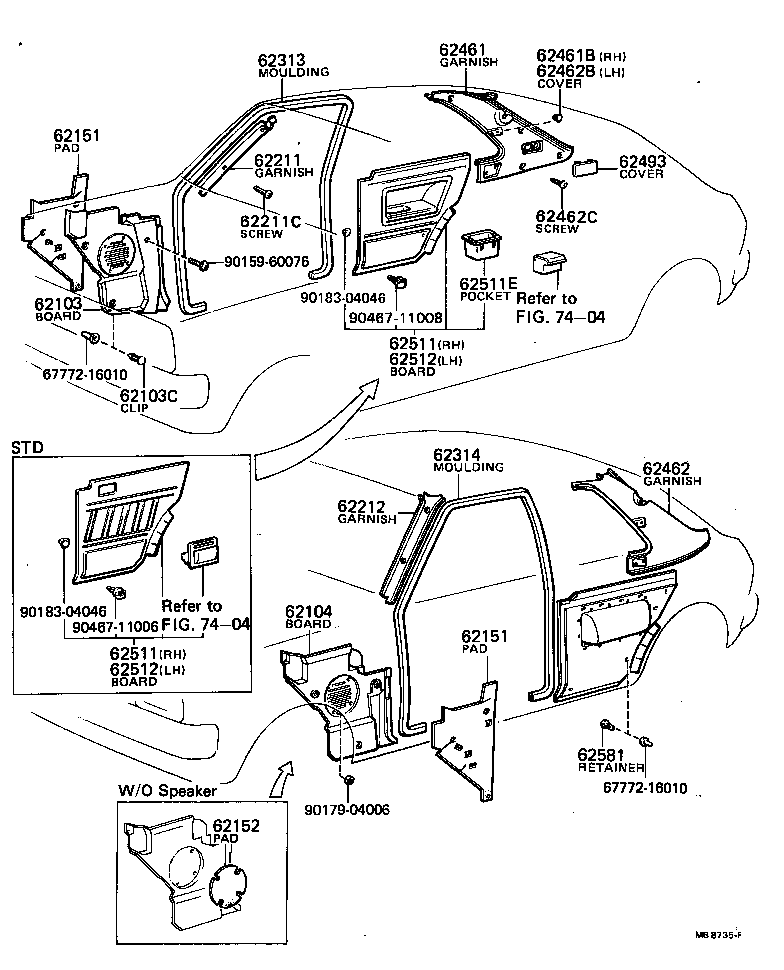

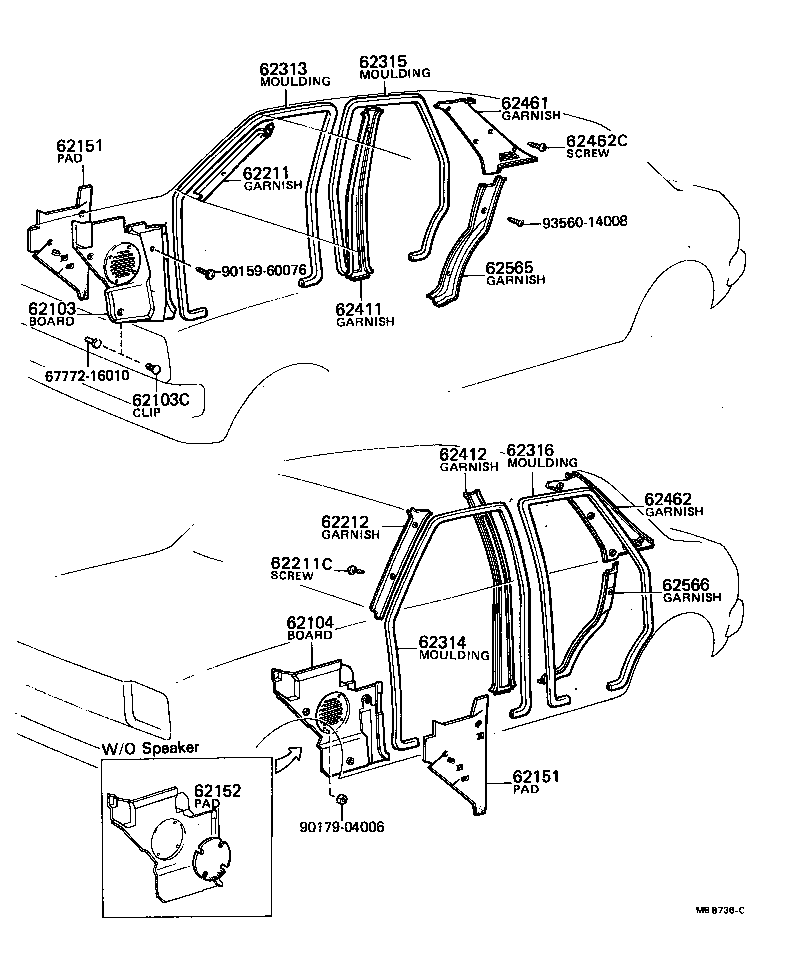

Figure MB8734F MB8734F 1979-01 → — Figure MB8735F MB8735F 1979-01 → — Figure MB8736C MB8736C 1979-01 → —

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62103C Clip, Cowl Side Trim Board Set
62104 Board Sub-assy, Cowl Side Trim, LH
62151 Pad, Cowl Side Silencer, NO.1
62152 Pad, Cowl Side Silencer, NO.2
62211 Garnish, Front Pillar, RH
62211C Screw, Front Body Pillar Garnish
62212 Garnish, Front Pillar, LH
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62315 Moulding, Rear Door Opening Trim, RH
62316 Moulding, Rear Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62461 Garnish, Roof Side Trim, RH
62461B Cover, Roof Side Inner Garnish, RH
62462 Garnish, Roof Side Trim, LH
62462B Cover, Roof Side Inner Garnish, LH
62462C Screw, Roof Side Trim Garnish
62493 Cover, Rear Room Lamp Opening
62511 Board, Quarter Inside Trim, RH
62511E Pocket, Quarter Trim
62512 Board, Quarter Inside Trim, LH
62565 Garnish, Rear Seat Side, RH
62566 Garnish, Rear Seat Side, LH
62581 Retainer, Quarter Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
