Toyota Tercel
1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe
Discontinued model
Data version 1982-04

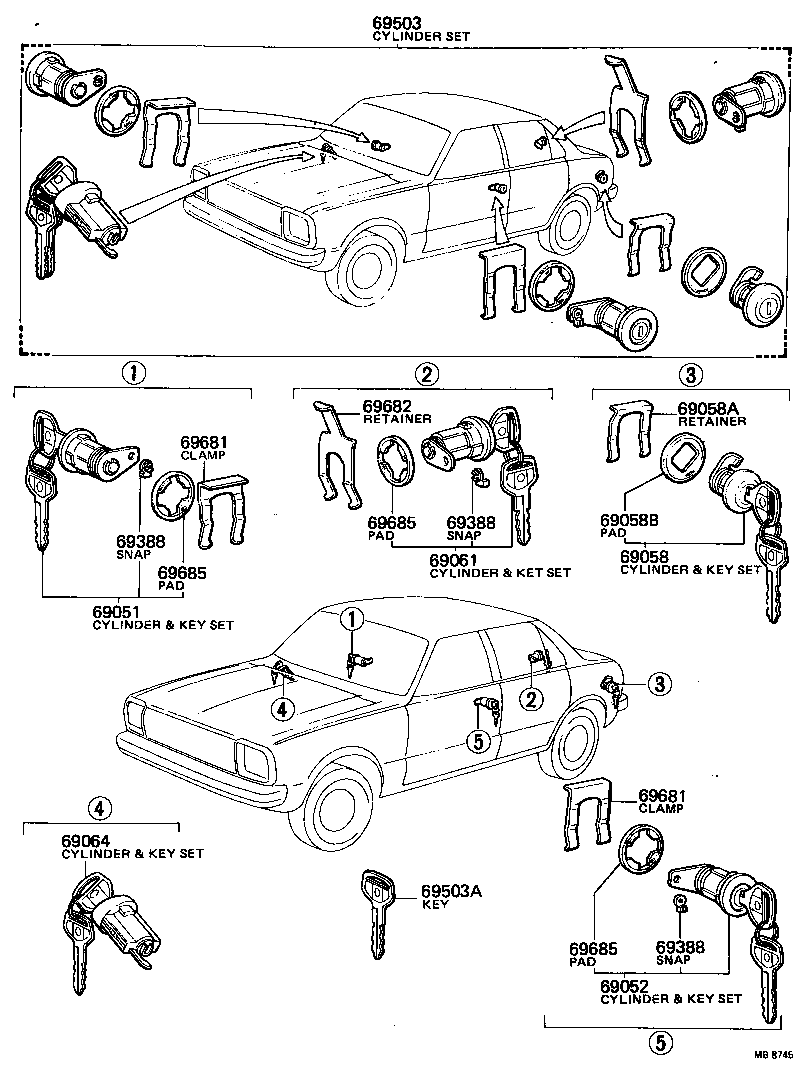

Lock Cylinder Set
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69058A | Retainer, Fuel Filler Lid Cylinder |
| 69058B | Pad, Fuel Filler Lid Cylinder |
| 69061 | Cylinder & Key Set, Luggage Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69388 | Snap, Rod(FOR DOOR LOCK) |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69565 | Funnel, Lock Cylinder |
| 69565A | Hose(FOR BACK DOOR LOCK CYLINDER) |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69682 | Retainer, Lock Cylinder |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
