Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

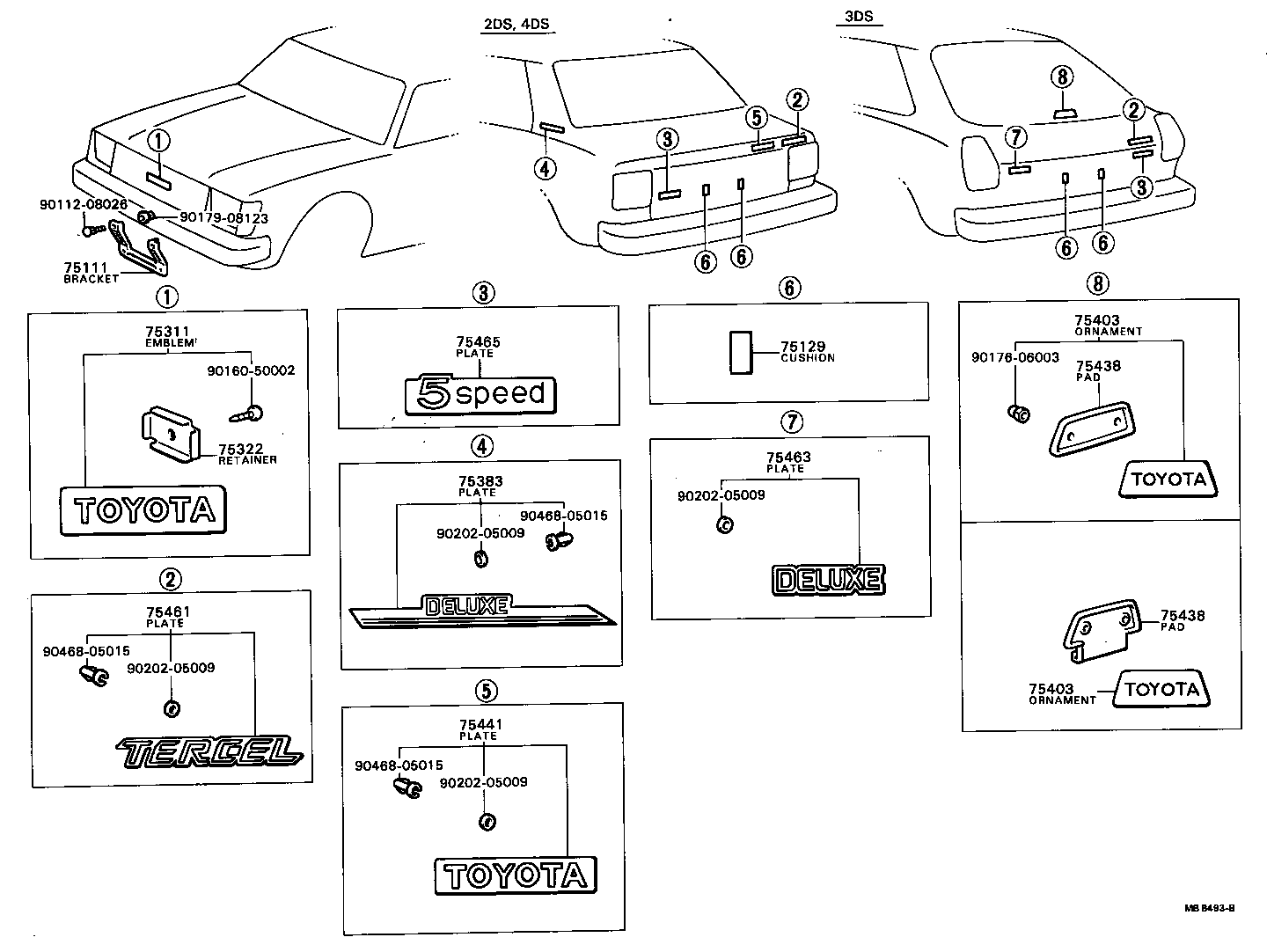

Figure MB8753F MB8753F 1979-01 → 1980-08 Figure MBB493B MBB493B 1980-08 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75129 Cushion, Rear License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75322 Retainer, Radiator Grille Name Plate
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75403 Ornament Sub-assy, Back Door
75438 Pad, Back Door Ornament
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
