Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 2 illustrations

Illustrations

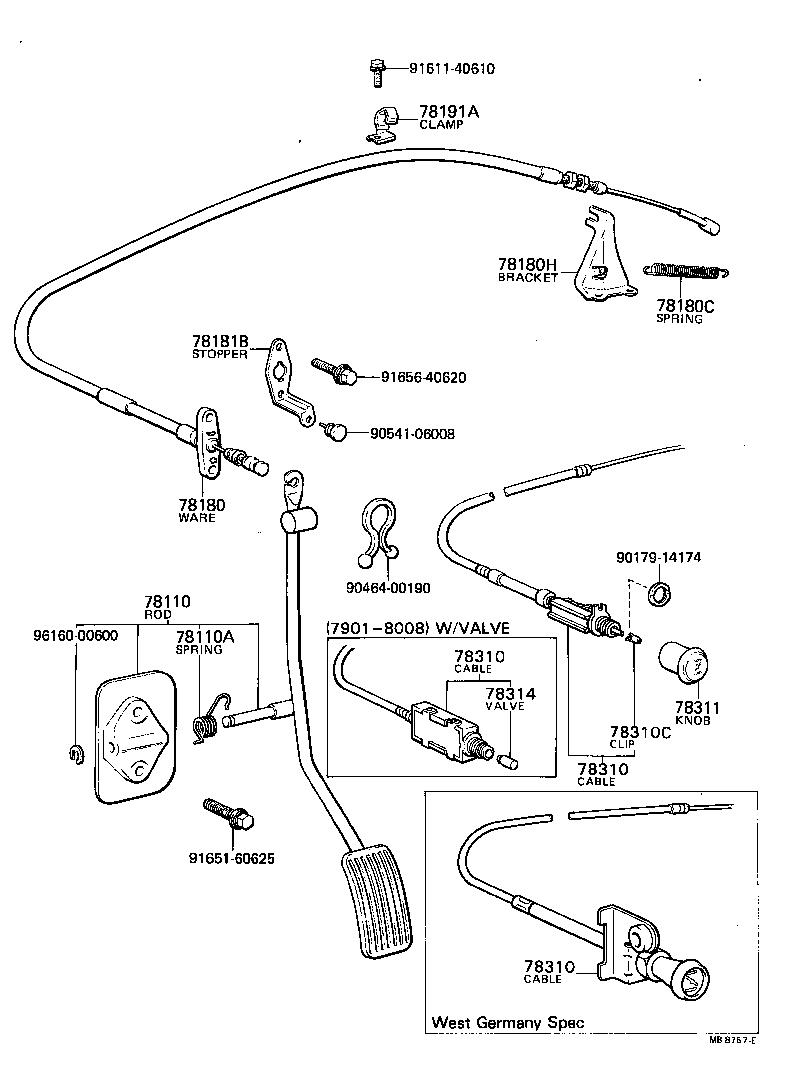

Figure MB8756D MB8756D 1979-01 → — Figure MB8757E MB8757E 1979-01 → —

Part groups

PNCDescription
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78180 Wire Assy, Accelerator
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78180H Bracket, Accelerator Control Cable
78181B Stopper, Accelerator Idle Adjusting
78187 Bracket, Accelerator Pull Back Spring
78191A Clamp (FOR ACCELERATOR WIRE SET)
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310C Clip (FOR CHOKE CABLE)
78311 Knob, Choke Control Cable
78314 Bulb, Choke Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
