Toyota Tercel
1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe
Discontinued model
Data version 1982-04
Wiring & Clamp
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |

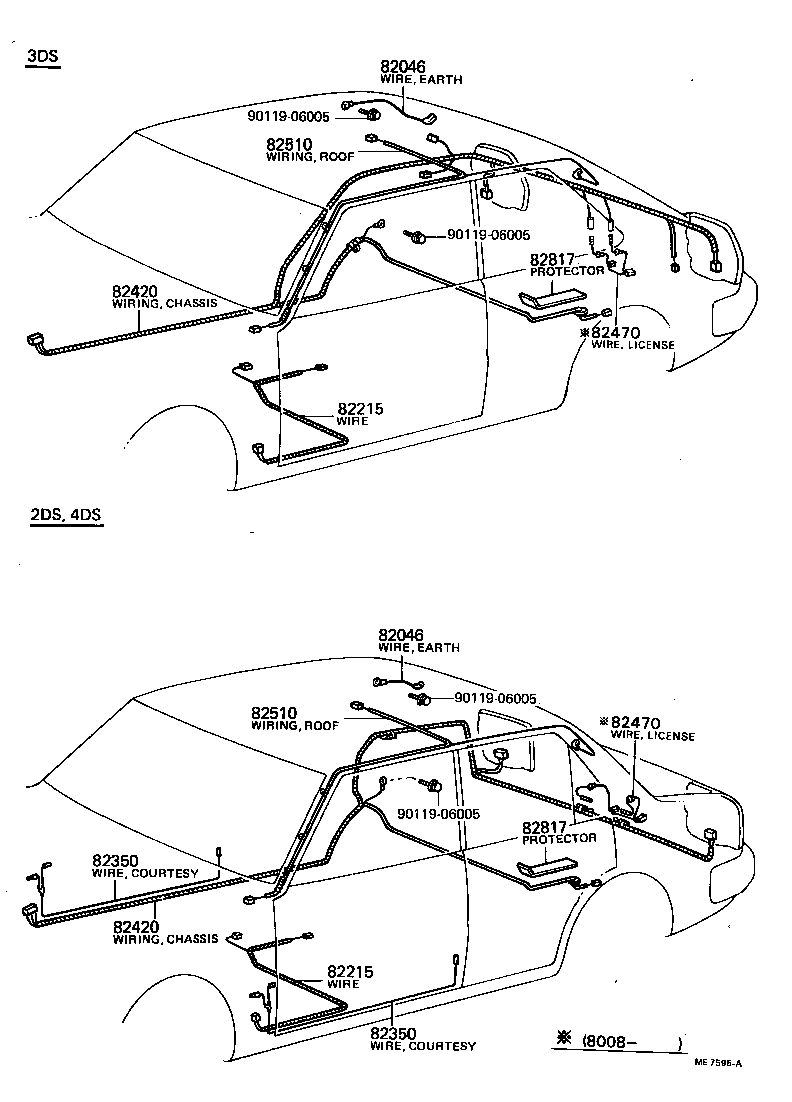

| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82050 | Wire Assy, Engine |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210A | Harness Assy, Wiring Cowl TO Headlamp, NO.2 |
| 82210C | Fusible Link |
| 82215 | Wire, Parking Brake Lamp Switch |
| 82219 | Wire, Thermo Sensor |
| 82220 | Harness Assy, Wiring Cowl |
| 82221 | Wire, Oil Pressure Switch |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82420 | Wiring Assy, Chassis |
| 82470 | Wire Assy, License Lamp Feed |
| 82510 | Wiring Assy, Roof |
| 82817 | Protector, Wiring Harness, NO.1 |

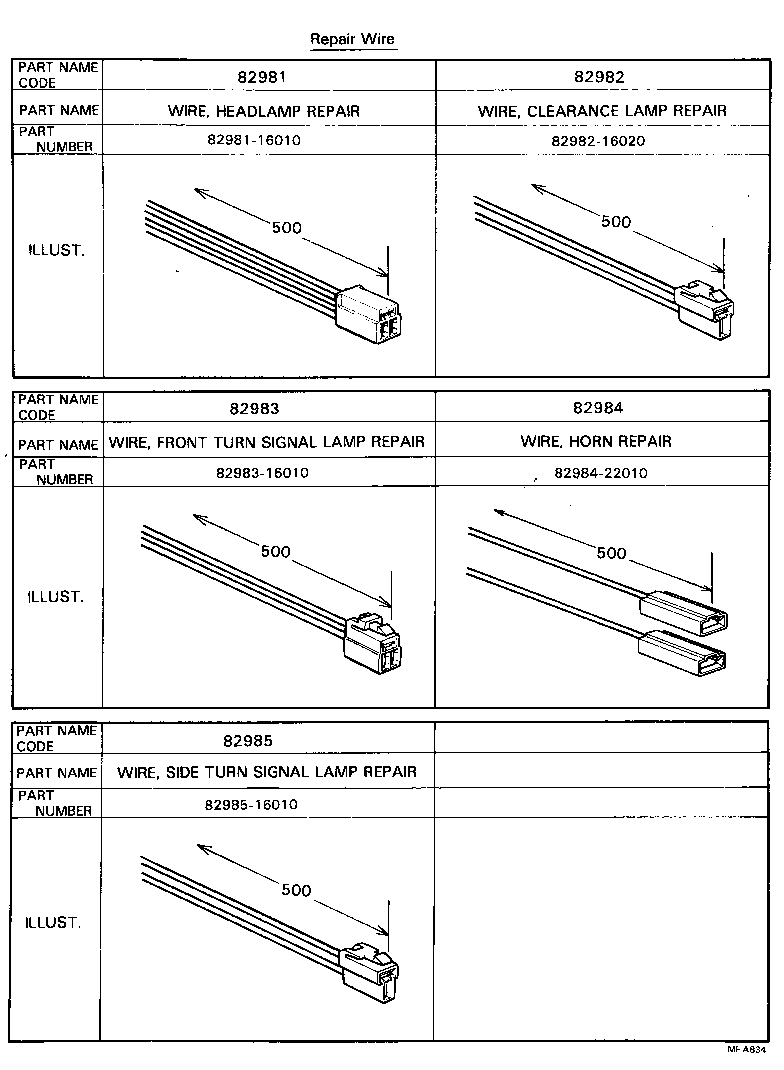

| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82985 | Wire, Side Turn Signal Lamp Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
