Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

11 part groups · 2 illustrations

Illustrations

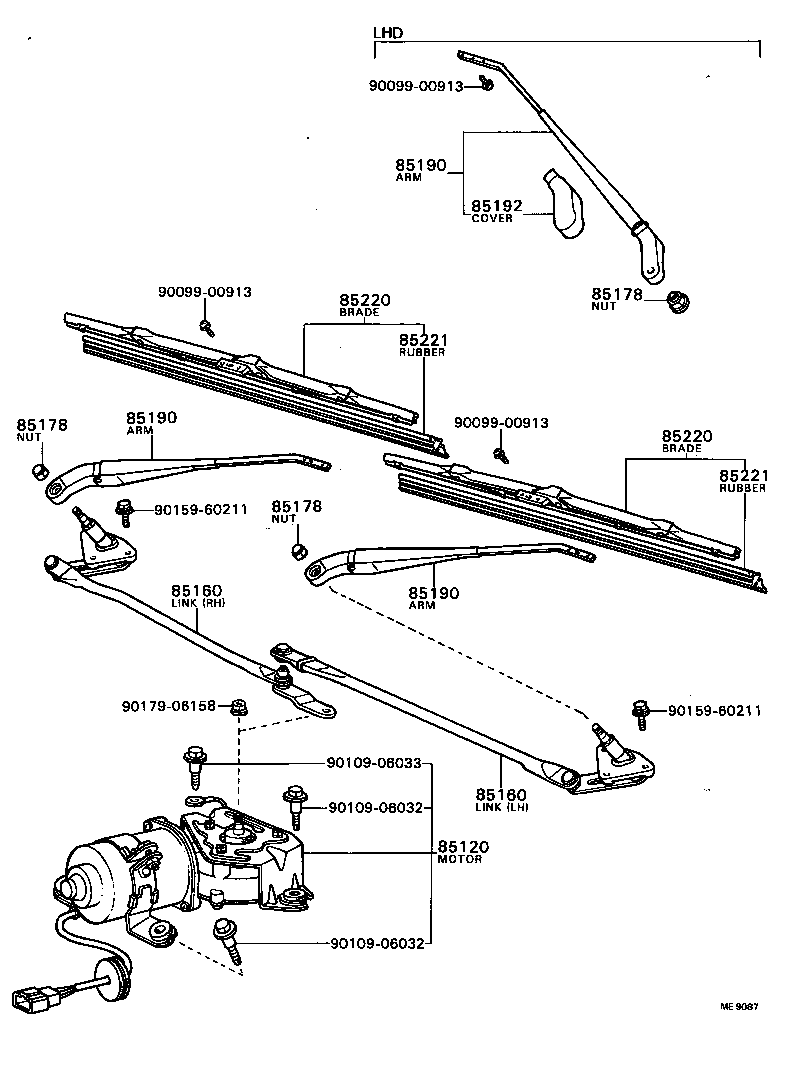

Figure ME7603C ME7603C 1979-01 → 1980-08 Figure ME9087 ME9087 1980-08 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85120 Motor And Bracket Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
