Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

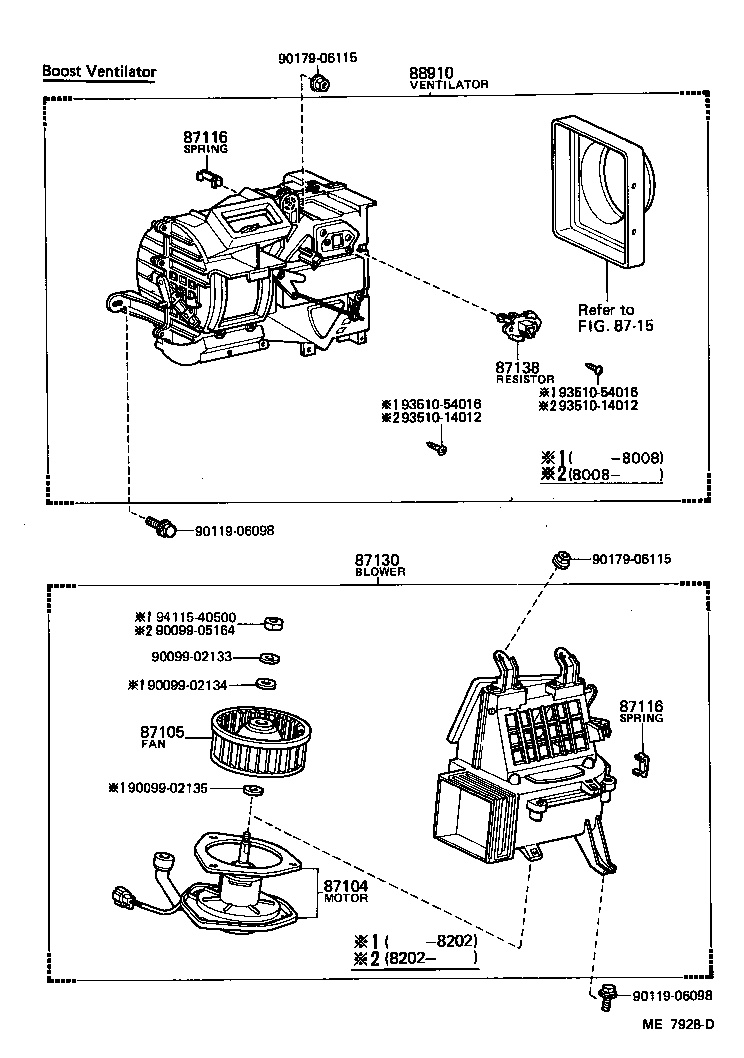

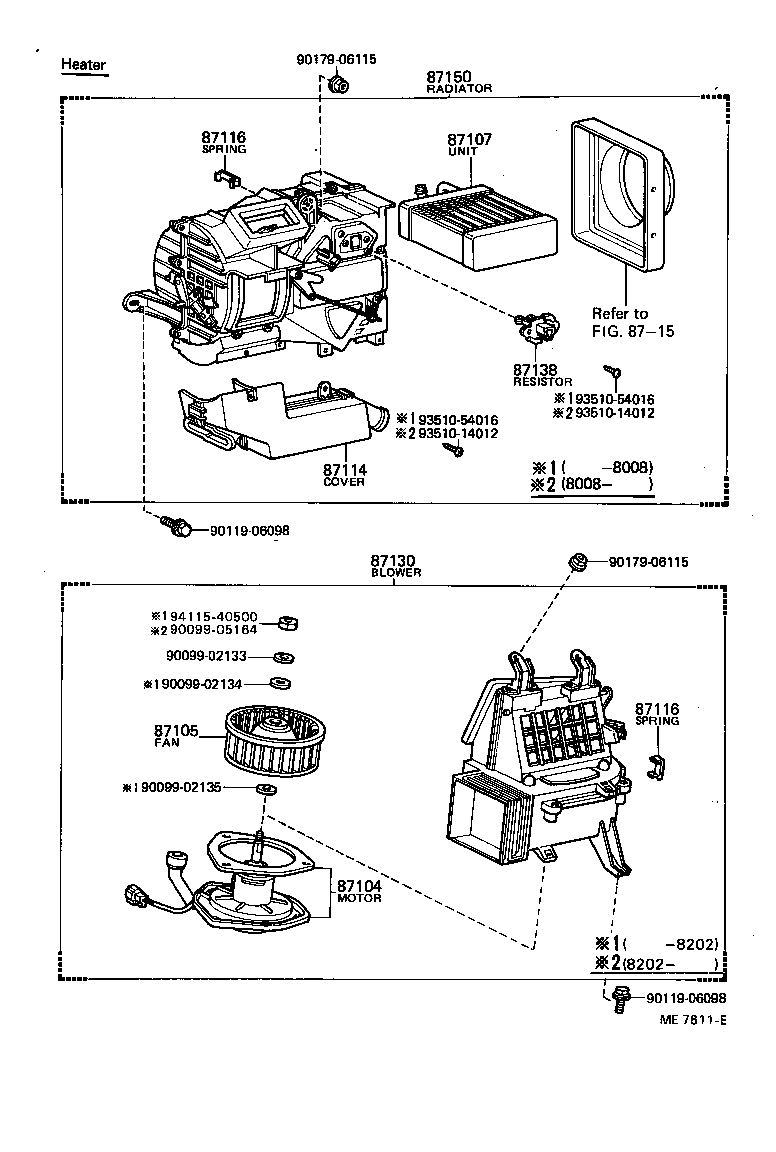

Figure ME7610B ME7610B 1979-01 → — Figure ME7611E ME7611E 1979-01 → — Figure ME7928D ME7928D 1979-01 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87114 Cover, Heater
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87230A Duct Assy, Heater Air
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
