Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · Europe

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 4 illustrations

Illustrations

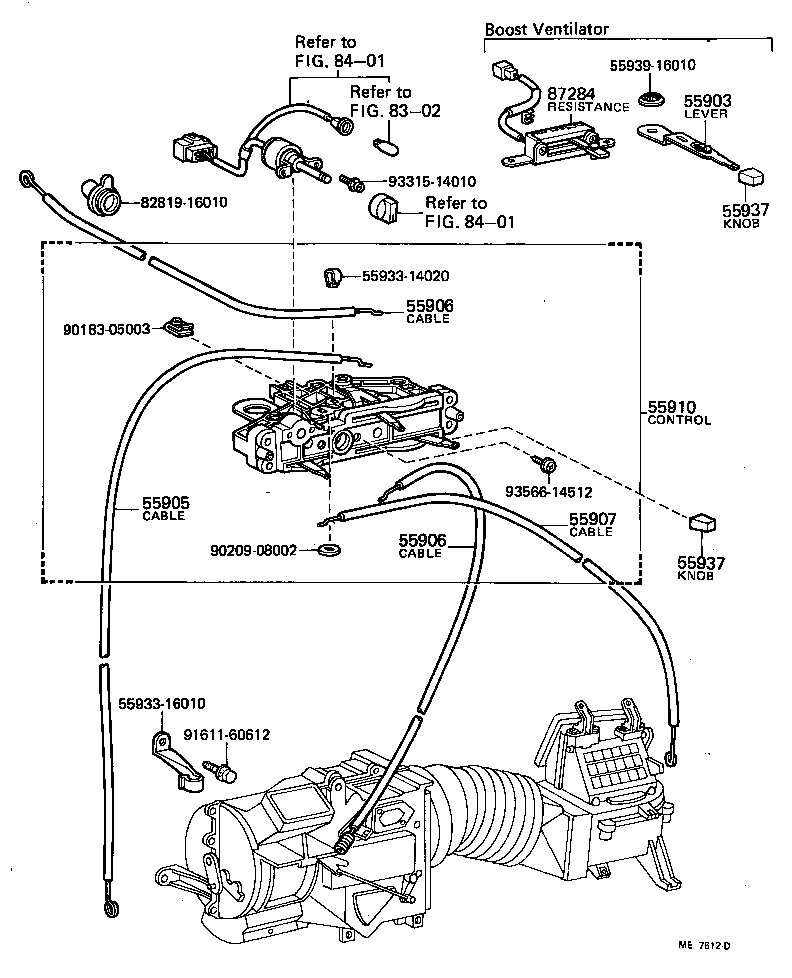

Figure ME7081B ME7081B 1979-01 → — Figure ME7612D ME7612D 1979-01 → — Figure ME7613B ME7613B 1979-01 → — Figure ME7614D ME7614D 1979-01 → —

Part groups

PNCDescription
55903 Lever Sub-assy, Heater Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55924 Retainer, Heater Control, Lower
55937 Knob, Heater Control Lever
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87226 Adapter, Air Duct
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
